8200-M585-O1 Rev D 210 Installation & Technical 107
LOCAL/REMOTE SETUP, CONT.

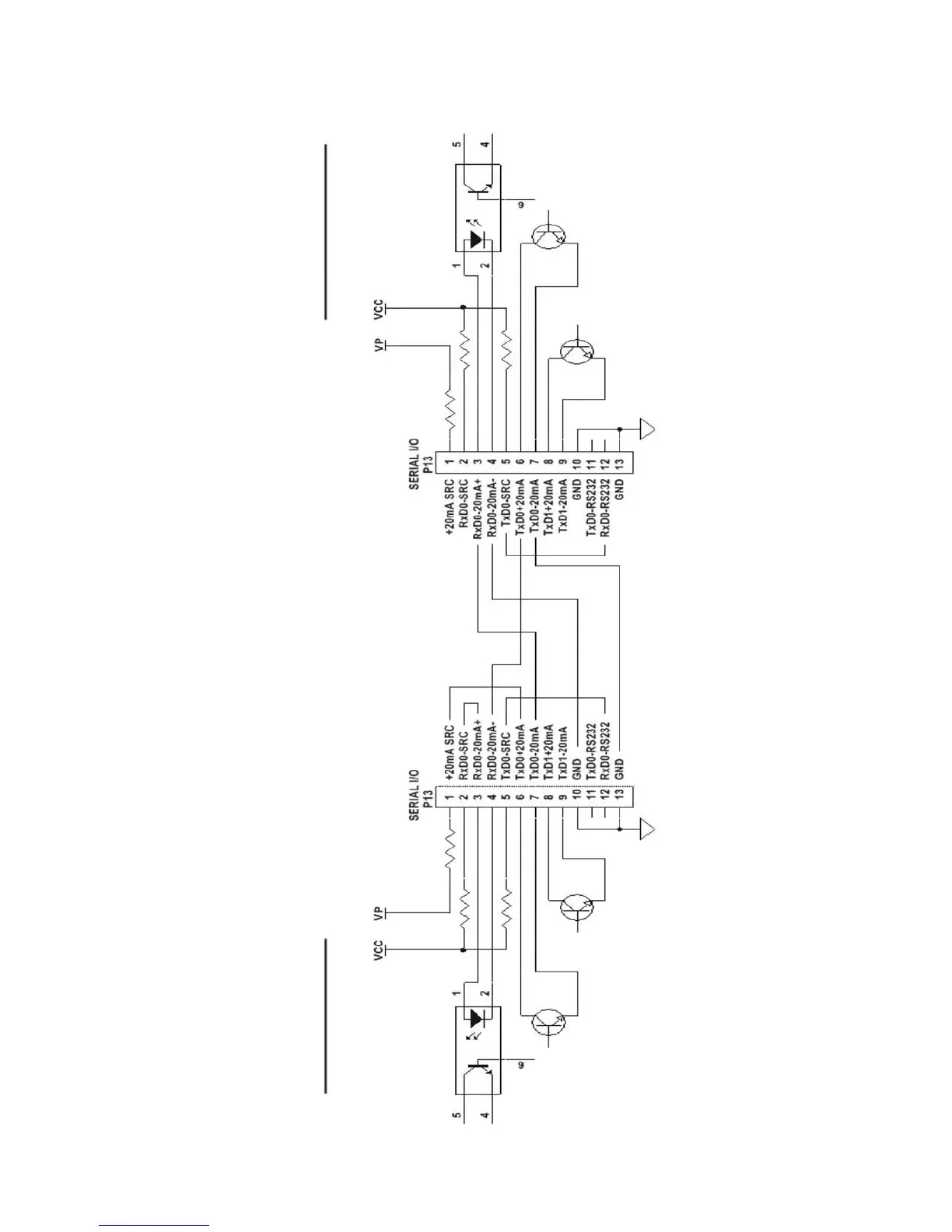

Local/Remote 210 20mA Current Loop Wiring
Figure No. 22
REMOTE 210 PASSIVE
LOCAL 210 ACTIVE
