8200-M585-O1 Rev D 210 Installation & Technical 21
KEYPAD FUNCTIONS
The Model 210 is equipped with a 22-key keypad. The keypad is used to enter commands
and data into the indicator. This section describes each key along with its normal function. It is
helpful to refer to the actual indicator while reading this section.

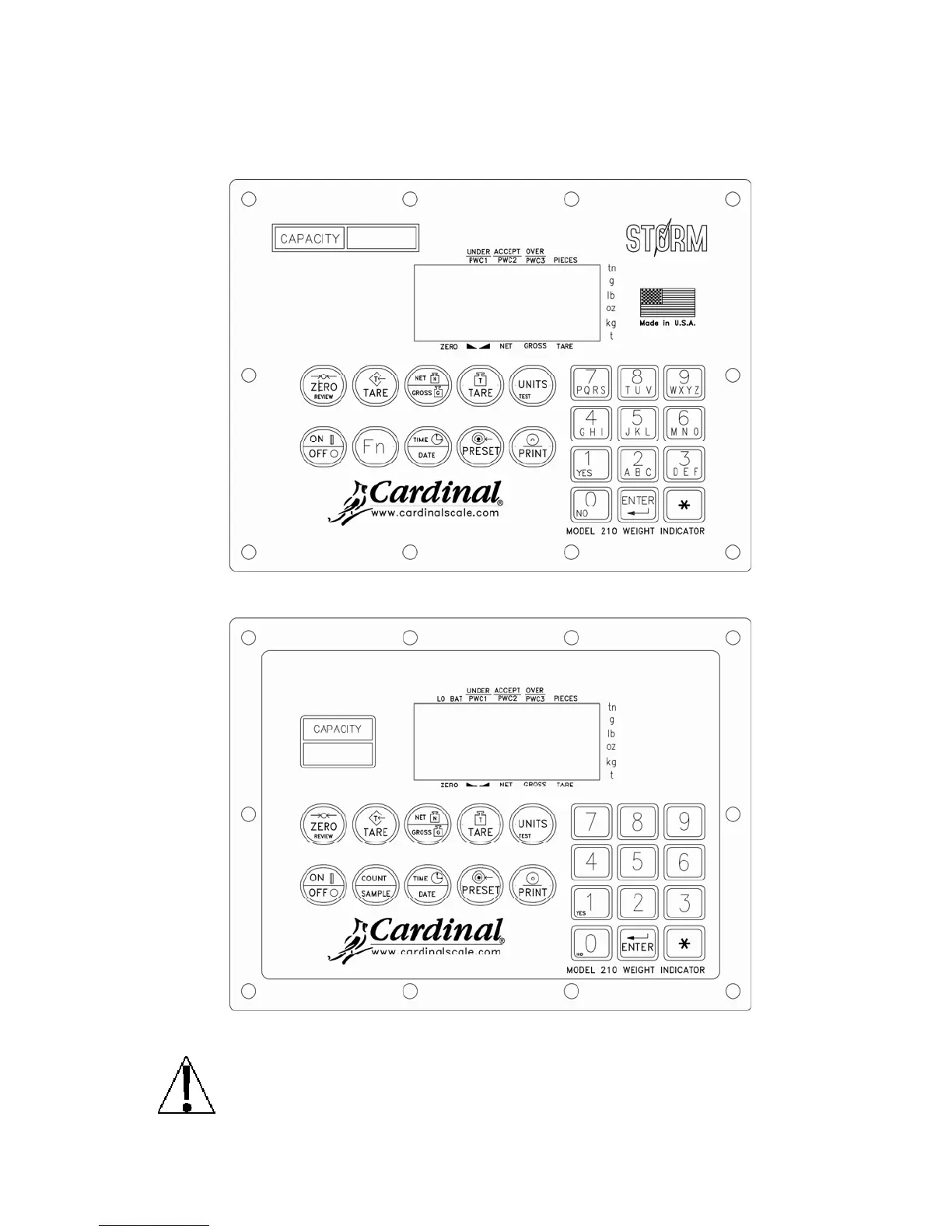

Figure No. 16 (Updated Keypad)
Figure No. 17 (Legacy Keypad)
DO NOT operate the keypad with pointed objects (pencils, pens, etc).
Damage to keypad resulting from this practice is NOT covered under warranty.
