8200-M585-O1 Rev D 210 Installation & Technical 99
AXLE WEIGHER MODE OPERATION
STANDARD AXLE WEIGHER
After placing the wheel load weighers on the ground in front of the vehicle(s) to be weighed,
the two weighers are connected together using the interconnection cable assembly. One
weigher (makes no difference which) is connected to the indicator using the indicator interface

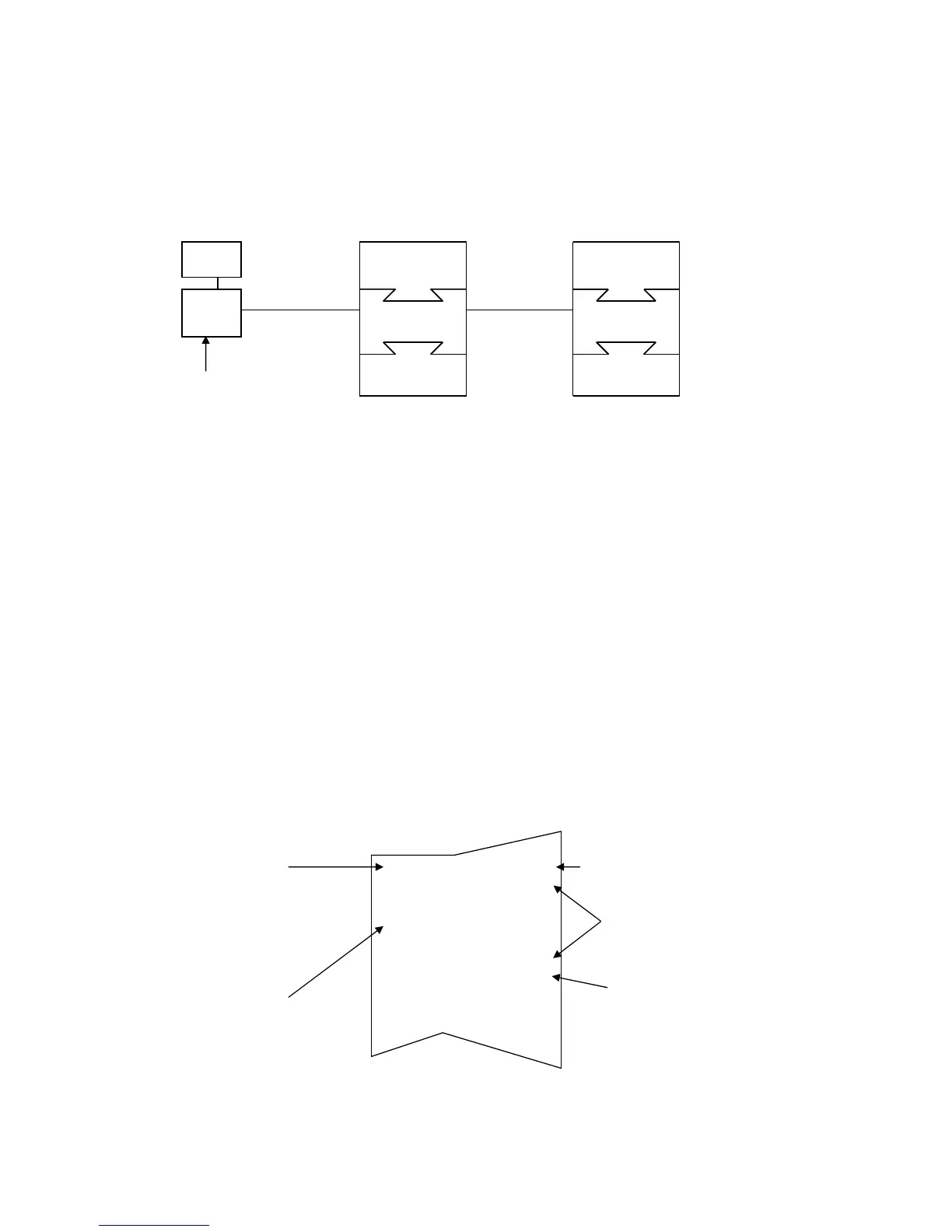

cable. The interconnection diagram is shown below:
Indicator Cable
Interface Cable
Wheel Load Wheel Load
Weigher Weigher
12 VDC Power
1. With power applied to the indicator, press the ON key to turn on the indicator.
2. Verify that the weight display is at zero ( 00 ). If not, press the ZERO key.
3. Have the vehicle driven forward until the first axle is on the center of the wheel load
weighers.
4. Observe the weight of the first axle and press the PRINT key to record the weight, date
and time.
5. Have the vehicle pull forward until the next axle is on the center of the wheel load
weighers. NOTE: If the next axle is a tandem or tridem set of axles, place ONLY the
first axle of the group on the wheel load weighers.
6. Observe the weight of this axle and press the PRINT key to record the weight, date and
time.
7. Repeat step 5 until all of the remaining axles have been weighed and printed.
8. After the last axle has been weighed and its value recorded, pull the vehicle off the
wheel load weighers.
9. Press the (asterisk) key and then press the PRINT key. The total of all of the vehicle
axle weights will be recorded and printed. The example below illustrates a typical print
ticket for a five-axle truck.
Time 13:47 09-26-12 Date
1 15440 lb
2 16320 lb
3 15980 lb Axle Weights
4 15880 lb
5 15700 lb
Total 79320 lb Total Vehicle
Weight
Axle Numbers
Weight
Indicator
Printer
