INSTALLATION, CONT.

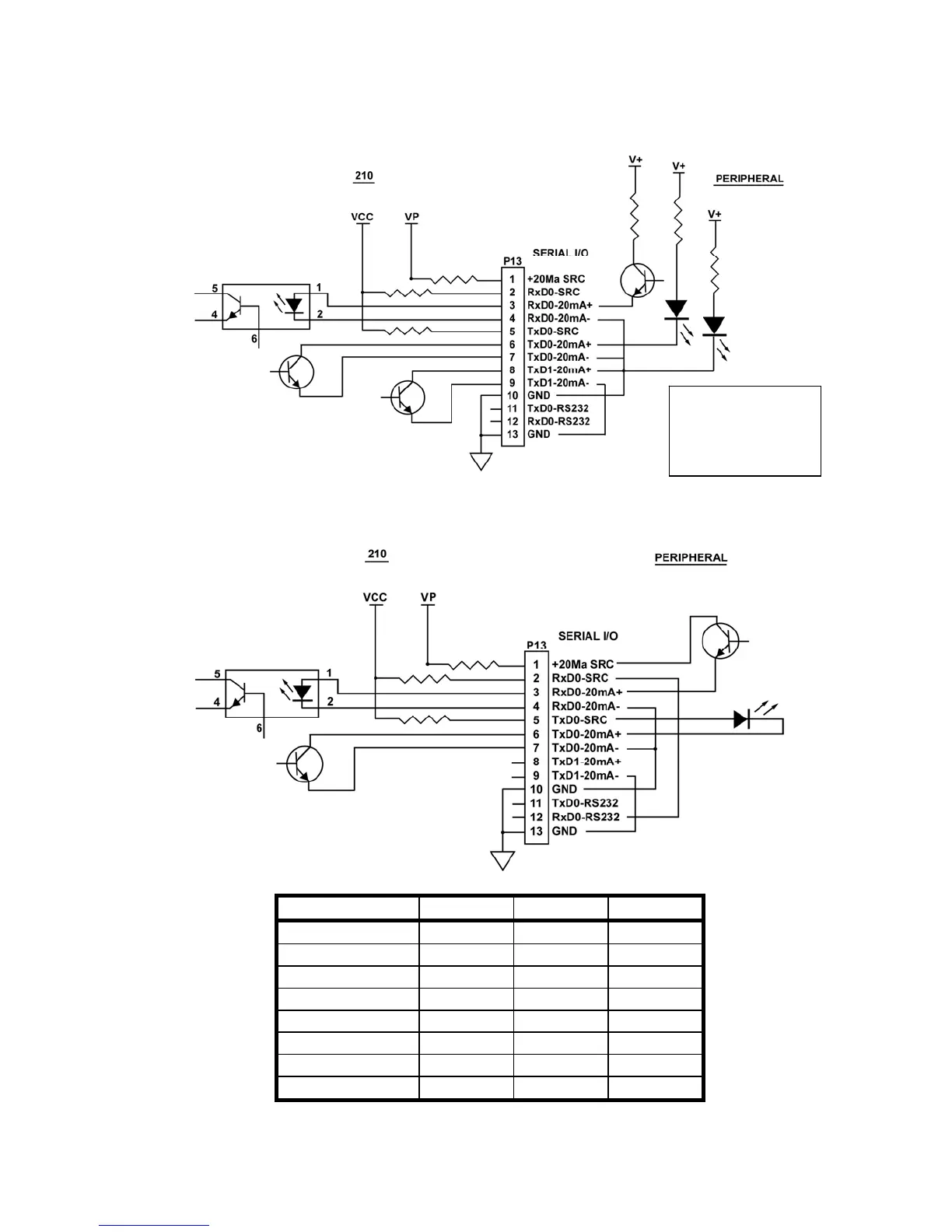

Interconnect Wiring for 20mA Current Loop Operation
Peripheral Device has ACTIVE END of Current Loop.
Interconnect Wiring for 20mA Current Loop Operation
Peripheral Device has PASSIVE END of Current Loop.
PORT RS-232 20mA USB
TXD0
X X
RXD0
X X
TXD1
X X
RXD1
X
TXD2 X
RXD2
X
TXD3
*X *X
RXD3
**X **X
* Mutually exclusive
** Mutually exclusive
Figure No. 7
IMPORTANT!
A jumper MUST be
installed between P13
terminals 5 & 12 to
enable RxD0-20mA.
Figure No. 8
