Carel pGD Touch - Schema 6: Terminale Impianto in Ethernet E Remoto in RS485; Schema 7: Più Terminali Impianto E 1 Terminale Remoto in RS485; Schema 8: Più Terminali Impianto in RS485 E Remoto in Ethernet

23
pGD Touch +030221540 rel. 1.1 - 21.01.2015
ITA

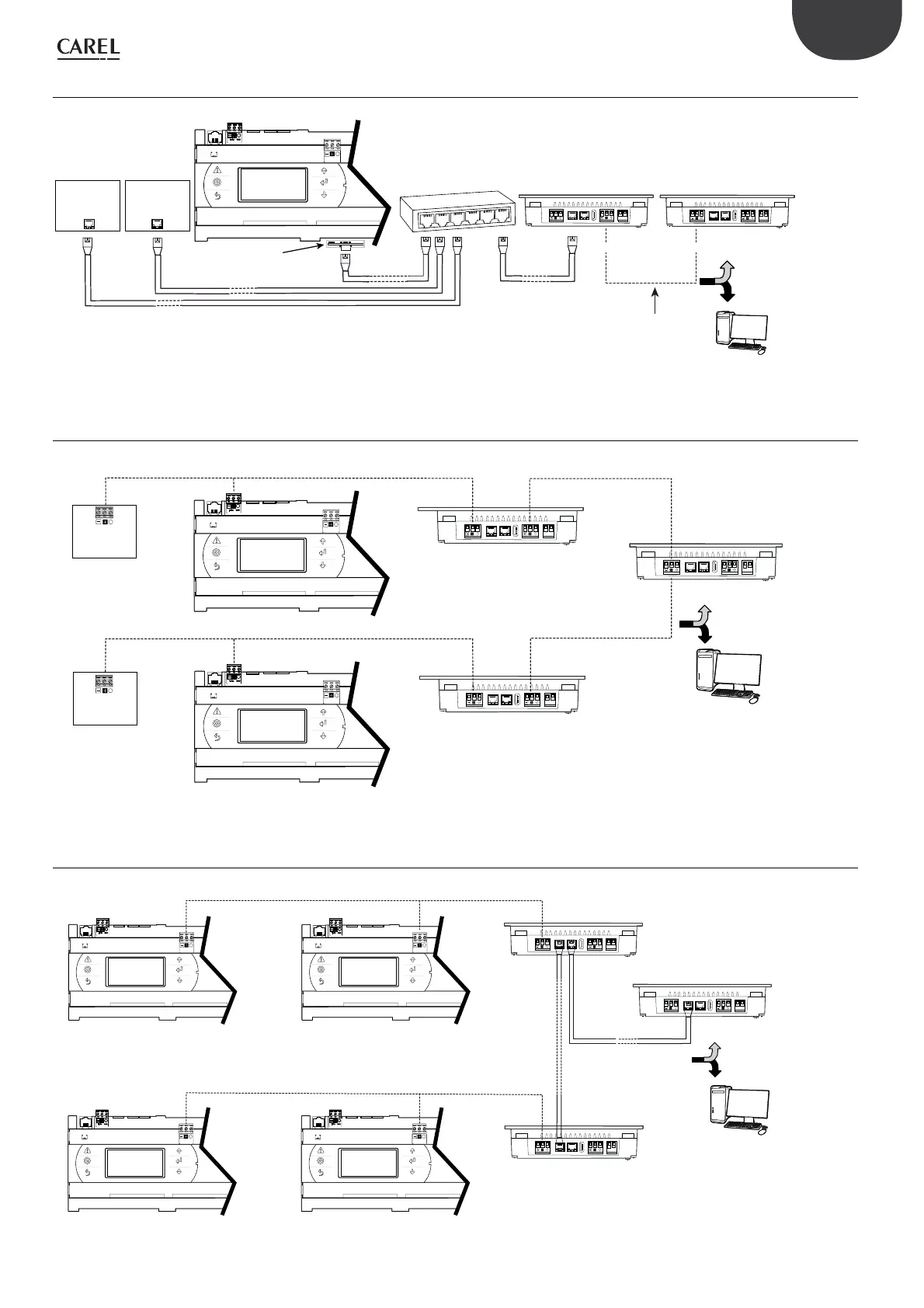

6.7 Schema 6: terminale impianto in Ethernet e remoto in RS485
PCO1000WB0
BACnet IP-pCOWeb
1
8
1
8
G
G0
1
8
1
8
G
G0
1
8
1
8
Switch
J10
FieldBus card
BMS card
J11 pLAN
J25 BMS2
1
Tx/Rx
GND
PlantVisorPro
connessioni in alternativa/
alternative connections
BACnet IP/ Modbus TCP/IP
Modbus RTU
AB
Dispositivo terze
parti / Third party
device
PGD Touch: 4,3”, 7” PGD Touch: 4,3”, 7”, 10, 13”
Dispositivo terze
parti / Third party
device
Fig. 6.g
6.8 Schema 7: più terminali impianto e 1 terminale remoto in RS485
1
8
1
8
G
G0
1
8
1
8
G
G0
PGD Touch: 7”, 10”, 13”
PGD Touch: 4,3”, 7”, 10”, 13”
1
8
1
8
G
G0
PGD Touch: 7”, 10”, 13”
J10
FieldBus card
BMS card
J11 pLAN
J25 BMS2
1
Tx/Rx
GND
J10
FieldBus card
BMS card
J11 pLAN
J25 BMS2
1
Tx/Rx
GND
PlantVisorPro
connessioni in alternativa/
alternative connections
NOTA: max 2 terminali con porta con hardware master per rete RS485/
NOTE: max 2 terminals with port with master hardware for RS485 network
Modbus RTU
Modbus RTU
Modbus RTU
Modbus RTU
A
B
C
Dispositivo terze
parti / Third party
device
Dispositivo terze
parti / Third party
device
Fig. 6.h
6.9 Schema 8: più terminali impianto in RS485 e remoto in Ethernet
1
8
1
8
G
G0
PGD Touch: 4,3”, 7”
1
8
1
8
G
G0
1
8
1
8
G
G0
PGD Touch: 4,3”, 7”, 10”, 13”
PGD Touch: 4,3”, 7”, 10”, 13”
J10
FieldBus card
BMS card
J11 pLAN
J25 BMS2
1
Tx/Rx
GND
J10
FieldBus card
BMS card
J11 pLAN
J25 BMS2
1
Tx/Rx
GND
J10
FieldBus card
BMS card
J11 pLAN
J25 BMS2
1
Tx/Rx
GND
J10
FieldBus card
BMS card
J11 pLAN
J25 BMS2
1
Tx/Rx
GND
Modbus TCP/IP or
BACnet/IP
Modbus TCP/IP
Modbus RTU
Modbus RTU
A
B
C
PlantVisorPro
(Only Modbus)
connessioni in alternativa/
alternative connections
Fig. 6.i
