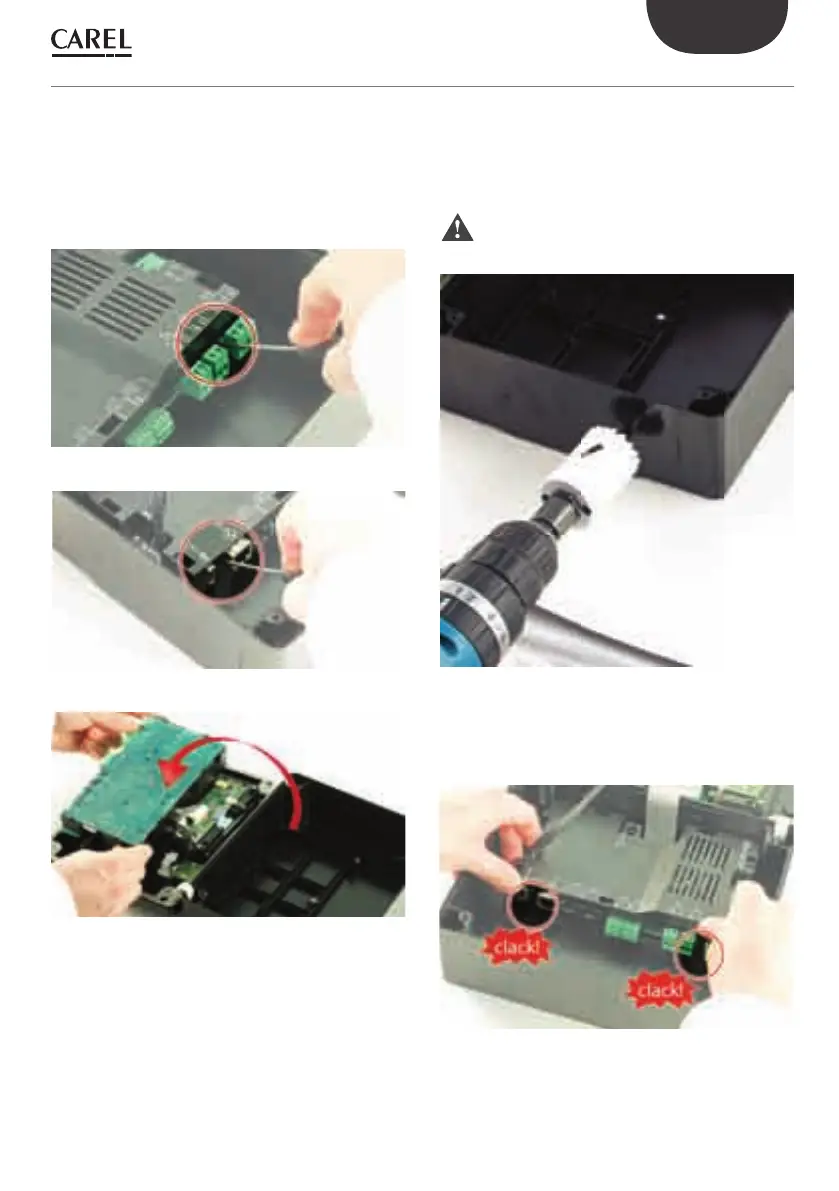

Remove the board using a fl at-head screwdriver,
levering the two tabs (3a and 3b) on the grill that
secures it in place; then fully place the board on the
front part of PlantWatchPRO (3.c).
3a
3b
3c
Now drill the plastic frame of PlantWatchPRO to make
the opening for the connection cables, holding it
fi rmly by hand, as shown in the fi gure.
Warning: drill PlantWatchPRO using a step bit
with a maximum diameter of 32 mm.
Then place the board in position and press until the
locking tabs on the grill click into place.
4. ASSEMBLY PROCEDURE
