5.33 BARRA OSCILLANTE
ATTENZIONE: per un utilizzo su strade
pubbliche la barra oscillante deve essere
bloccata in posizione centrale.
AVVISO: la barra di traino deve essere
regolata in modo corretto per permettere di
trainare l’attrezzo.
5.33 DRAWBAR
CAUTION: Drawbar must be locked to
central position for use on public roads.

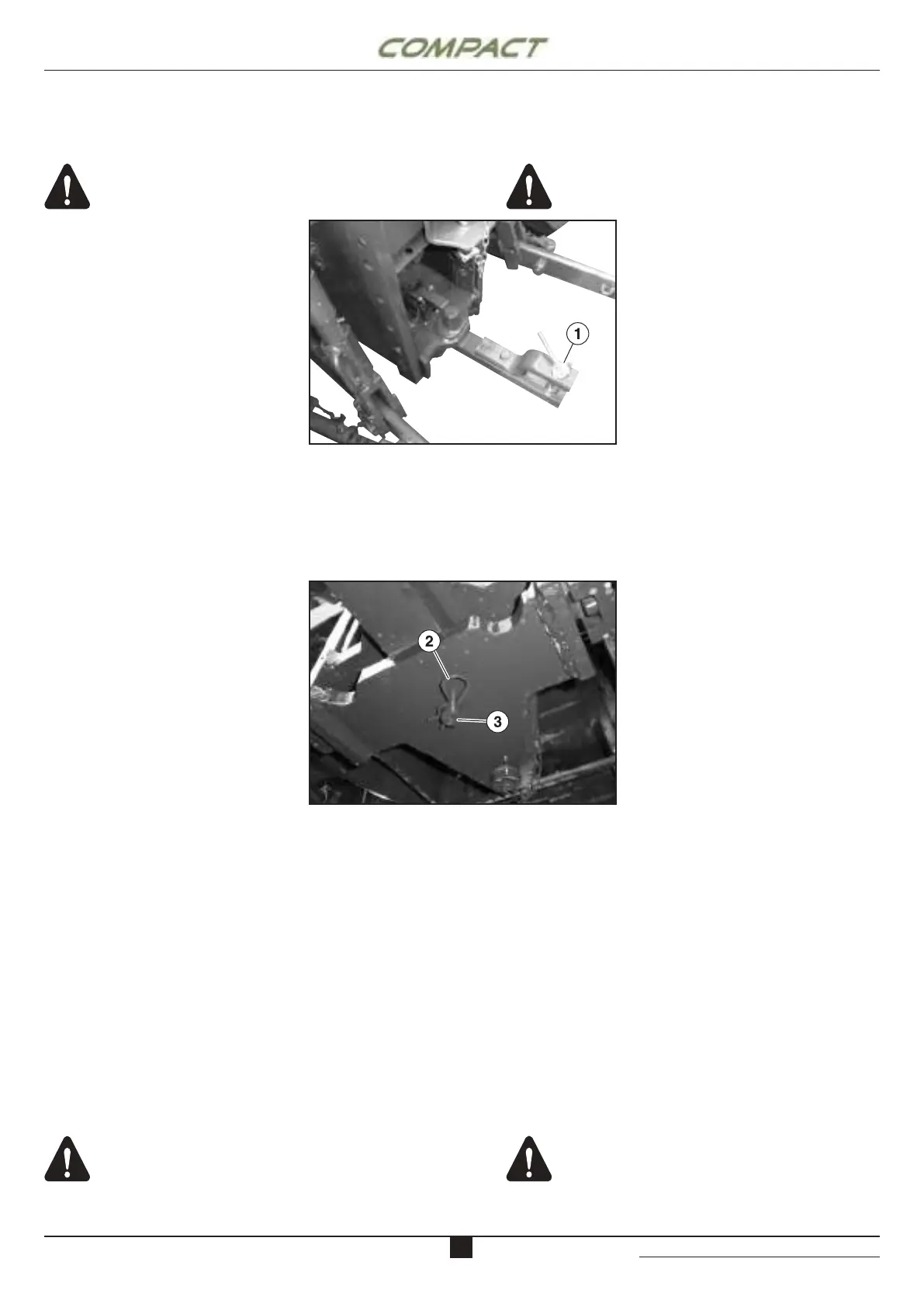

The tractor features a drawbar that can stand a vertical
load (1). To exploit maximum traction and eciency, the
drawbar must be set at the centre, in the short position.
Maximum static vertical loads and drawbar allowed
load are indicated below.
Drawbar (1) stroke can be shifted to the right-hand
side, left-hand side or free to move.
To set drawbar (1):
- remove clip (2).
- remove shaft (3).
- set drawbar (1) to the desired position:
- t shaft (3).
- t clip (2).
To leave drawbar (1) free to move:
- remove clip (2).
- remove shaft (3).
Keep shaft and clip if you do not use them.
WARNING: The drawbar must be correctly
set to allow towing of implement.
