5
revision 0 date: 07/19 doc. AG525990

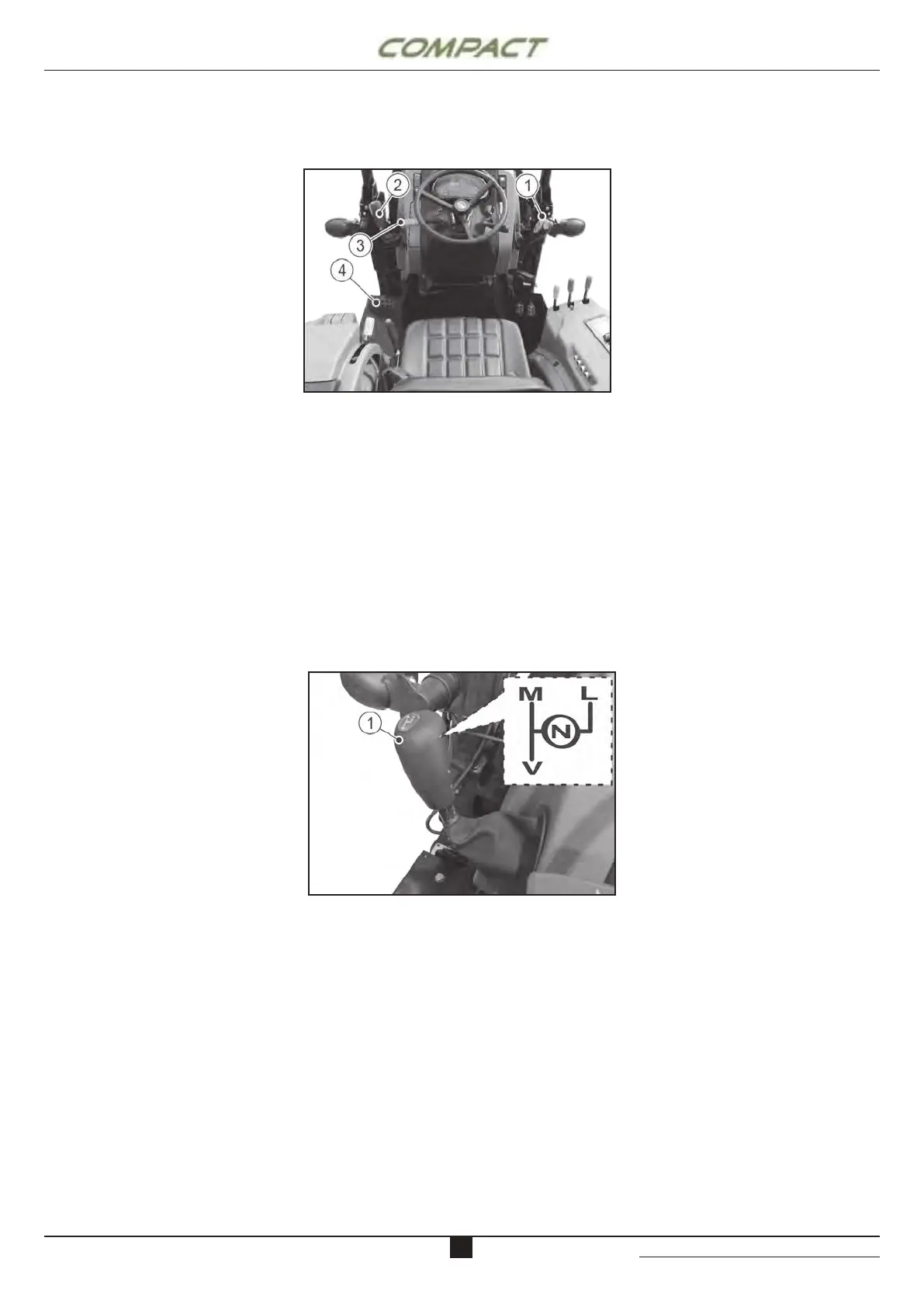

Gear selection is actuated through lever (1) located on
the right-hand side of driver's position.
Before moving the range shift lever (2) and travel
direction lever (3), press clutch pedal (4) and stop
tractor. To prevent any transmission damage, do not
change range when tractor is moving.
Before moving the gear shift lever (1), press clutch
pedal (4). Gears can be selected with tractor moving.
(N)
(L)
(M)
(V)
5.11 USO DELLA LEVA GAMME
Range selection through lever (1) shall be carried out
with the tractor at a standstill. For this purpose, press
the clutch pedal, select desired range then gradually
release clutch pedal to progressively apply load without
creating any problem. Range shift lever (1) provides
four positions:
(N) = neutral
(L) = slow
(M) = medium
(V) = fast
5.11 USING THE RANGE SHIFT LEVER
5.10 USO DELLA LEVA MARCE 5.10 USING THE GEAR SHIFT LEVER
