CARRARO COMPACT Vigneto - 4.1 Controls and instruments


4

revision 0 date: 07/19 doc. AG525990
 

 
 
 
 
 
 
 
 

 













󰀨


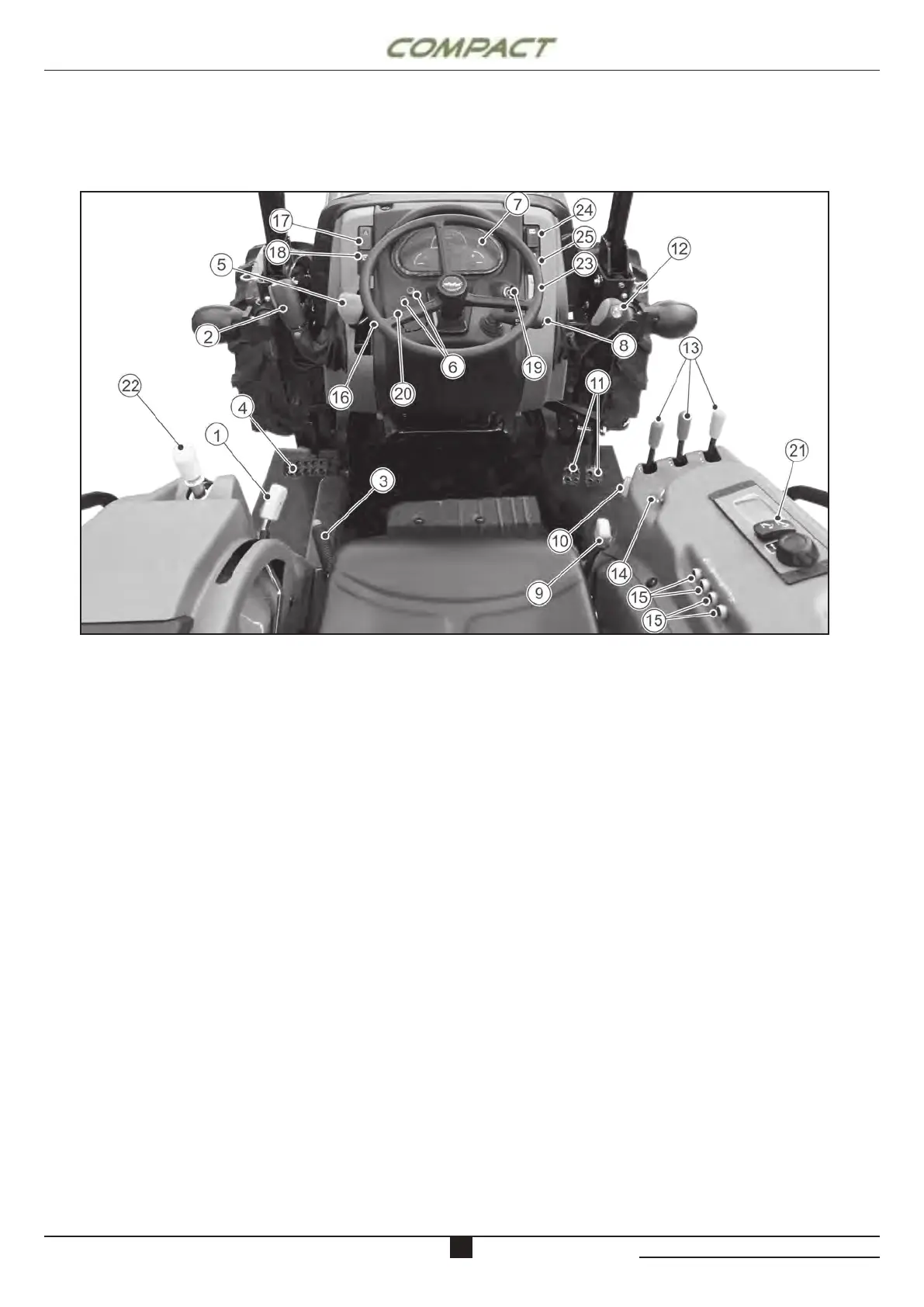

1. PTO mode selector lever (Indipendent or Ground
Speed)
2. Range shift lever
3. Parking brake lever
4. Clutch pedal
5. Mechanical reverser lever
6. Programming switches
7. Instrument panel
8. Multifunctional lever (horn/lights control)
9. Mechanical HI-LO lever
10. Foot Throttle
11. Brake pedals
12. Gear shift lever
13. Hydraulic distributors control levers
14. Hand throttle control
15. Cruise control setting switches
16. Steering wheel
17. Hazard light switch
18. Beacon light switch
19. Ignition key switch
20. Trailer brake valve switch (optional)
21. Electronic lift control
22. Rear PTO engagement control (mechanical
version)
23. Front PTO engagement switch (optional)
24. Dierential locking switch
25. 4-wheel drive switch
4.1 COMANDI E STRUMENTI
Versione Meccanica
4.1 CONTROLS AND INSTRUMENTS
Mechanical version
