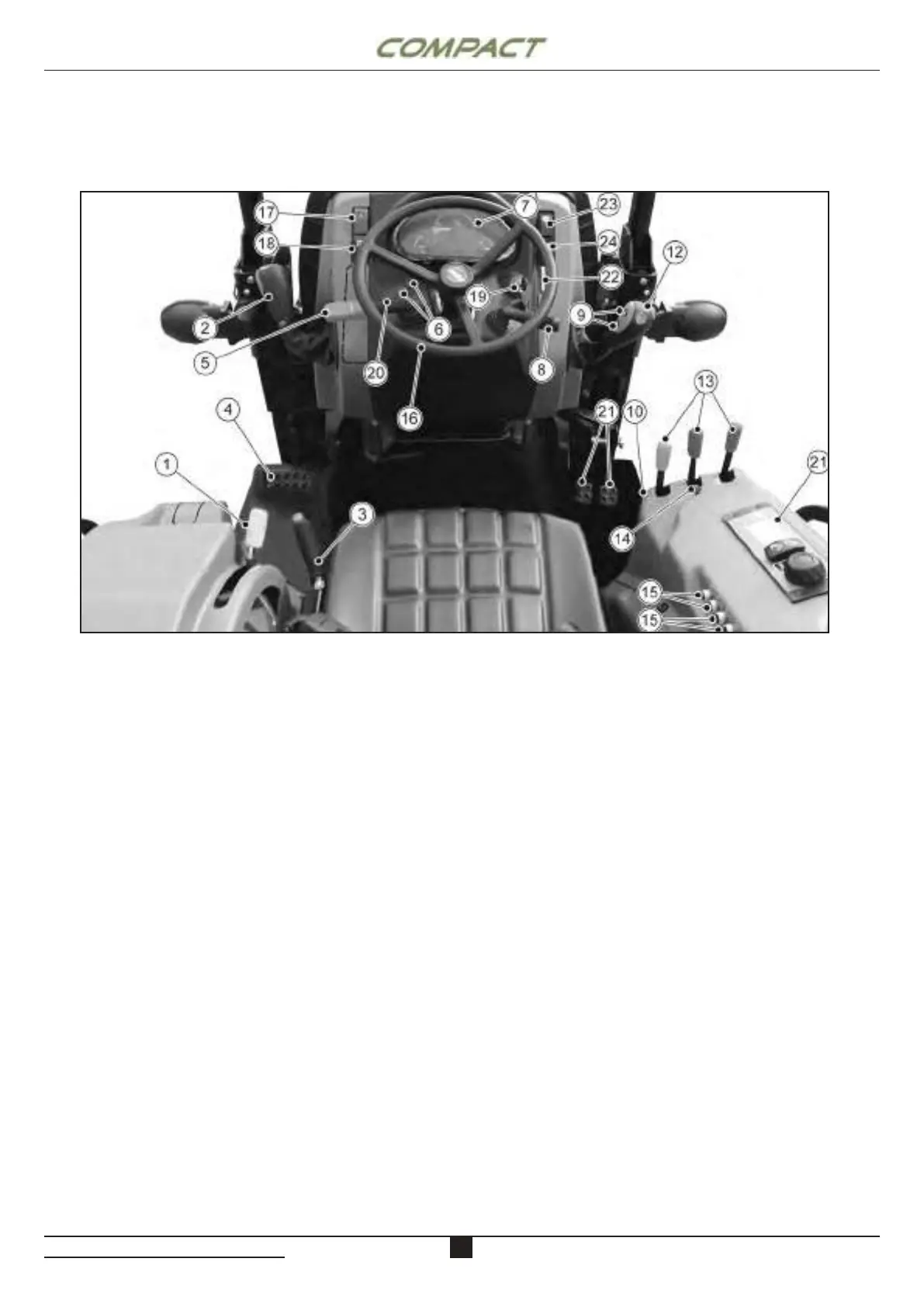

1. PTO mode selector lever (Indipendent or Ground
Speed)
2. Range shift lever
3. Parking brake lever
4. Clutch pedal
5. Hydraulic reverser lever (Power Reverser version)
6. Programming switches
7. Instrument panel
8. Multifunctional lever (horn/lights control)
9. HI-LO control buttons
10. Foot Throttle
11. Brake pedals
12. Gear shift lever
13. Hydraulic distributors control levers
14. Hand throttle control
15. Cruise control setting switches
16. Steering wheel
17. Hazard light switch
18. Beacon light switch
19. Ignition key switch
20. Trailer brake valve switch (optional)
21. Electronic lift control
22. Front PTO engagement switch (optional)
24. Dierential locking switch
25. 4-wheel drive switch
