CARRARO COMPACT Vigneto - Innesto Della Presa DI Forza





5
revision 0 date: 07/19 doc. AG525990
         
         
         
     



A
B

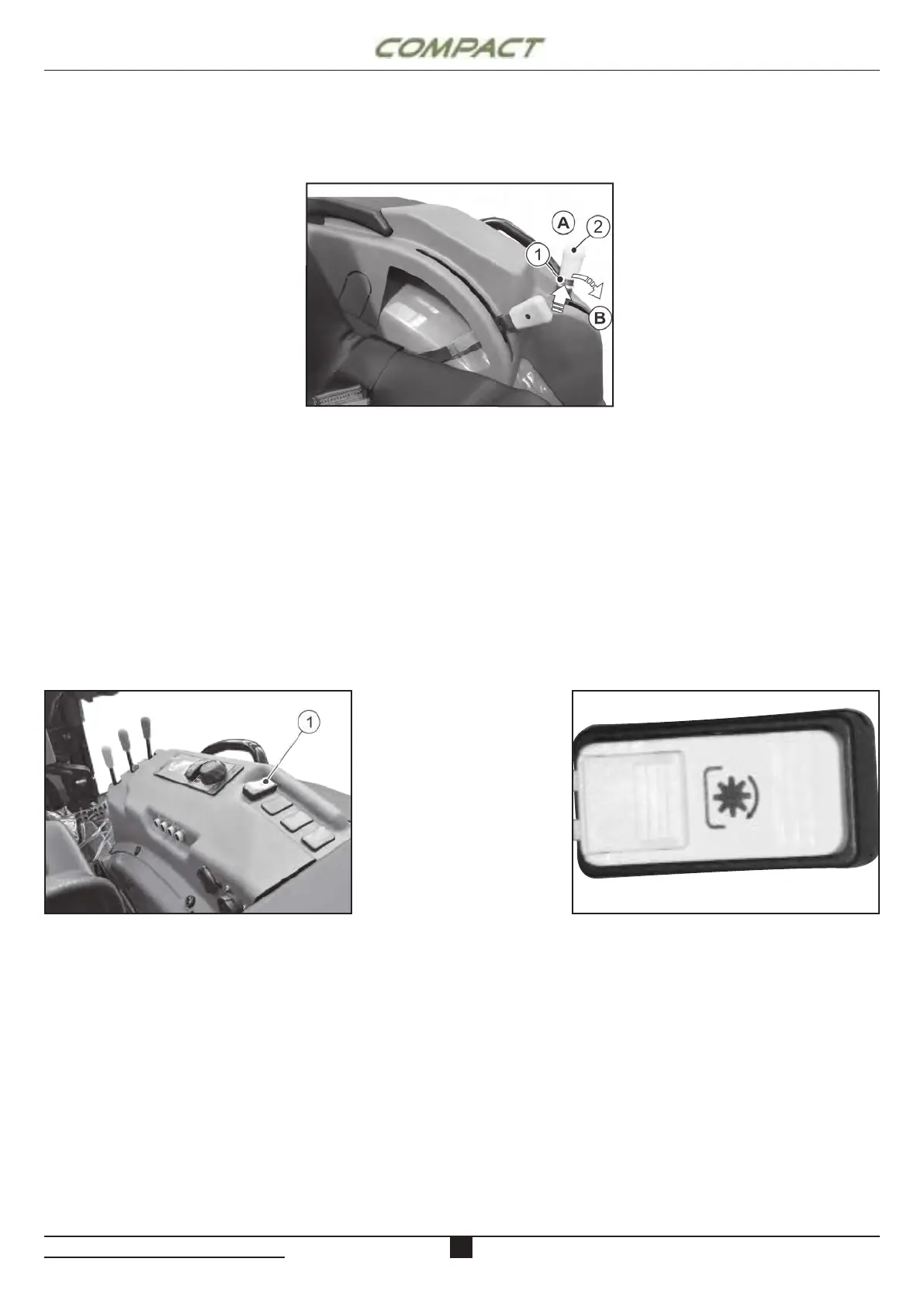

With engine at idle speed, pull collar (1) at the base
of knob (2) to release the power take-o engagement
lever. Move lever (2) forward to engage the power take-
o. Release collar (1).
Pull lever (2) back to disengage the power take-o.
Position A = PTO disengaged
Position B = PTO engaged
Innesto della presa di forza a comando meccanico Mechanical control power take-o engagement





Electrohydraulic engagement of the power takeo is
obtained through button (1).
To engage the power take-o, with engine at idle speed,
push button (1). To disengage the power take-o, push
button (1).
Innesto della presa di forza a comando
elettroidraulico
Electrohydraulic control power take-o
engagement
5.18 INNESTO DELLA PRESA DI FORZA 5.18 POWER TAKE-OFF ENGAGEMENT
