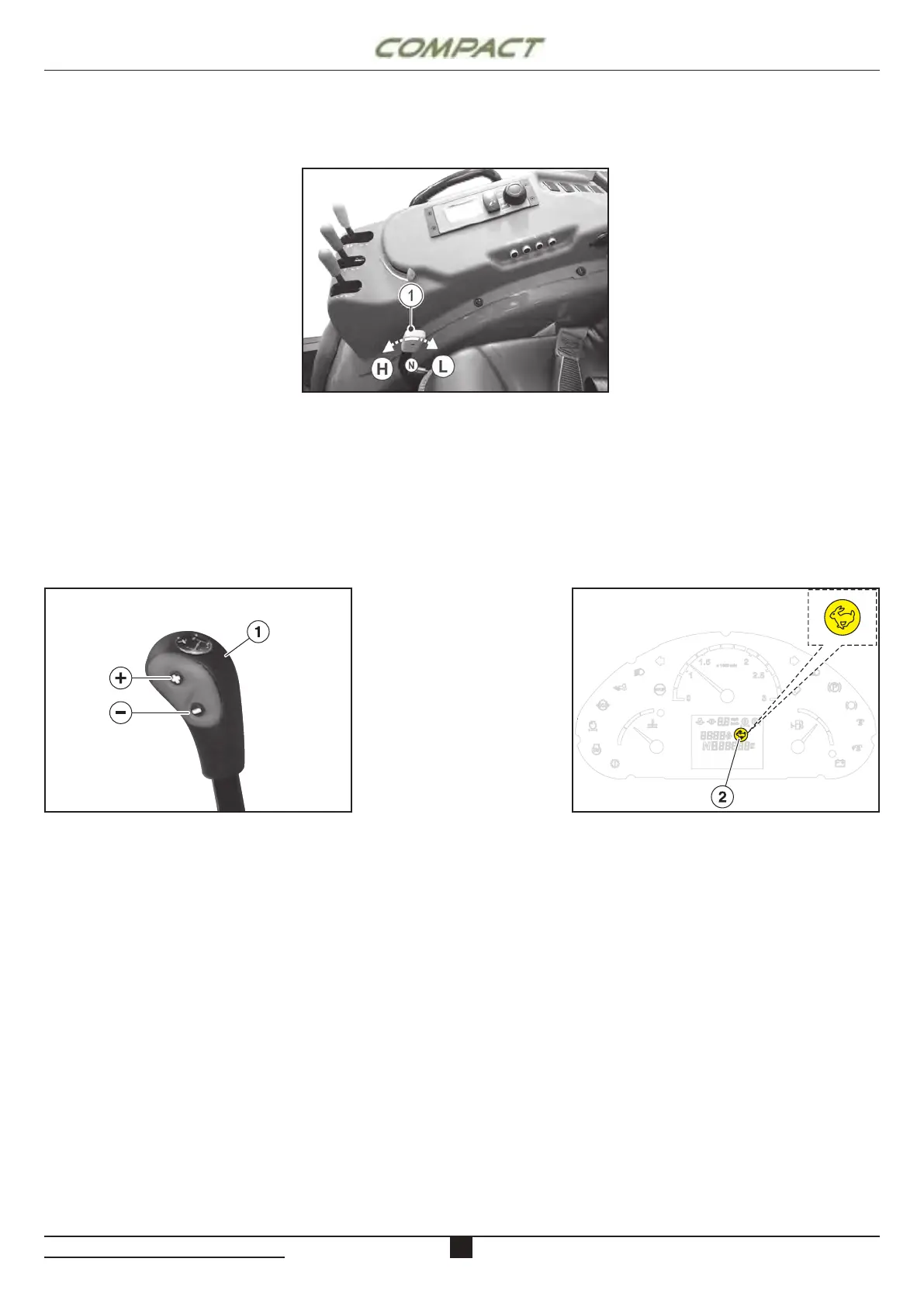

The lever controlling the mechanical
HI-LO (1) oers two more range
speeds. Its main function is to
decrease or increase travel speed
during operation or transport. Before
moving the mechanical hi-lo control
shift lever (1), press clutch pedal.
The mechanical HI-LO control could
be shifted when tractor is moving.
Then gradually release the clutch
pedal to apply load without problem.
The mechanical HI-LO control
lever provides three positions:
(N) = neutral
(H) = fast range (rabbit)
(L) = slow range (turtle)
5.13 USO DELLA LEVA DEL COMANDO HI-LO
IDRAULICO (SE PRESENTE)
The lever controlling the hydraulic HI-LO (1) oers two
more range speeds. Its main function is to decrease
or increase travel speed during operation or transport.
HI-LO modes can be selected during operation,
with no need to press clutch pedal and under load
conditions by means of buttons (+) and (-) located on
gear shift lever knob (1). Press buttons (+) or (-) to
select the following modes, respectively:
(+) = fast range (rabbit)
(-) = slow range (turtle)
IMPORTANT: When starting the engine, the slow
range (-) is selected by default.
When the fast range is selected (+) the relative viewing
in the central display (2) turns on. When the slow range
is selected (-) the relative viewing in the central display
(2) turns o.
(+)
(-)
IMPORTANTE: al momento dell’accensione del
motore, la gamma lenta (-) è automaticamente
selezionata.
5.12 USO DELLA LEVA DEL COMANDO HI-LO
MECCANICO (SE PRESENTE)
5.12 USING THE MECHANICAL HI-LO CONTROL
LEVER (IF ANY)
5.13 USING THE HYDRAULIC HI-LO CONTROL
LEVER (IF ANY)
