5
revision 0 date: 07/19 doc. AG525990
Versione meccanica
Versione power reverser

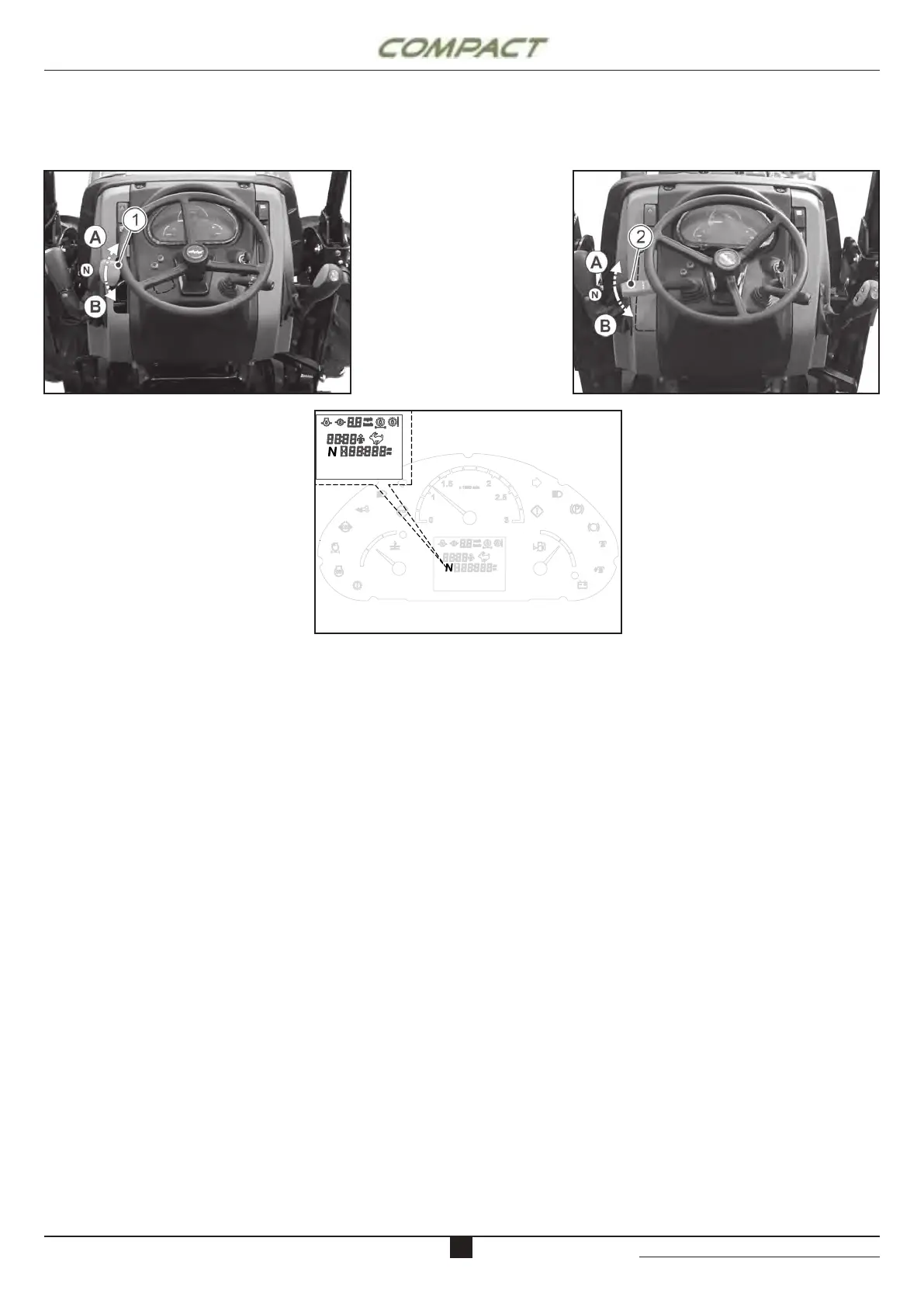

Vehicle travel direction is selected through lever (1) on
tractors with mechanical transmission, or through lever
(2) on tractors with power reverser. Power reverse
lever provides three positions:
(N) = neutral
(A) = forward travel
(B) = reverse travel
Mechanical version
Press and hold the clutch pedal and move the lever (1)
from the neutral position to the forward to reverse gear
to select reverse gear.
Power reverser version
The power reverser lever (2) can work even without
pressing the clutch pedal. It is possible to reverse the
travel direction by directly passing from position (A) to
position (B) and vice versa.
When lever (2) is in neutral position, the warning light
“N” on the display is on.
5.14 USO DELLA LEVA DELL’INVERSORE DI
MARCIA
5.14 USING THE GEAR POWER REVERSER
LEVER
