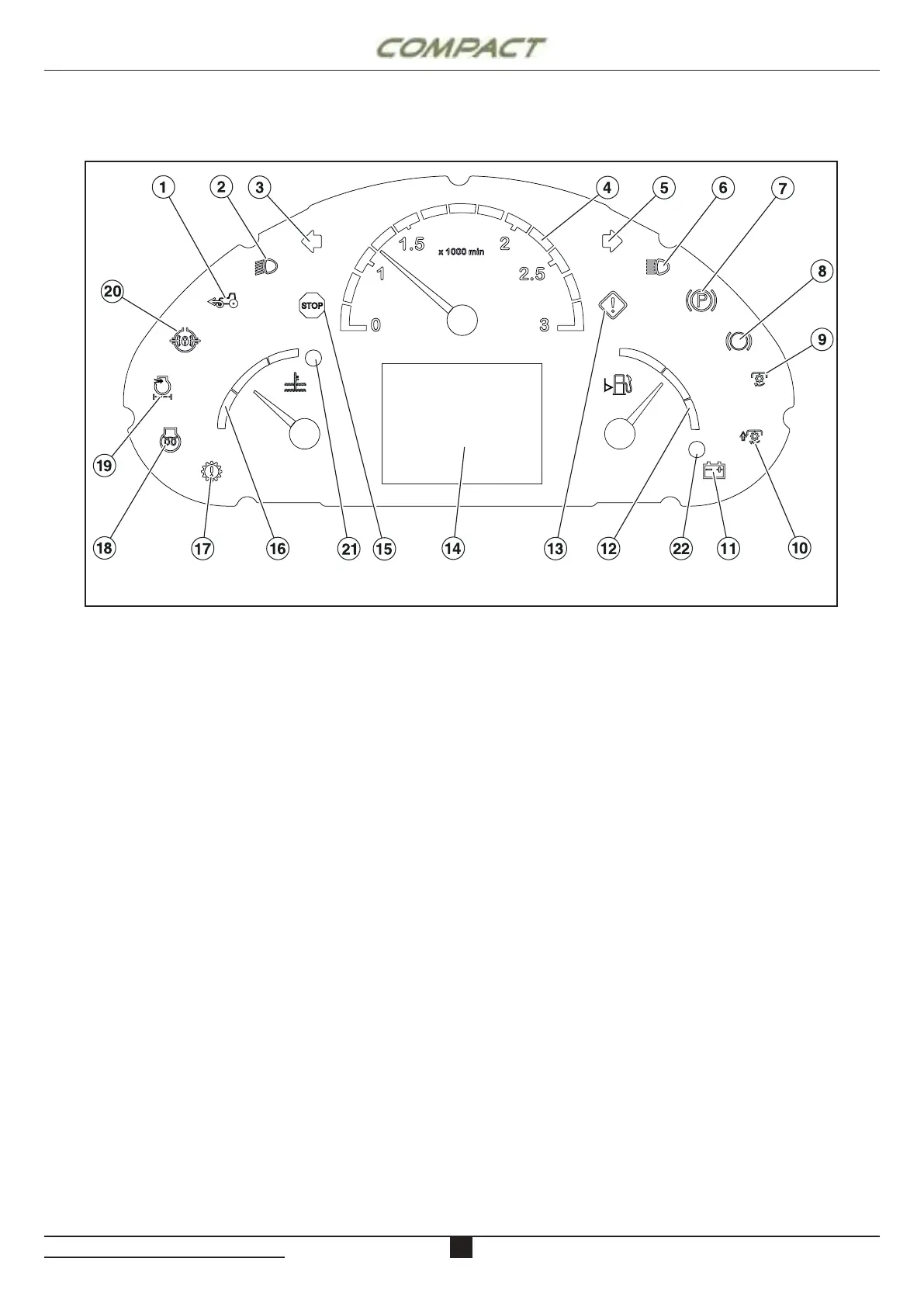

4.9 PANNELLO STRUMENTI
1. 4-wheel drive
2. Low beams
3. LH side turn indicator
4. Rev counter
5. RH side turn indicator
6. High beams
7. Parking brake
8. Oil brake level low indicator
9. Rear power take-o
10. Front power take-o
11. Battery
12. Fuel level indicator
13. Generic Caution indicator
14. Multifunction display
15. Emergency stop indicator
16. Coolant temperature indicator
17. Transmission malfunction (power reverser)
18. Preheating
19. Air lter clogged
20. Dierential locking
21 Coolant level warning light
22 Fuel reserve warning light
4.9 INSTRUMENT PANEL
