5
revision 0 date: 07/19 doc. AG525990
Barra superiore
ATTENZIONE
Rischio di schiacciamento.
Lesioni gravi o mortali.
Tiranti di connessione inferiori
ATTENZIONE
Tiranti di collegamento inferiori dell’attacco
anteriore non ripiegati.
Rischio di collisione. Lesioni gravi o mortali, danni
materiali.
On the road, or when the front linkage is not being
used, use of the front linkage must be inhibited.

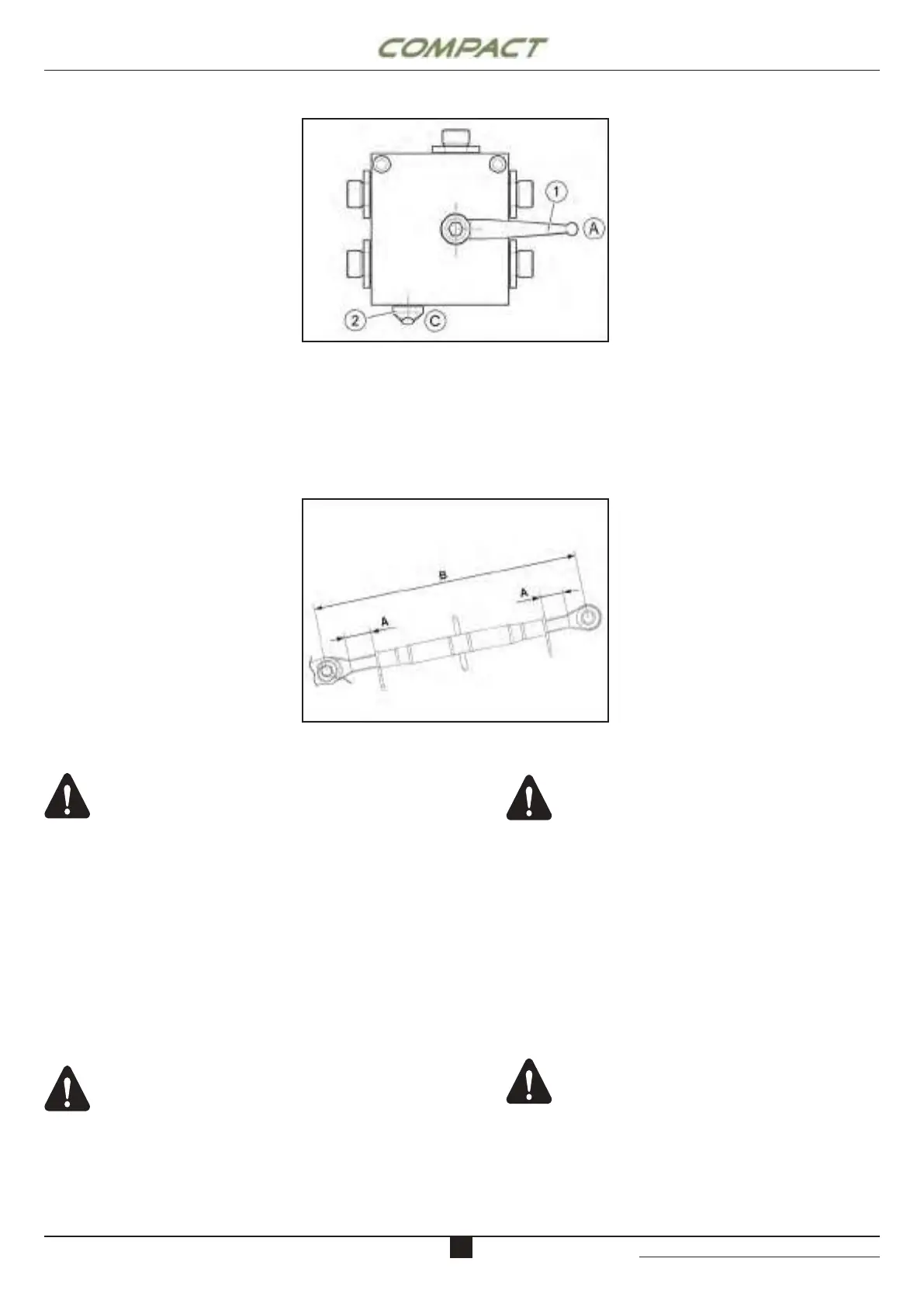

In order to inhibit use of the front linkage:
- Set the lever (1) to position (A).
- Set the lever (2) to position (C).
Top link
CAUTION
Risk of crushing.
Death or serious injuries.
- Check that the uncovered thread lengths (A) are
equal (maximum dierence: 5 mm).
- The centre distance (B) of the top link must not
exceed 550 mm.
- Turn the centre part to adjust the length of the link.
- Secure the link to the implement beam once
adjustment is completed.
- Retighten the locknuts.
Lower connecting rods
CAUTION
Front linkage lower connecting rods not
folded up.
Risk of collision. Death or serious injuries,
material damage.
- Always fold the lower connecting rods of the front
linkage when the front linkage is not in use.
