6.7.4 - Front-wheel drive axle - Check oil level
in the nal drive housing
6.7.4 - Assale anteriore - Vericare livello olio
nel riduttore nale


CAUTION: Use suitable personal protection
equipment.
4-wheel drive front axle nal drives
- Set vehicle on a at horizontal surface.
- Set front axle with “OIL LEVEL” indication in
horizontal.

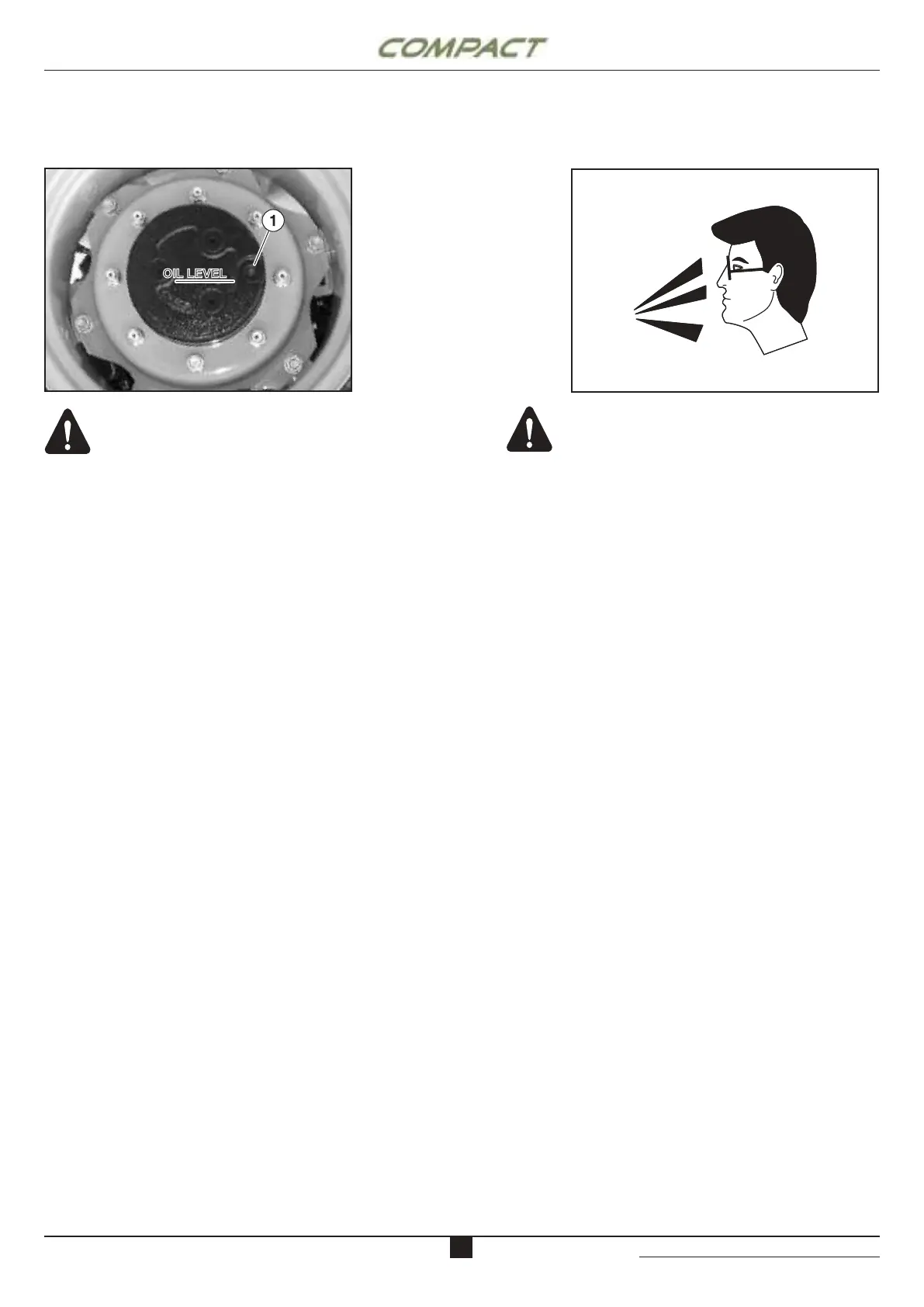

- Slacken plug (1) and check oil level: under normal
conditions it shall reach hole edge.
- Top up if necessary.
- Tighten plug (1) to the specied torque.
Final drives oil plug: Models V = 40 Nm
Final drives oil plug: Models VL and F = 80 Nm
ATTENZIONE: Utilizzare dei dispositivi di
protezione individuale idonei.

 
 

 

 
 


