Case 590ST - Page 169

5-TRANSPORTOPERATIONS
8.Machineswithasideshiftcapabilities,see6-26and
slidethebackhoetothetrackside.
9.Movethebackhoesothatitisin-linewiththemachine
(notperpendicularwiththemachine).
10.Ifapplicable,retractthetelescopicdipper.

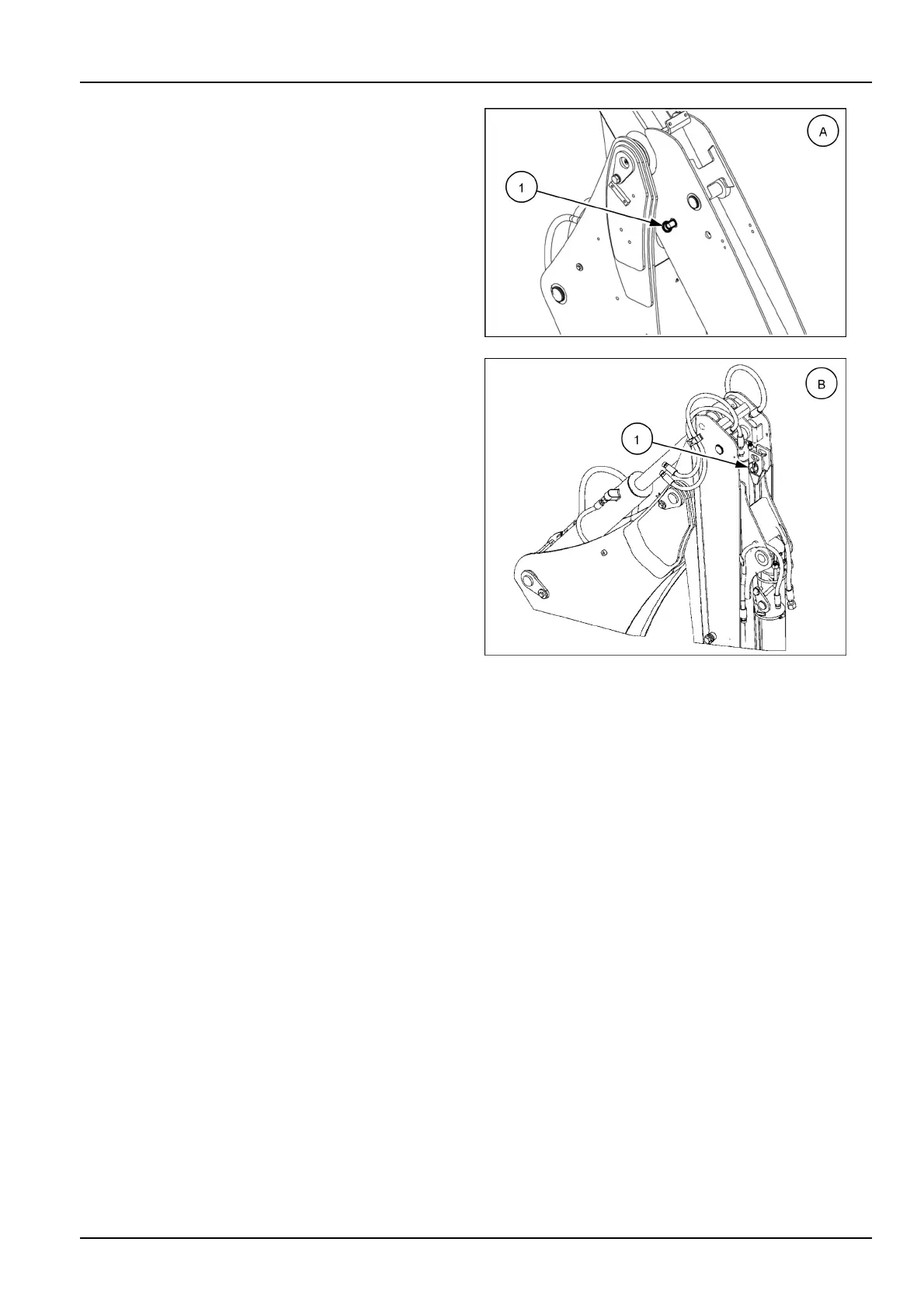

11.Ifapplicable,placethepin(1)inthedipperlockposi-
tion.
NOTE:FigureAappliestomodels580T/580STwith
overlappingcylinderboom,590ST,and695ST.Fig-
ureBappliestomodels580T/580STwithin-linecylin-
derboom.
12.Retractthebackhoebucket.
13.Retractthedipperarm.
LEEN11T0143AA3
RAIL15TLB0545BA4
5-5
