CHAPTER 3 – INSTRUMENTS AND CONTROLS
3-5

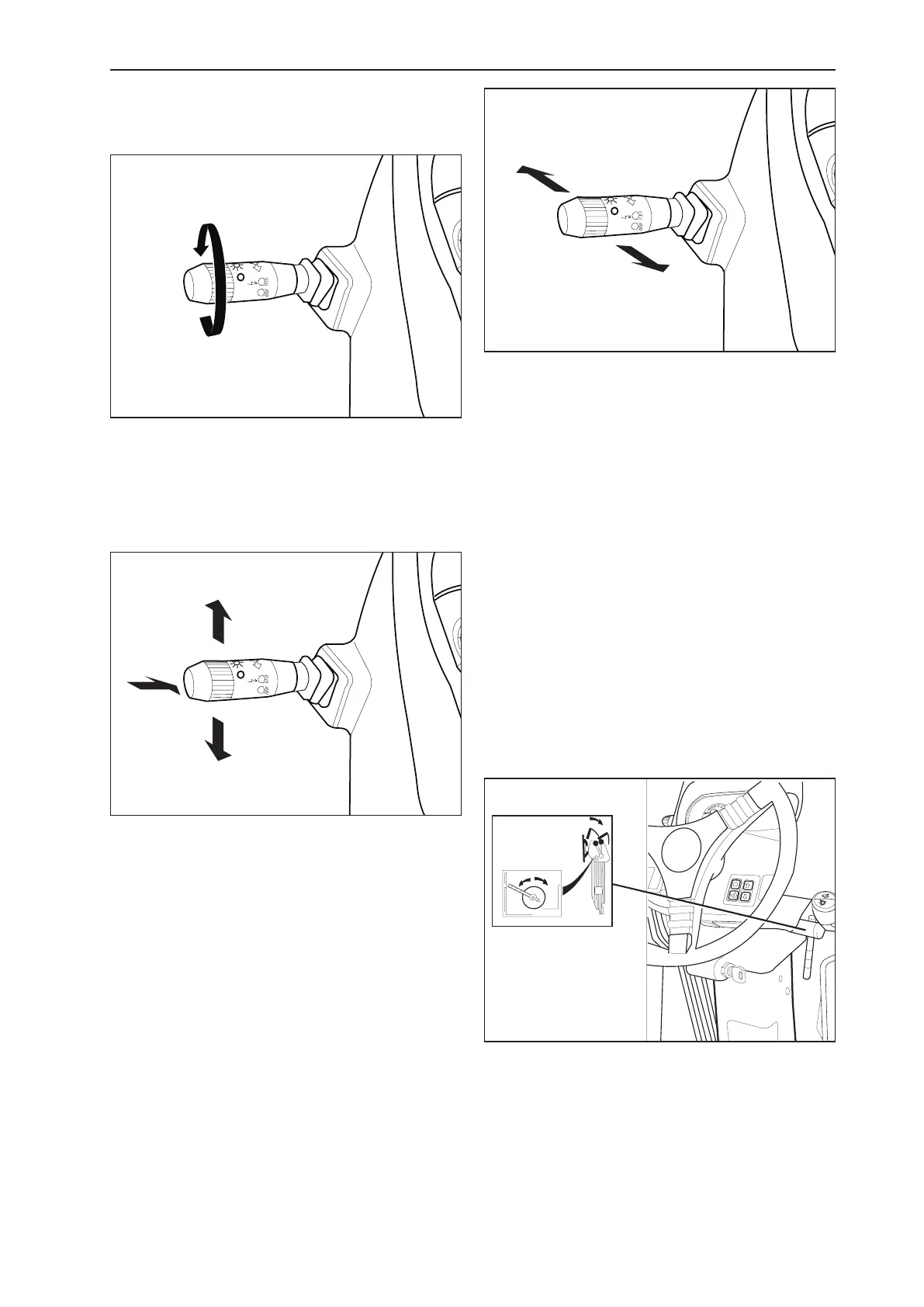

1. FLOODLIGHTS, HEADLIGHTS LOW AND
HIGH BEAM, HORN AND TURNING SIGNALS
LEVER
To turn on the Parking Lights: rotate the light switch on
the end of the directional signal lever one position.
To turn on the Driving Lights: rotate the light switch on
the end of the directional signal lever two positions.
HORN
HIGH BEAM
LOW BEAM
To Operate the High and Low Beams: Move the lever
up (vertically) one position (with the light switch rotated to
the “on” position) and the hi-beam lights come on.
To Operate the High and Low Beams: Move the lever
up (vertically) two positions (with the light switch rotated
to the “on” position) and the low-beam lights come on.
Move the lever up (vertically) to the top momentary po-
sition and release the lever (with the light switch rotated
to the “on” position) and the hi-beam lights will ash and
return to the low-beam position.
To sound the horn: push in on the end of the directional
signal lever.
RIGHT
LEFT
To activate the right directional signal: push the direc-
tional signal lever away from the operator seat.
To activate the left directional signal : pull the directional
signal lever towards the operator seat.
2. STEERING WHEEL
The steering wheel is attached to an orbitrol steering con-
trol unit. The orbitrol is a combination valve and oil pump
which is responsible for the supply of oil to the steering
cylinder.
3. STEERING WHEEL TILTING LEVER
The steering wheel as well as the console can be reclined
through a lever in order to provide a more adequate ope-
ration position to the operator.
Release the lever and adjust the steering wheel posi-
tion forward or backwards in order to drive the machine
comfortably. Lock again the lever making sure that the
steering wheel is not moving.
STEERING WHEEL TILT LEVER
