CHAPTER 3 – INSTRUMENTS AND CONTROLS
3-11
J
K

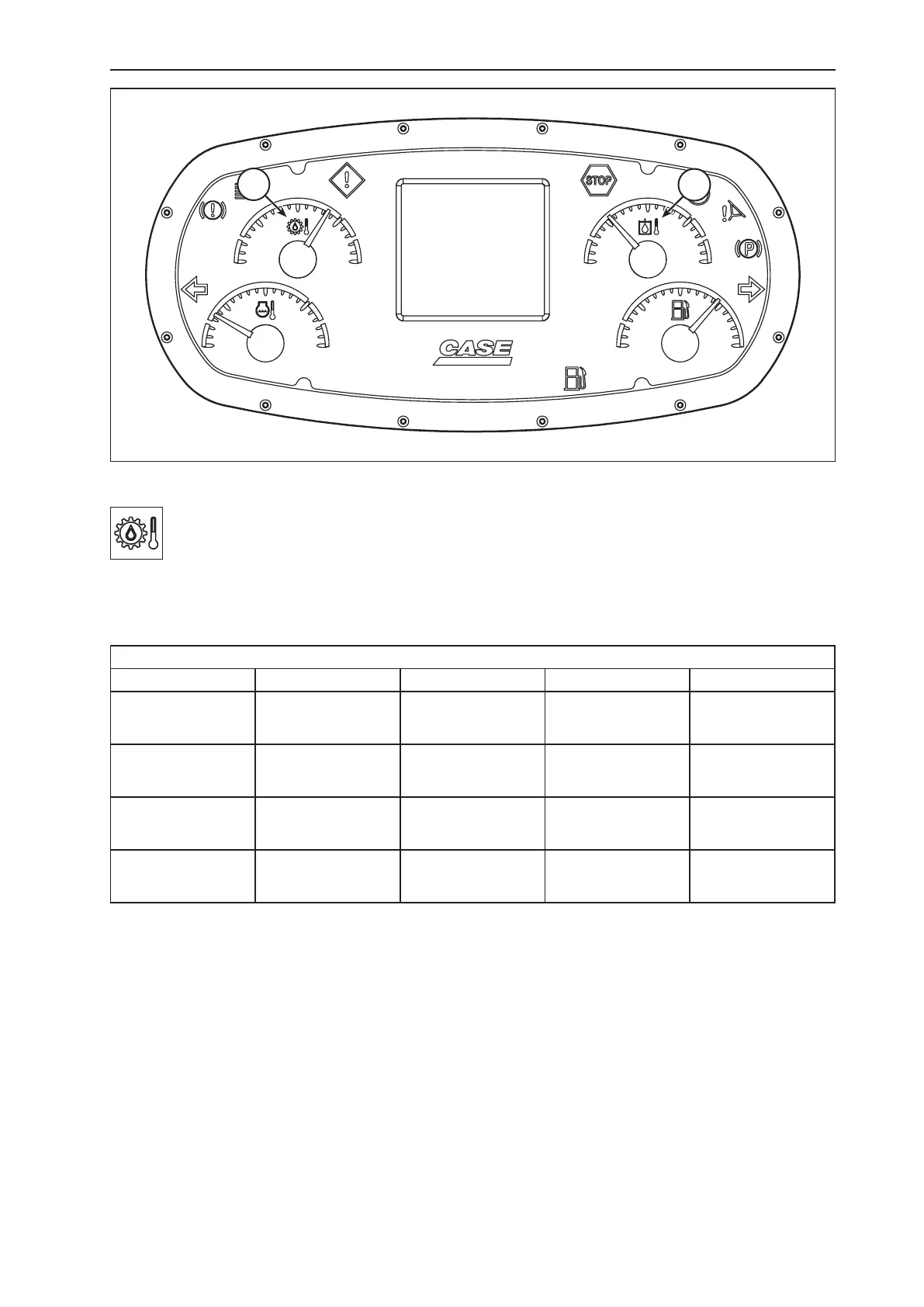

J. TRANSMISSION FLUID TEMPERATURE GAUGE
This indicator shows the transmission uid temperature. The normal operation temperature is within the
green band. When the transmission uid temperature raises, the indicator will pass to the yellow band,
the warning alarm will be actuated for three seconds, and the warning main indicator will change to yellow.
When the temperature continues raising, the indicator changes to the red band, the warning alarm will sound
continuously and the stop main indicator will be red. The machine MUST NOT be operated when the tem-
perature is in the red band.
TRANSMISSION OIL TEMPERATURE GAUGE
Gauge Indication Condition Master Indicator Gauge Status Alarm Status
20°C and below
(68°F and below)
Transmission oil
temperature is very low.
Caution (Yellow) Continuous 3 Seconds
20°C to 120°C
(68°C to 248°F)
Transmission oil
temperature is normal.
120°C to 125°C
(248°F to 257°F)
(See the note below)
Transmission oil
temperature is high.
Caution (Yellow) Continuous
125°C and above
(257°F and above)
Transmission oil
temperature is very high.
Stop (Red) Continuous
Intermittent
(0,5 sec. ON and
0,2 sec. OFF)
NOTE: In order to avoid damages to the transmission, stop the machine, shift the transmission in NEUTRAL position,
and run the engine at maximum throttle until transmission is cooled. If the transmission uid temperature does not re-
turn to normal operation temperature, run the engine at idle speed and check the uid level in the transmission. Correct
the defect before continuing the operation of the machine.
