CHAPTER 3 – INSTRUMENTS AND CONTROLS
3-49

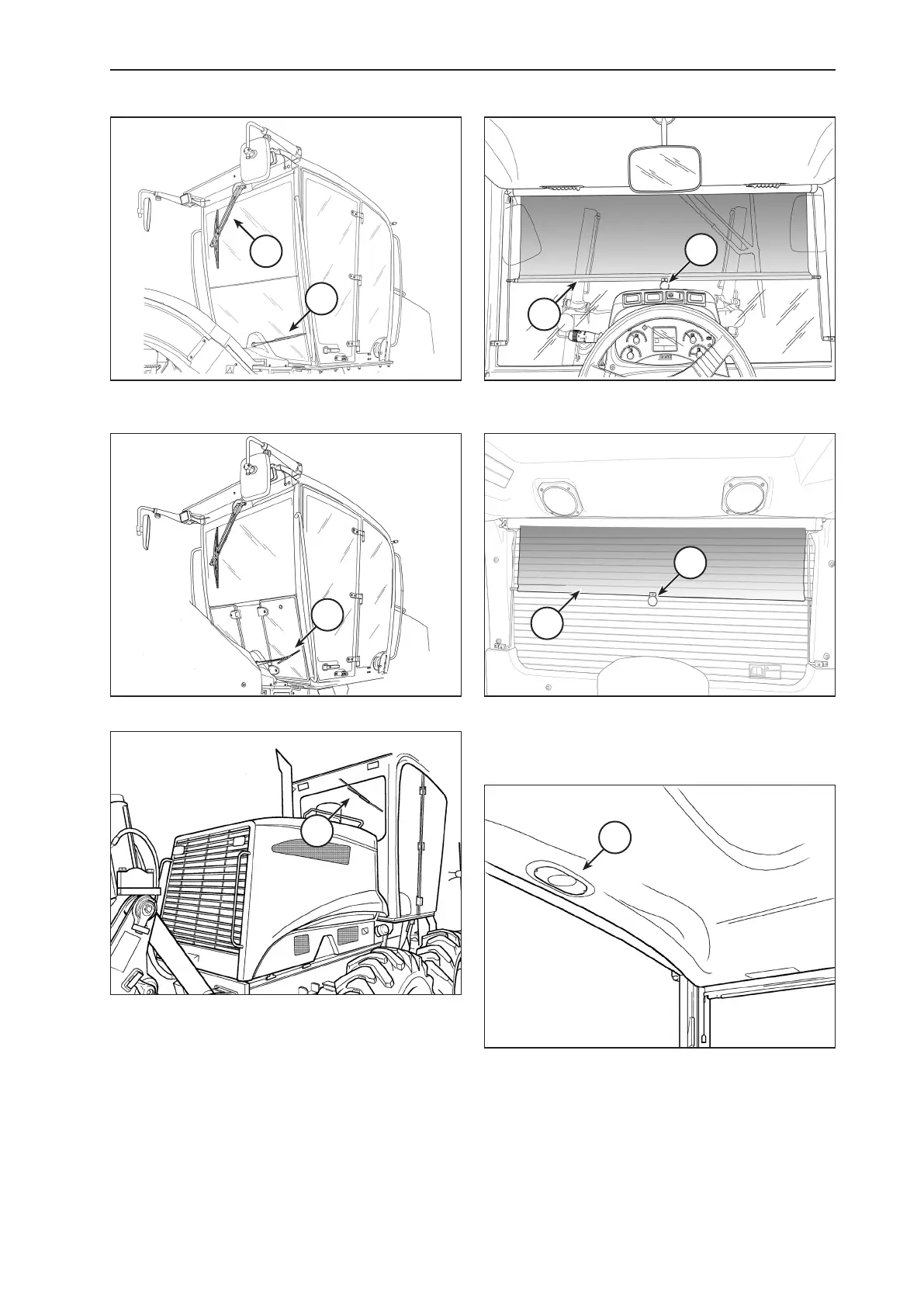

Windshield Wipers
2
1
UPPER FRONT WIPER1.
LOWER FRONT WIPER (OPTIONAL)2.
3
LOWER FRONT WIPER (OPTIONAL)3.
4
REAR WIPER (OPTIONAL)4.
To replace the blades of the front and rear wipers, lift the
blade support arm, separate and remove the blade from
the lock pin. To install, invert the removal procedure.
Sunshade
5
6
FRONT SUNSHADE5.
FRONT SUNSHADE RELEASE LEVER6.
7
8
REAR SUNSHADE7.
REAR SUNSHADE RELEASE LEVER8.
Dome Light
9
DOME LIGHT9.
The dome light is located on the cab roof. To turn on the
light, press upwards on the front end or rear end of the
lens.
To turn off the light, press again on the lens, returning it to
the center position.
