Rotating Beacon

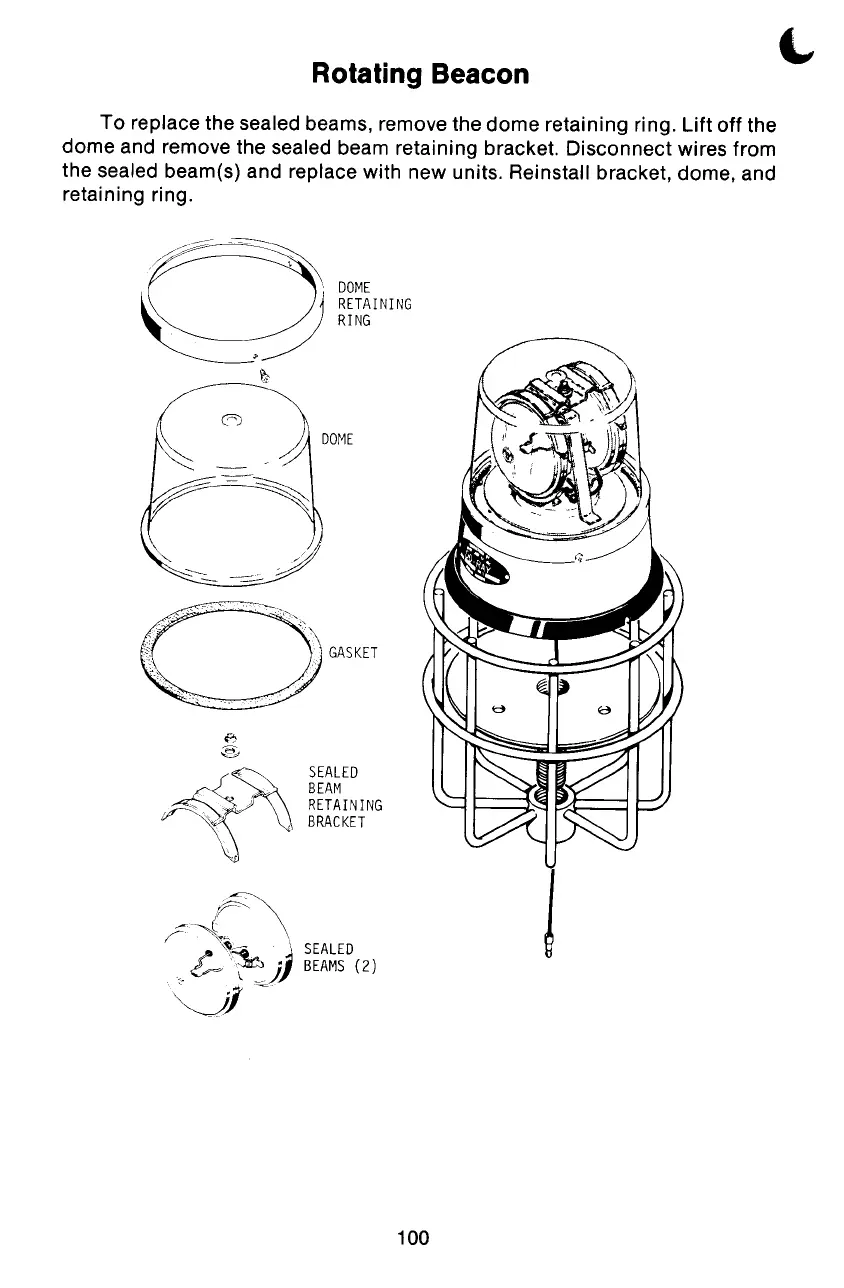

To replace the sealed beams, remove the dome retaining ring. Lift off the
dome and remove the sealed beam retaining bracket. Disconnect wires from
the sealed beam(s) and replace with new units. Reinstall bracket, dome, and
retaining ring.
DOME
RETAINING
RING
SEALED
BEAM
RETAINING
BRACKET
.f='~.,
--~(
/ ~K
~> J SEALED
_0 t:= ~jJ BEAMS (2)
0J·~
