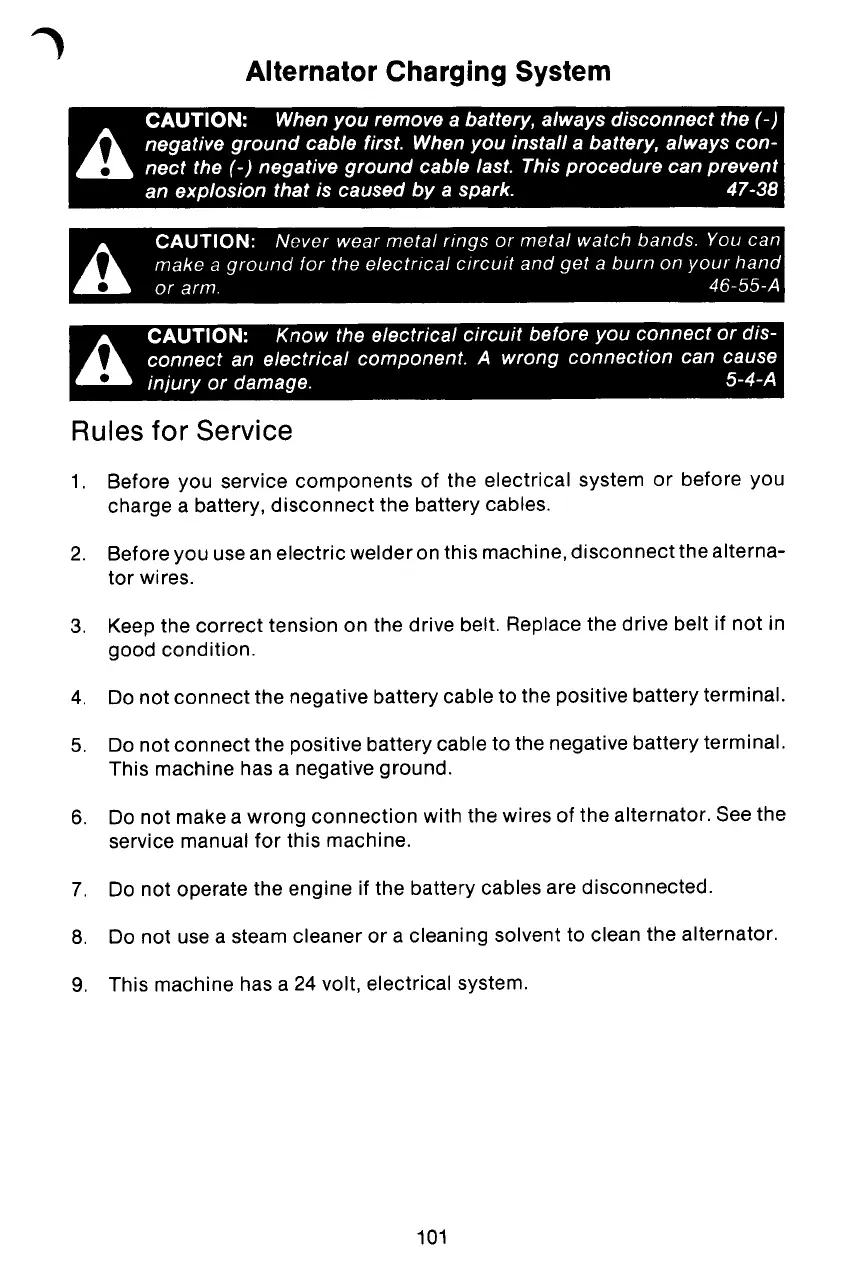

Alternator Charging System
CAUTION: When you remove a battery, always disconnect the (-)
h
negative ground cable first. When you install a battery, always con-
.. nect the (-) negative ground cable last. This procedure can prevent
an explosion that is caused by a spark. 47-38
A
CAUTION:
Never wear metal rmgs or metal watch bands. You can
make
a
ground for the electrical CIrcUItand get
a
burn on your hand
or arm. 46-55-A
A
CAUTION: Know the electrical circuit before you connect or dis-
connect an electrical component.
A
wrong connection can cause
injury or damage. 5-4-A
Rules for Service
1. Before you service components of the electrical system or before you
charge a battery, disconnect the battery cables.
2. Before you use an electric welder on this machine, disconnect the alterna-
tor wires.
3. Keep the correct tension on the drive belt. Replace the drive belt if not in
good condition.
4. Do not connect the negative battery cable to the positive battery terminal.
5. Do not connect the positive battery cable to the negative battery terminal.
This machine has a negative ground.
6. Do not make a wrong connection with the wires of the alternator. See the
service manual for this machine.
7. Do not operate the engine if the battery cables are disconnected.
8. Do not use a steam cleaner or a cleaning solvent to clean the alternator.
9. This machine has a 24 volt, electrical system.
101
