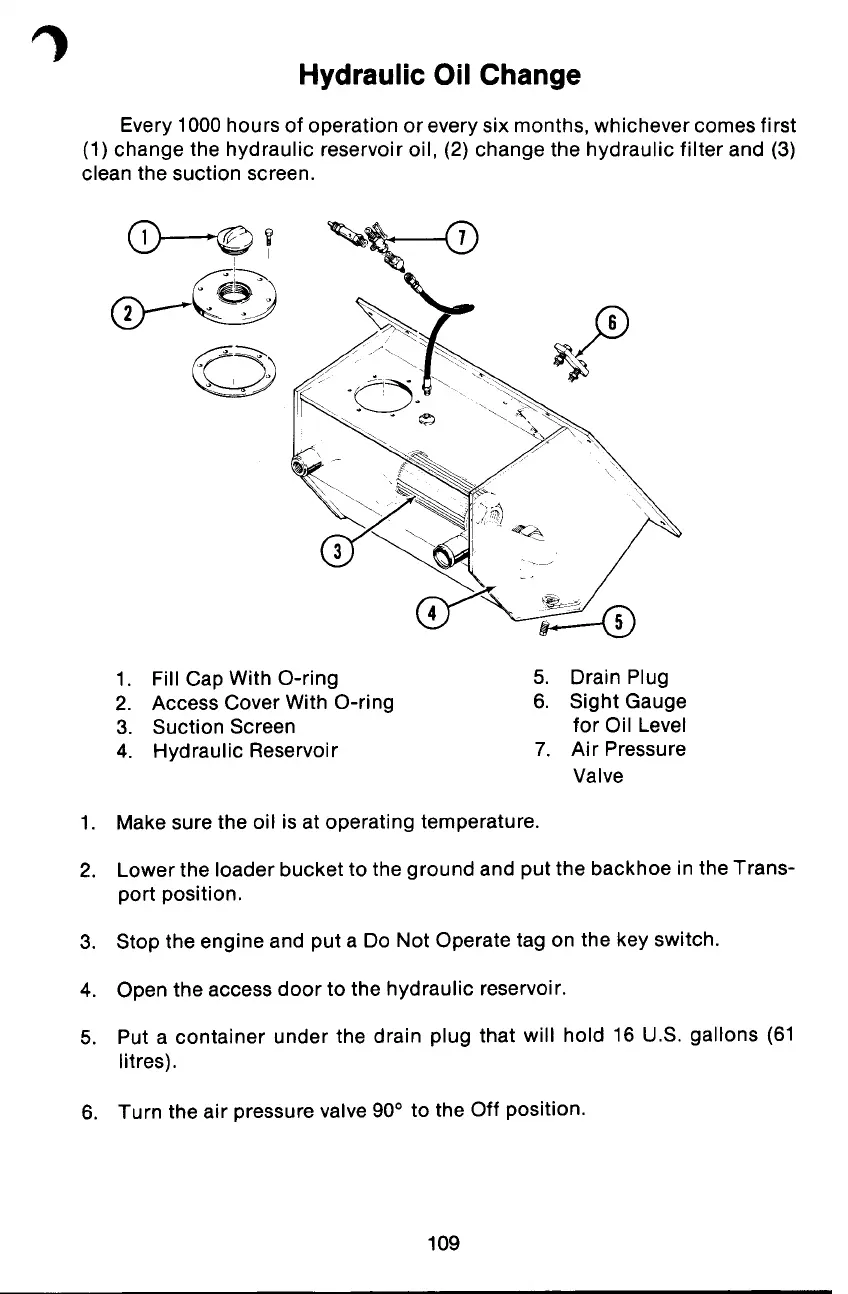

Hydraulic Oil Change
Every 1000hours of operation or every six months, whichever comes first
(1) change the hydraulic reservoir oil, (2) change the hydraulic filter and (3)
clean the suction screen.
1.
Fill Cap With O-ring
5.
Drain Plug
2.
Access Cover With O-ring
6.
Sight Gauge
3.
Suction Screen
for Oil Level
4.
Hydraulic Reservoir
7. Air Pressure
Valve
1. Make sure the oil is at operating temperature.
2. Lower the loader bucket to the ground and put the backhoe in the Trans-
port position.
3. Stop the engine and put a Do Not Operate tag on the key switch.
4. Open the access door to the hydraulic reservoir.
5. Put a container under the drain plug that will hold 16 U.S. gallons (61
litres).
6. Turn the air pressure valve90
0
to the Off position.
109
