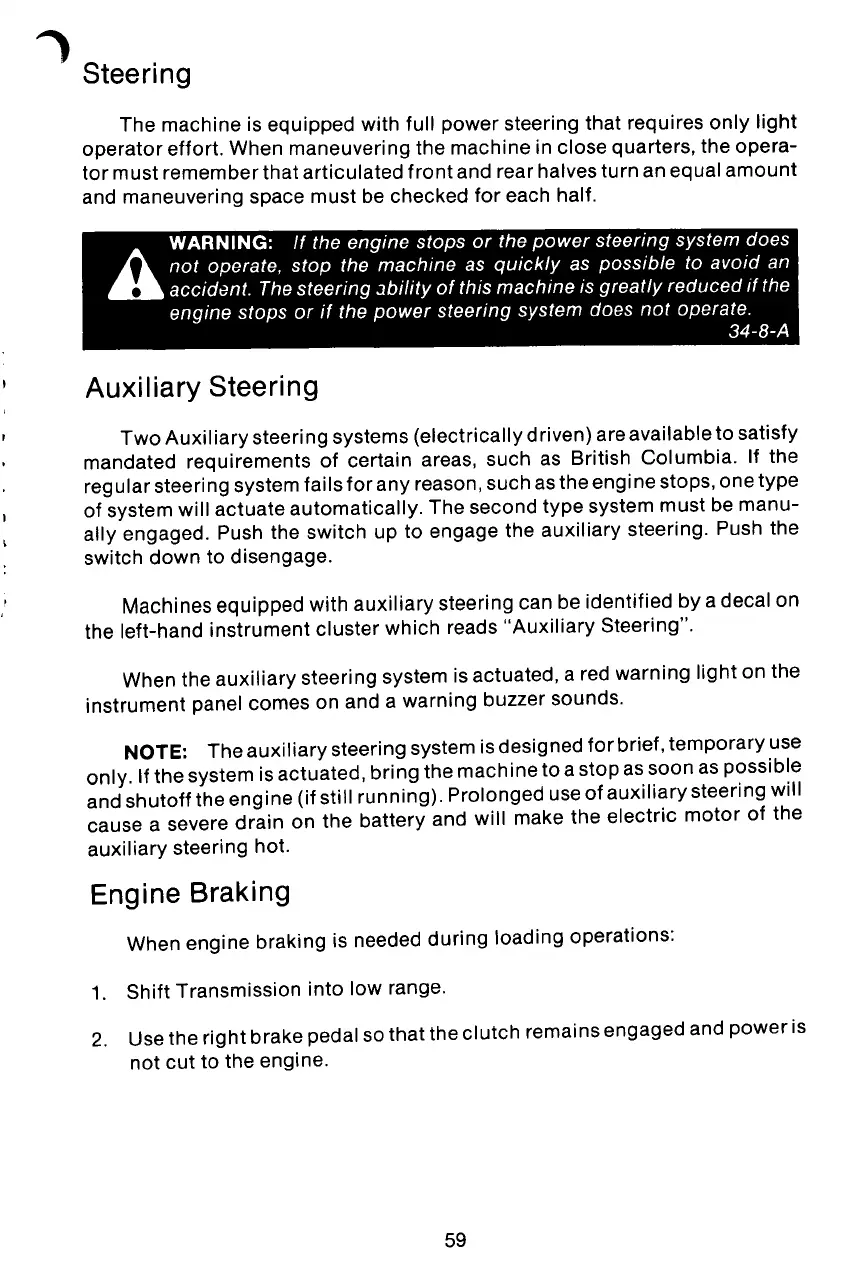

Steering
The machine is equipped with full power steering that requires only light
operator effort. When maneuvering the machine in close quarters, the opera-
tor must remember that articulated front and rear halves turn an equal amount
and maneuvering space must be checked for each half.
WARNING:
If the engine stops or the power steering system does
11...
not operate, stop the machine as quickly as possible to avoid an
.. eccident. The steering :1bility of this machine is greatly reduced if the
engine stops or if the power steering system does not operate.
34-8-A
Auxiliary Steering
Two Auxiliary steering systems (electrically driven) are availableto satisfy
mandated requirements of certain areas, such as British Columbia. If the
regular steering system fails for any reason, such as the engine stops, one type
of system will actuate automatically. The second type system must be manu-
ally engaged. Push the switch up to engage the auxiliary steering. Push the
switch down to disengage.
Machines equipped with auxiliary steering can be identified by a decal on
the left-hand instrument cluster which reads "Auxiliary Steering".
When the auxiliary steering system is actuated, a red warning light on the
instrument panel comes on and a warning buzzer sounds.
NOTE:
The auxiliary steering system is designed for brief, temporary use
only. If the system is actuated, bring the machine to a stop assoon as possible
and shutoff the engine (if still running). Prolonged useof auxiliary steering will
cause a severe drain on the battery and will make the electric motor of the
auxiliary steering hot.
Engine Braking
When engine braking is needed during loading operations:
1. Shift Transmission into low range.
2. Use the right brake pedal so that the clutch remains engaged and power is
not cut to the engine.
59
