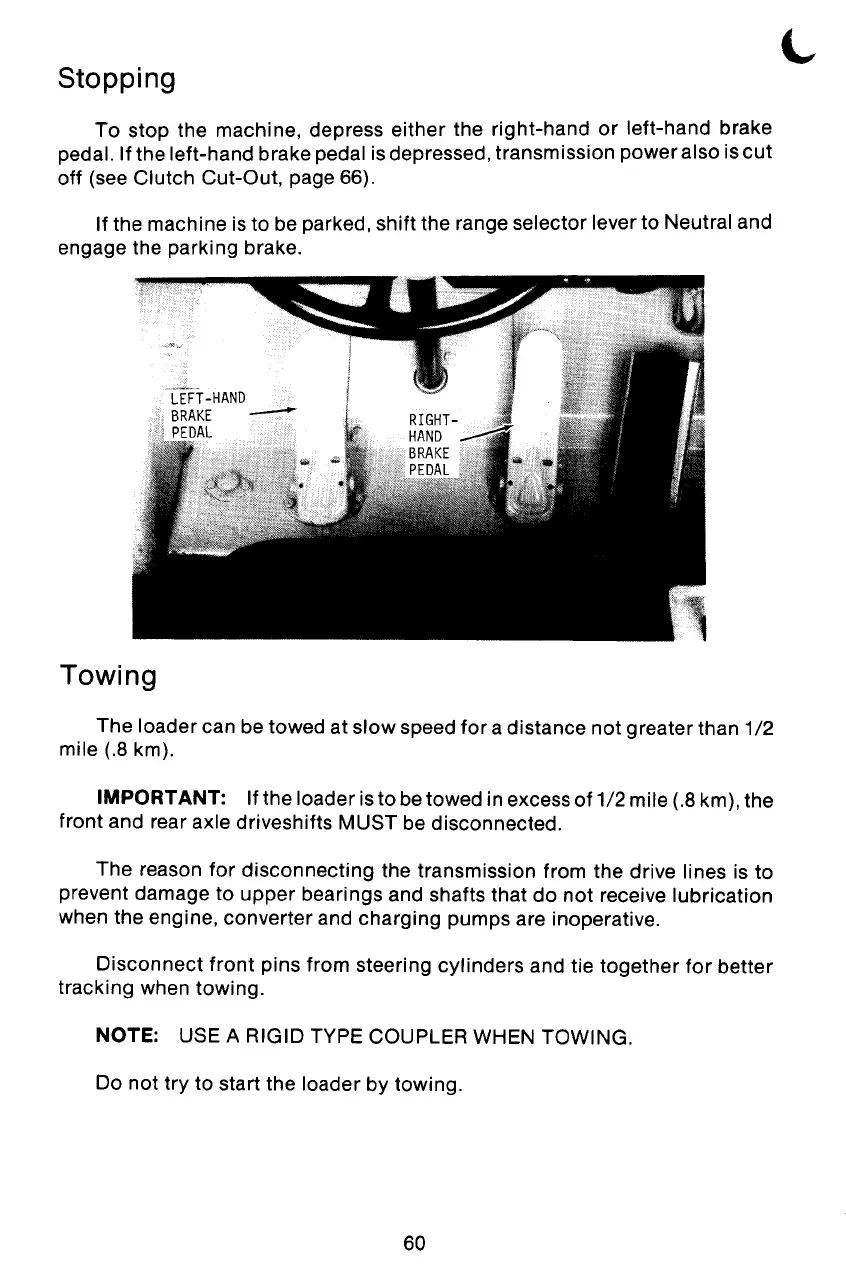

Stopping
To stop the machine, depress either the right-hand or left-hand brake
pedal. If the left-hand brake pedal is depressed, transmission power also is cut
off (see Clutch Cut-Out, page 66).
If the machine is to be parked, shift the range selector lever to Neutral and
engage the parking brake.
Towing
The loader can be towed at slow speed for a distance not greater than
1/2
mile (.8 km).
IMPORTANT: If the loader isto betowed in excess of
1/2
mile (.8 km), the
front and rear axle driveshifts MUST be disconnected.
The reason for disconnecting the transmission from the drive lines is to
prevent damage to upper bearings and shafts that do not receive lubrication
when the engine, converter and charging pumps are inoperative.
Disconnect front pins from steering cylinders and tie together for better
tracking when towing.
NOTE: USE A RIGID TYPE COUPLER WHEN TOWING.
Do not try to start the loader by towing.
60
