Cedar Summit F25650 - Page 38

1 x Half Narrow Window Panel FSC 1-1/4 x 16-3/4 x 56”
Wood Parts Hardware Other Parts
2 x 2 x 2-1/4” Corner Panel Bracket
060
4 x #12 x 3/4” Pan Screw
S8

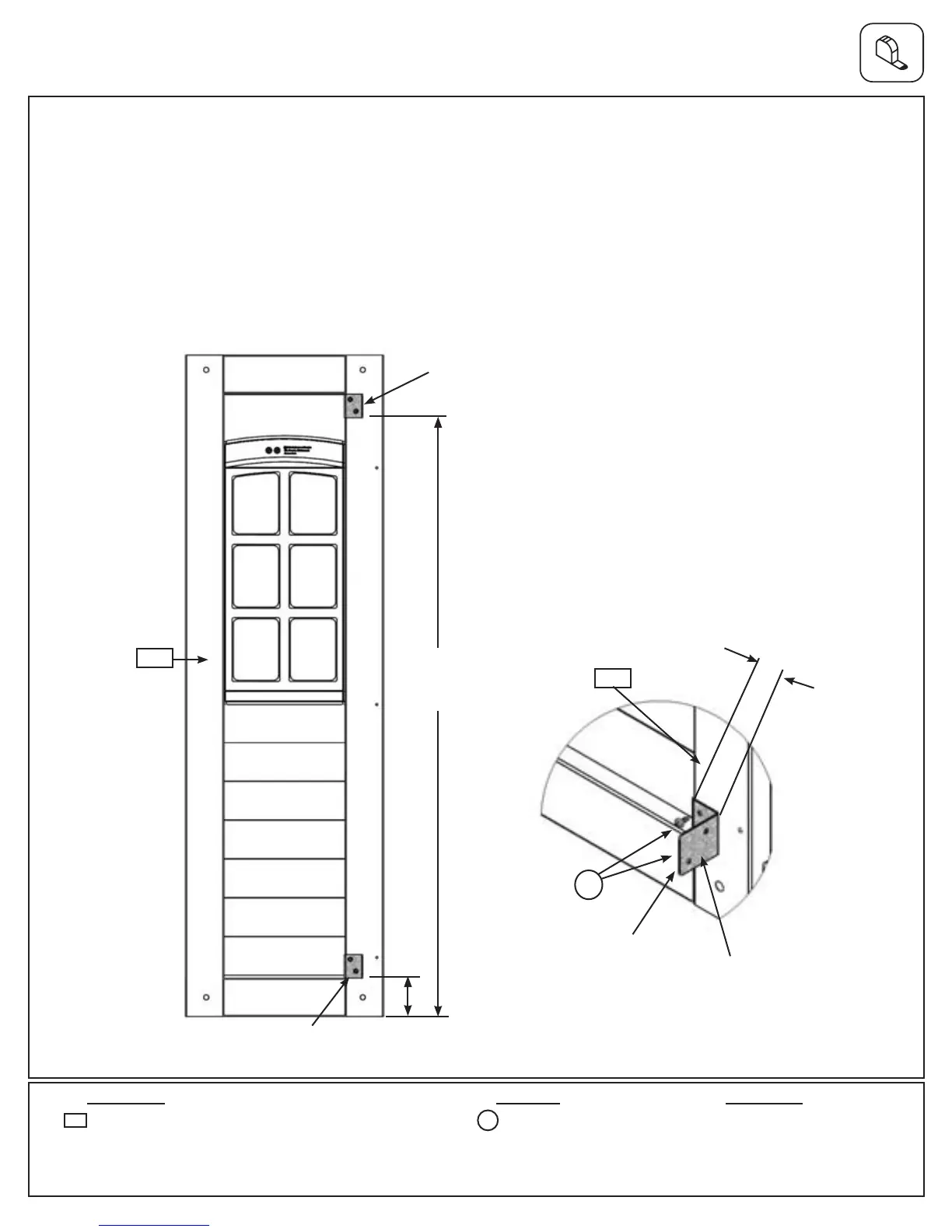

C: Place 1 (060) Narrow Half Window Panel on the ground. Measure 3-1/4” up from the bottom of the panel on
the right side and attach a 2 x 2-1/4” Corner Panel Bracket to the panel with 2 (S8) #12 x 3/4” Pan Screws. The
at edge of the bracket must be facing up and it must be installed on the correct side. (g. 6.3 and 6.4)
D: Measure 50-3/4” from the bottom of (060) Narrow Half Window Panel and attach a second 2 x 2-1/4” Corner
Panel Bracket with 2 (S8) #12 x 3/4” Pan Screws. The at edge of the bracket must be facing up and it must be
installed on the correct side. (g. 6.3 and 6.4)
Note: Bottom of 2 x 2-1/4” Corner Panel Bracket must sit at 50-3/4”.
Step 6: Door Wall Assembly
Part 2
060
Fig. 6.3
Fig. 6.4
S8
060
2 x 2-1/4”
Corner Panel Bracket
50-3/4”
3-1/4”
Flat edge up
2 x 2-1/4”
Corner Panel Bracket
2 x 2-1/4”
Corner Panel Bracket
2”
