E: With 2 people on the ground and at least 1 person in the fort, lift the Large Roof Assembly, from Step 21,
Part 1, up and over the Back side of the fort. Guide the Roof Assembly onto the fort so it sits on top of the Roof
Support Assembly, (220) Transom Front and (221) Transom Back and Roof Spacer Assembly. (g. 24.6 and
24.7)
F: Make sure the Large Roof Assembly lays at on the Roof Support Assembly and it overhangs by 2”. (g.
24.7)
G: Using the factory drilled holes as a guide attach the Large Roof Assembly to the Roof Support
Assembly and
Roof Spacer Assembly with 4 (S3) #8 x 2-1/2” Wood Screws side as shown in g. 24.6 and 24.7.

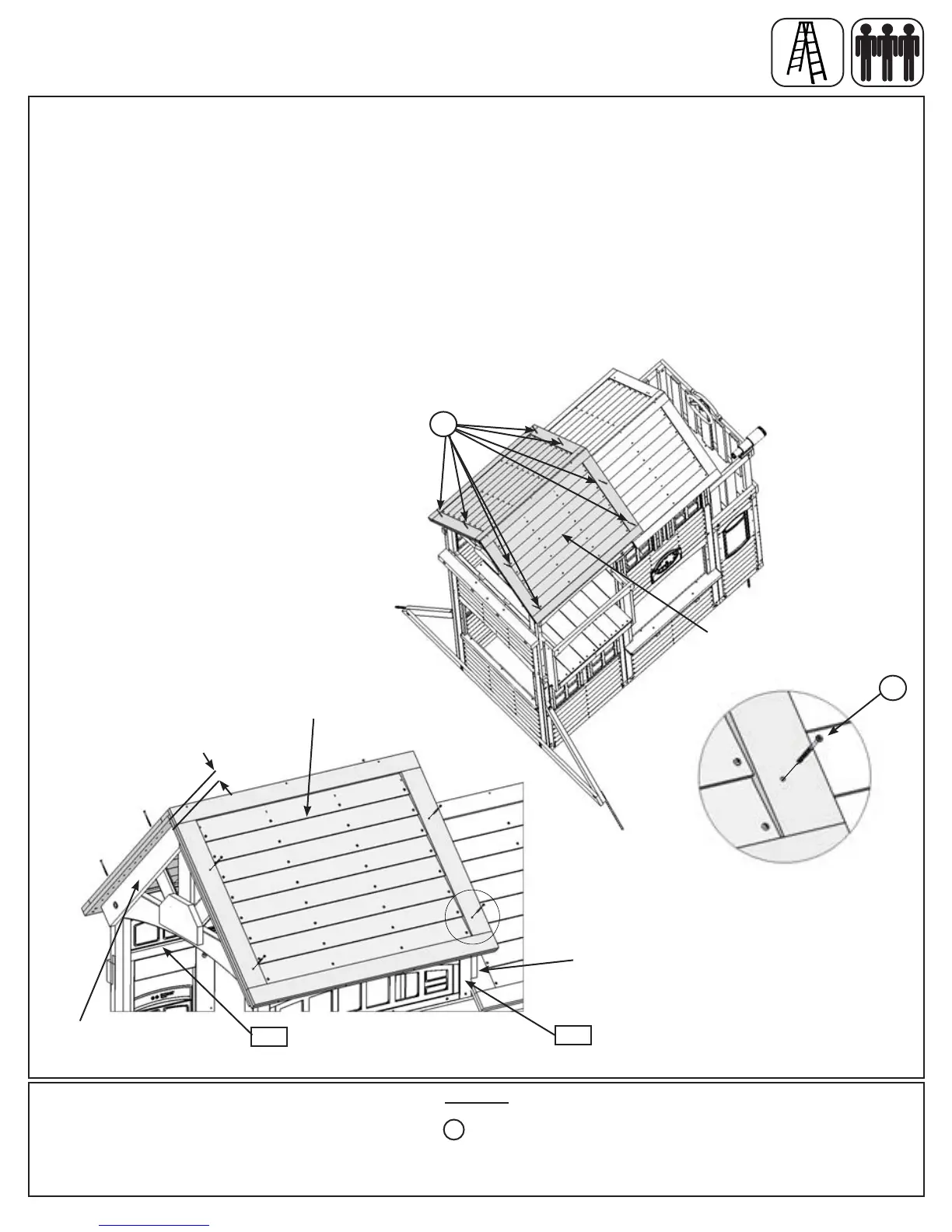

Step 24: Attach Roof Assemblies to Fort
Part 3
Hardware
8 x #8 x 2-1/2” Wood Screw
S3
Fig. 24.7
Large Roof Assembly
220
Roof Support Assembly
221
S3
2”
Large Roof Assembly
Front
Back
Fig. 24.6
S3
Roof Spacer Assembly
92 support@cedarsummitplay.com
