CEM EDGE system User Manual

17System Installation

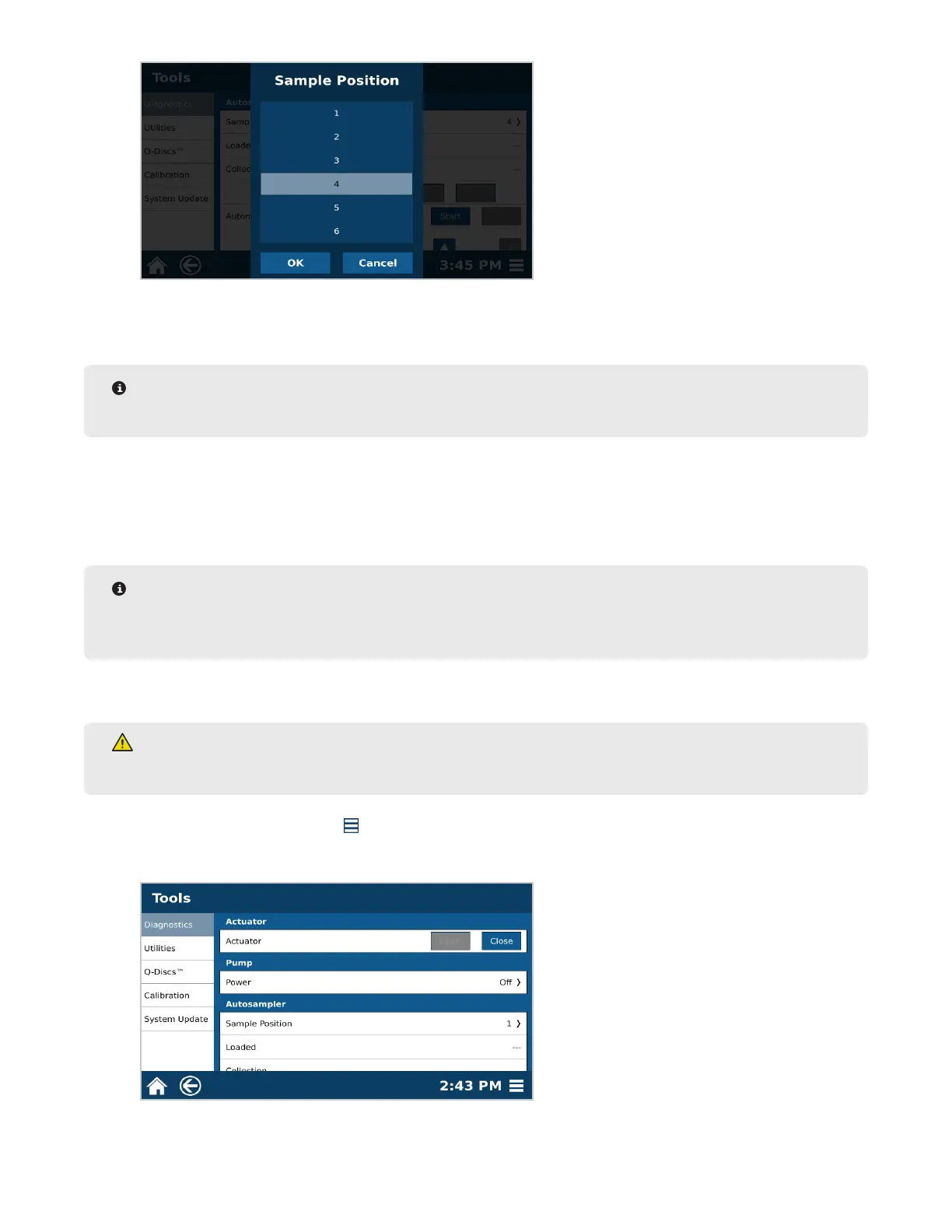

11.6. Select position “4” and then “OK.”
11.7. Select “Load.” The autosampler will load the Q-Cup into the vessel chamber.
NOTE
Pay attention to the Q-Cup during this time; the loading process should be smooth.
11.8. Select “Collect.” The dispense needle on the autosampler will move from the chamber to the collection
vial in position 4 of the rack.
11.9. Select “Unload.” The autosampler will unload the Q-Cup from the vessel chamber and place it back into
position 4 of the rack.
NOTE
If the autosampler crashes at any point during the verication, the autosampler will need to be calibrated.
Please see “Autosampler Calibration.”
12. Verify the Waste Calibration.
WARNING
Never place hands into the vessel chamber area when the EDGE is in use or powered on.
12.1. Select the System Menu icon in the bottom right corner of the screen.
12.2. Select Tools.
12.3. Select the Diagnostics tab and view the “Actuator” section.
