Features
Pump

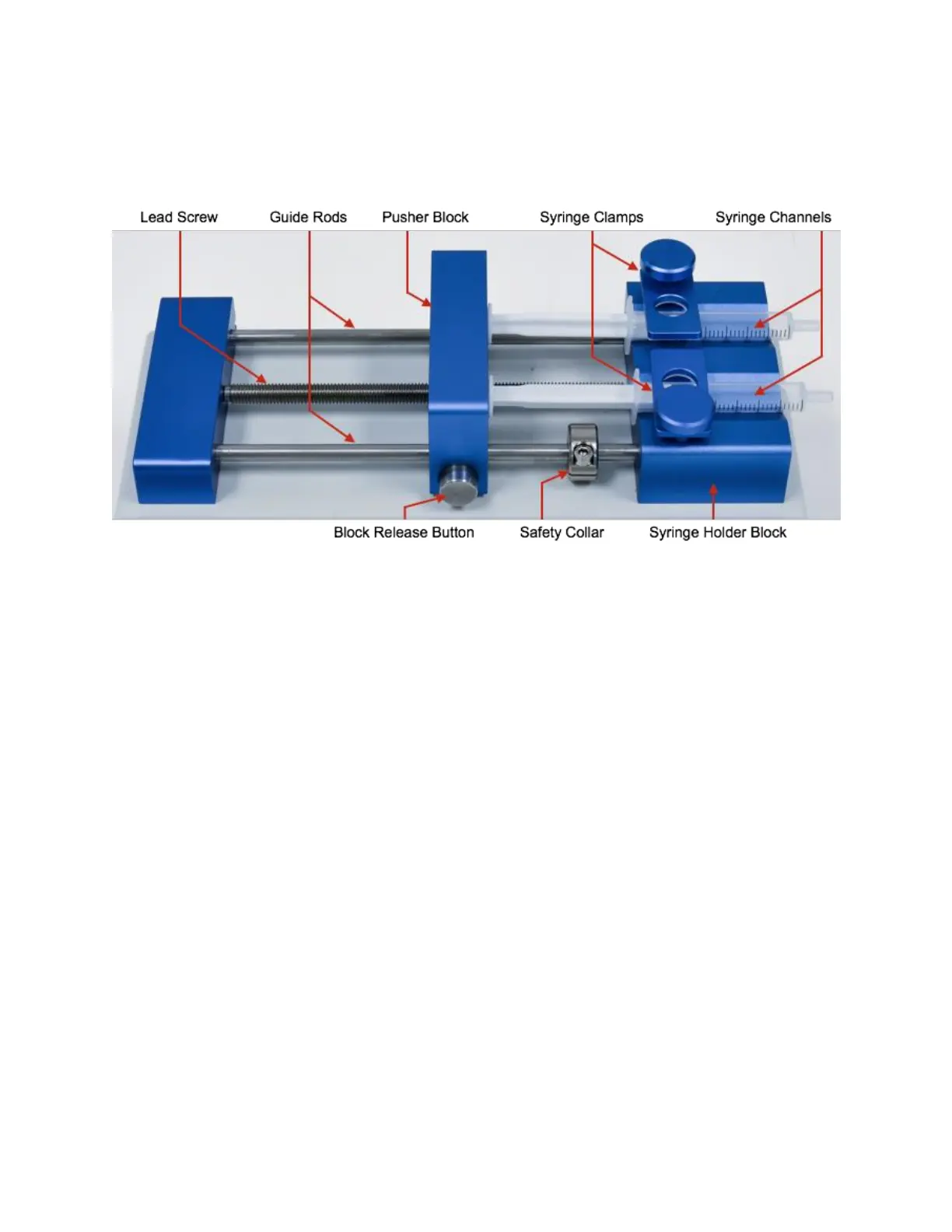

Fusion 100 pump components
All Fusion Series pumps have a single lead screw through which the pusher block is threaded.
The pusher block moves when the lead screw turns. The two guide rods keep the pusher block
horizontal and perfectly perpendicular to the lead screw. The block-release button disengages
the pusher block from the lead screw, which allows the pusher block to be easily moved to a
new position as long as the button is held. Releasing the button will lock the pusher block back
in place.
Syringes are placed on the syringe-holder block in the v-shaped grooves, or channels, and held
securely using syringe clamps. The Fusion 100 and 200 both have two syringe channels, while
the Fusion 400 has four smaller syringe channels.
The safety collar of the Fusion 100 and 200 helps protect the integrity of syringes by keeping
the pusher block from pushing on a completely depressed syringe.
