Pump Setup
Powering On/Off the Pump
To provide power to the pump, an IEC 60320 C13 cable should be plugged into the power
socket on the back of the pump. The cable should be plugged into an appropriate power source
(110V or 220V) with proper grounding. Adjust the voltage-converter switch on the back of the
pump such that the value displayed on the switch corresponds with the voltage of the power
supply.
The power switch for the pump is located on the back, above the power socket. Upon flipping
the switch to the “on” position, the blue LED power light on the front of the pump will
immediately turn on, along with the red LED light on the Stop key. In a few seconds, a beep will
sound, and the LCD screen will display an initial startup screen.

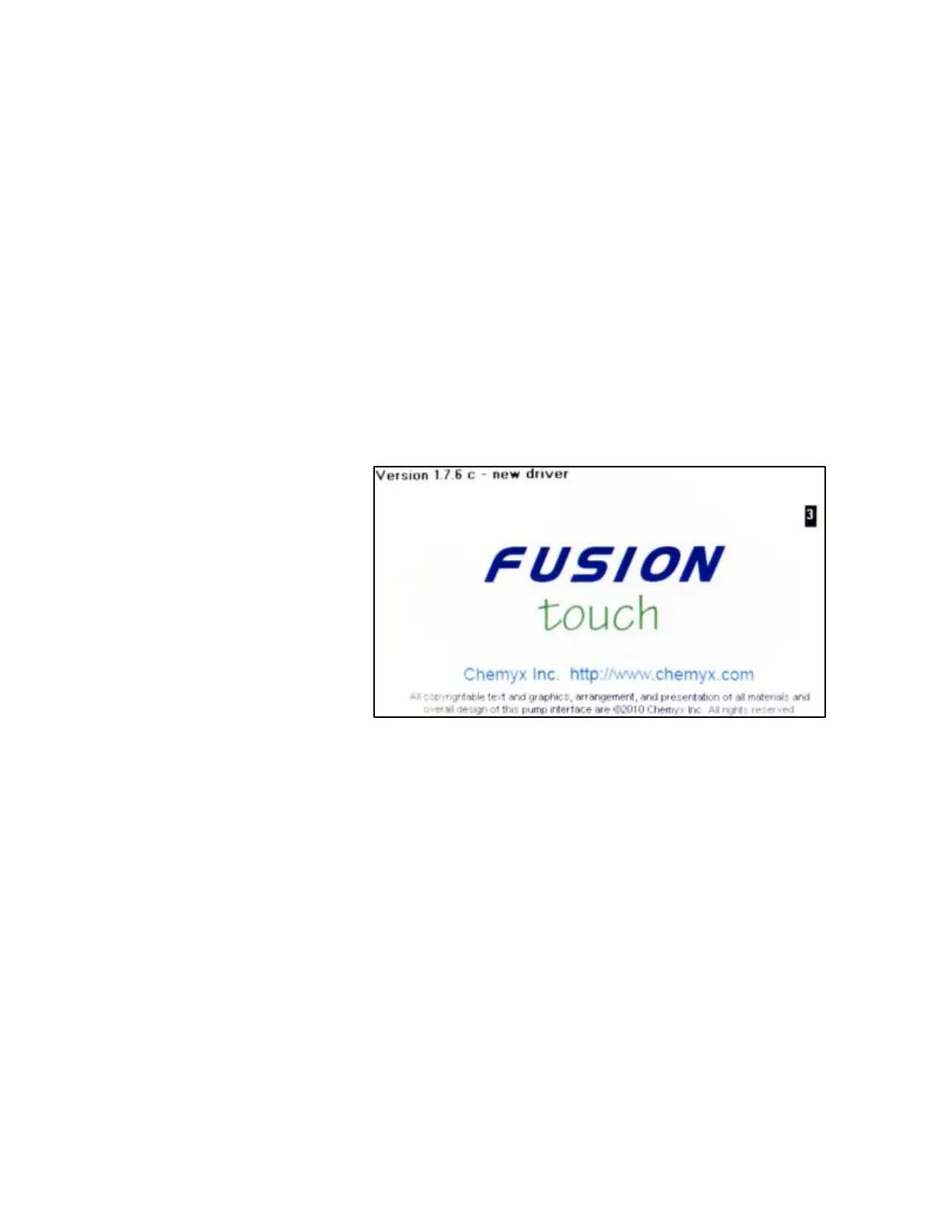

The startup screen displays the
version of the firmware currently
installed on the pump at the top
of the screen. The startup
screen will display for
approximately five seconds as
indicated by the countdown on
the right of the startup screen.
After the startup screen, the
LCD screen will display the last
mode the pump was in.
