Upon starting a pump run, the screen will switch to the System Status screen. There are two
different versions of this screen depending upon whether the pump was started in Basic Mode
or Multi-Step Mode.
Basic Mode System Status

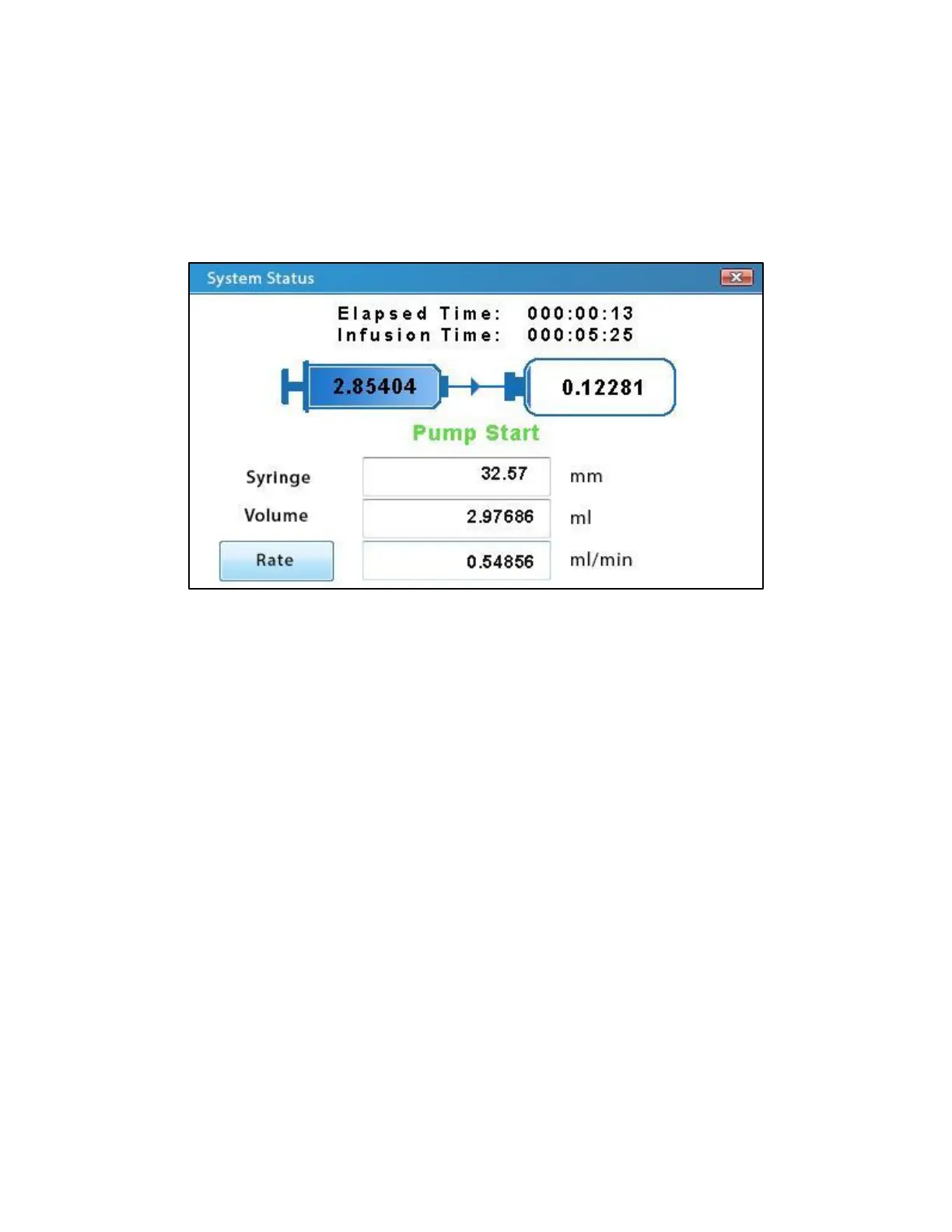

The System Status screen for Basic Mode highlights the current activity of the pump during a
run.
The Elapsed Time field indicates how much time has passed since the pump has started
physically running, not including any start-time delay. The Infusion Time field shows the
calculated total time for the current run to finish, barring any pause or stall in the instrument.
The two rectangular blocks on the screen illustrate the transfer of volume during the run. The
left rectangle represents the volume in the syringe while the right rectangle represents the
volume transferred in or out of the syringe. While the pump is running, a small arrow will appear
between the two rectangles indicating the direction of flow. Depending upon the direction of the
arrow, the numbers within each rectangle with change as volume is transferred.
The colored text directly under the volume transfer graphic indicates the current status of the
pump: green - running; yellow - paused or delayed; and red - stopped or stalled.
The Syringe, Volume, and Rate fields indicate the parameters that were set for the currently
running method in the Basic Mode main screen.
Tapping the Rate Adjust button allows users to change the flow rate of the pump in the middle
of the run.
