Loading Syringes

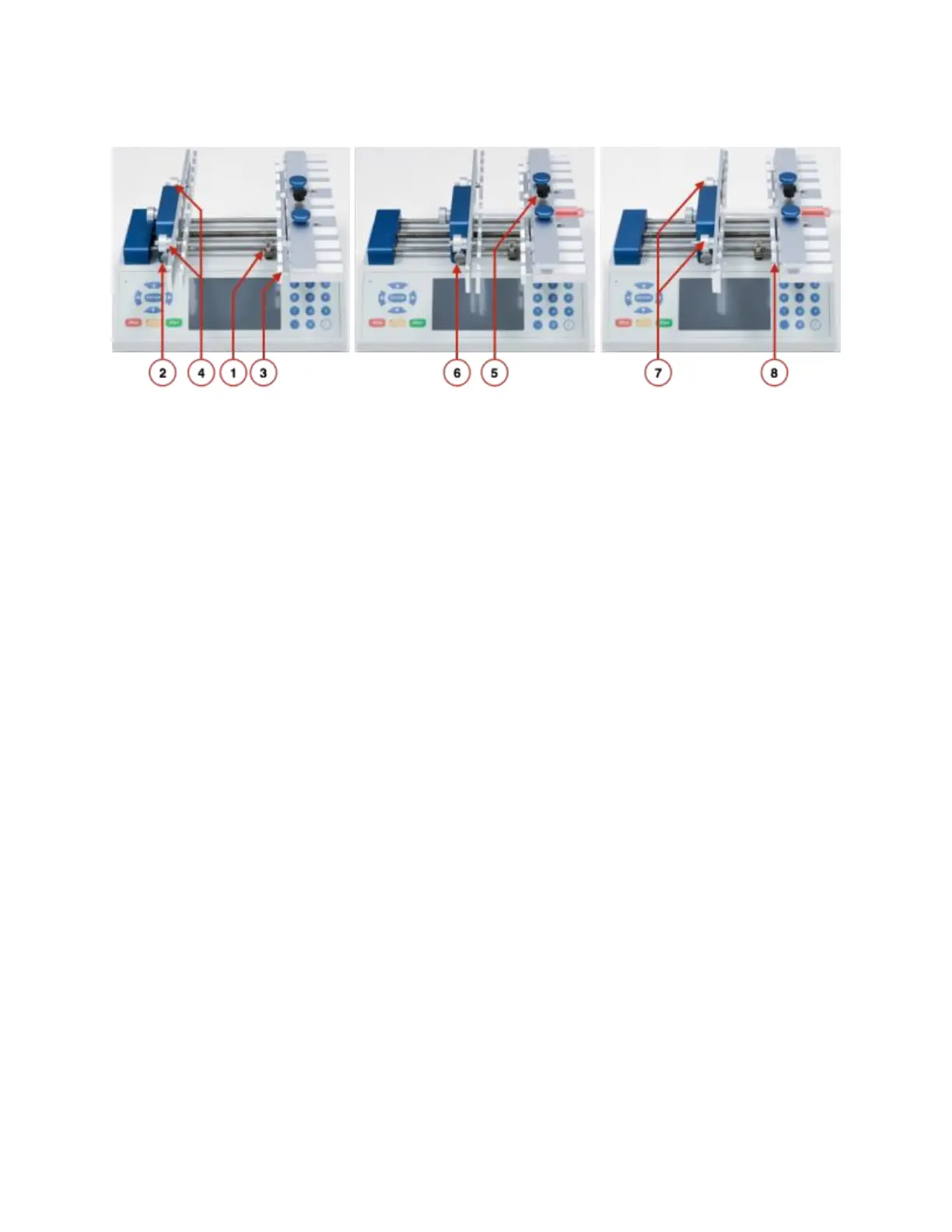

1. If necessary, move and tighten the infusion safety collar (see Adjusting the Safety
Collar).
2. While pressing in the block-release button, slide the pusher block all the way to the left.
3. Loosen the two wingnuts (underneath the rack) for the flange retaining bracket and
adjust the bracket such that the flange of the syringe barrels will fit in between.
4. Loosen the two bracket clamp knobs on the plunger retaining bracket and adjust the gap
such that the plunger cap of the syringe may fit.
5. Pull up on the spring-loaded syringe clamp bar and place a syringe in each of the
channels of the 10-channel syringe-holder block. Ensure that the flange of the syringe
barrel is flush against the edge of the syringe-holder block (in between the bracket and
the holder block). Slowly lower the syringe clamp bar to secure the syringe in place.
6. Press the lock-release button and slide the pusher block to the right until it is flush
against all of the syringe plungers. The plunger cap for the syringes should fit in the gap
between the bracket and the pusher block.
7. Tighten the bracket clamp knobs on the plunger retaining bracket to secure the syringe
plungers in place.
8. Move the flange retaining bracket flush against the flanges of the syringe barrels and
tighten the bracket clamp knobs to secure the syringe flanges in place.
