Fusion Series User Manual

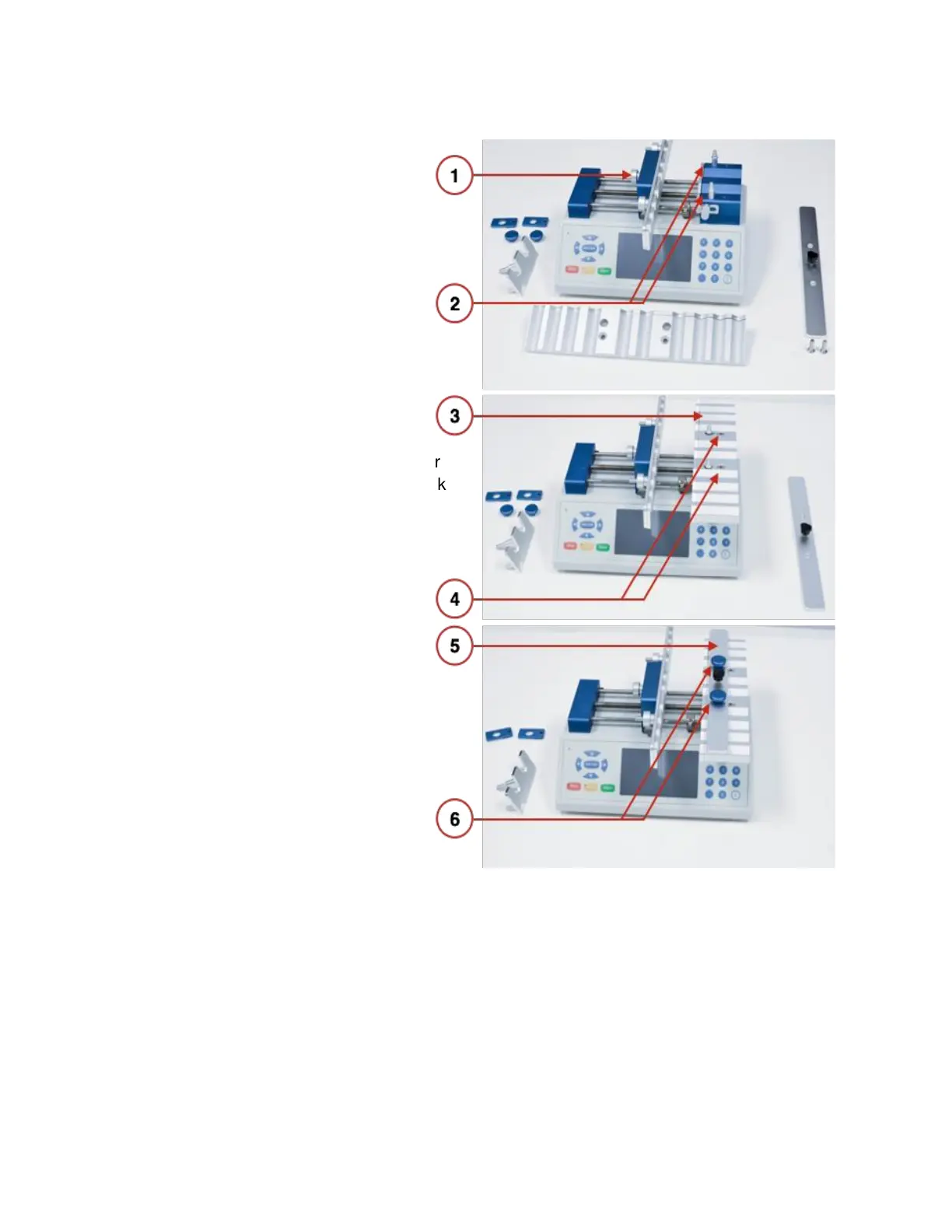

1. Completely unscrew the bracket
clamp knob for the plunger
retaining bracket and remove the
bracket. Replace the retaining
bracket with the 10-channel plunger
retaining bracket. Screw the
bracket clamp knob back on and
tighten to secure the 10-channel
plunger retaining bracket.
2. Completely unscrew the caps of the
spring-loaded syringe clamps and
remove the caps and clamps. Screw
on the clamp extenders where the
syringe clamp caps were.
3. Place the 10-channel syringe holder
over the original syringe holder block
(Note: the direction of the flange
retaining bracket should be facing
the pusher block). The extended
bolts for the spring-loaded
syringe clamps should go
through the two untapered holes
in the syringe holder.
4. Place the securing bolts for the
syringe holder in the two tapered
holes and tighten to secure the
syringe holder.
5. Place the 10-channel syringe clamp
over the top of the 10-channel
syringe holder. The extended bolts
for the spring-loaded syringe
clamps should go through the two
holes in the syringe clamp.
6. Screw on the blue syringe clamp caps on the extended bolts for the clamps.
