Indicator and operating elements CHLORIDE ACTIVE
GB - 12 V02OCT/01 945040.066

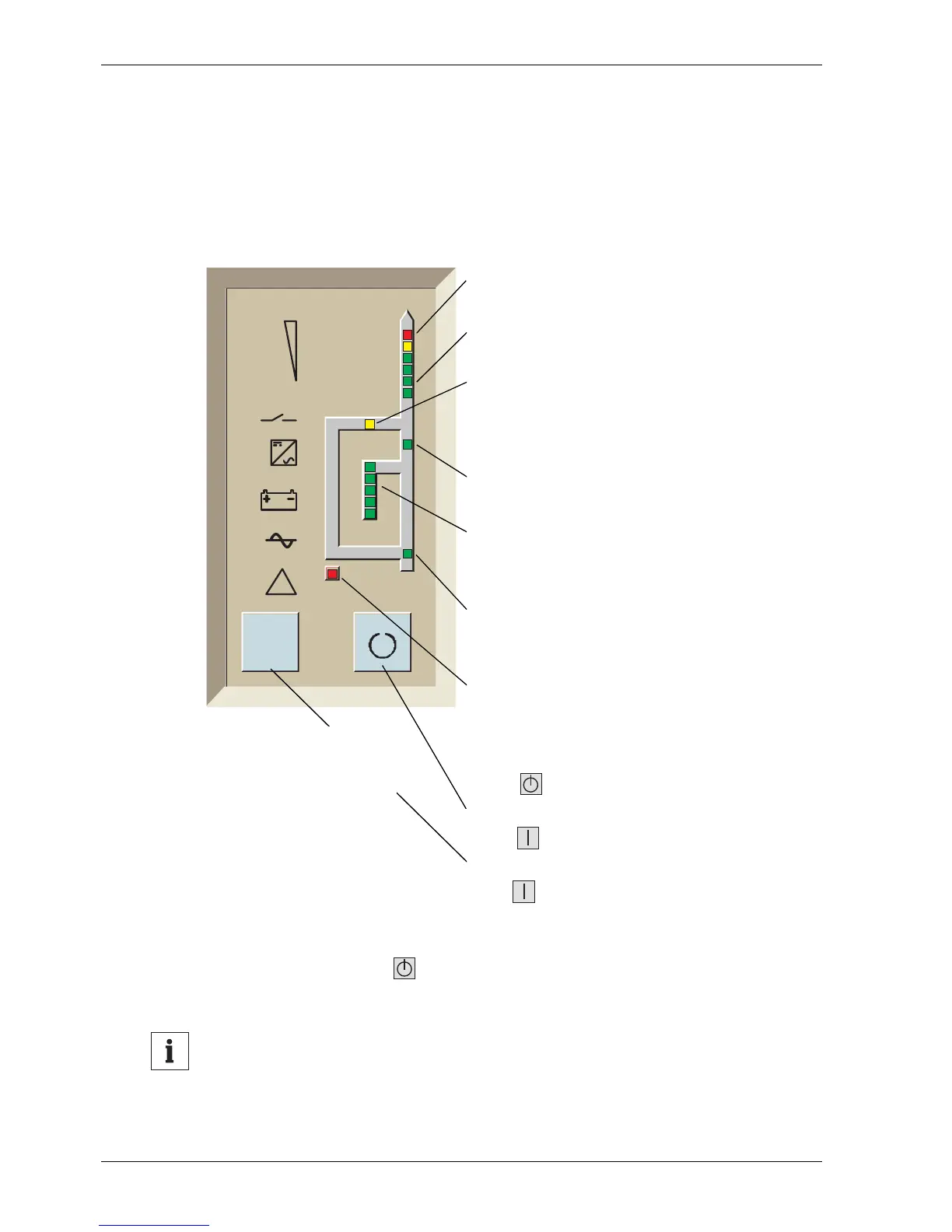

Indicator and operating elements
Front side
The OVERLOAD indicator illuminates if
the UPS is overloaded.
The LOAD LED strip displays the load sta-
tus of the UPS.
The BYPASS indicator illuminates when
the UPS delivers voltage supplied from
the mains supply via the bypass.
The INVERTER indicator illuminates
when the inverter is activated.
The BATTERY LED strip indicates the
charging state of the battery (normal oper-
ation).
The MAINS indicator illuminates when
normal mains voltage is present at the
UPS input.
The ALARM indicator illuminates when
the UPS is in a faulty state. An acoustical
warning signal is output at the same time;
this signal is reset when the UPS is
switched off.
The button switches the inverter off
and the bypass on.
The button switches on the inverter.
The inverter is activated upon activation of
the button. Following a delay time of
approx. 5 seconds, the BYPASS indicator extinguishes and the INVERTER
indicator illuminates.
Upon activation of the button, the inverter is blocked and is switched to
bypass. The UPS output carries voltage.
Notice
To trigger an action, the buttons must be pressed for at least 1 sec-
ond! (Acceptance of the input is confirmed acoustically)
