CHLORIDE ACTIVE Indicator and operating elements
945040.066 V02OCT/01 GB - 15
G
B
Rear side (rack-mounting devices)
The following figures show the UPS rack-mounting devices with the corre-
sponding battery extensions.
Notice
No battery extensions can be connected to the ACTIVE 700-19
device.
Models ACTIVE 700-19 and ACTIVE 1000-19
The following legend applies to figures Fig. 7 and Fig. 8:
(1) Mains connection (AC INPUT)
(2) Output sockets (AC OUTPUT)
(3) Input fuse
The fuse must only be changed when the device is switched off and
the mains connection cable disconnected.
(4) Interface COM 3
(5) Interface USB
(6) Interface EXT. OUTLETS CONTROL
(7) Fan
(8) COM interface (optional)
(9) Nameplate
(10) Battery-extension cable (not with ACTIVE 700-19)
(11) Connection for battery extension (not with ACTIVE 700-19)
(12) Battery switch (not with ACTIVE 700-19)

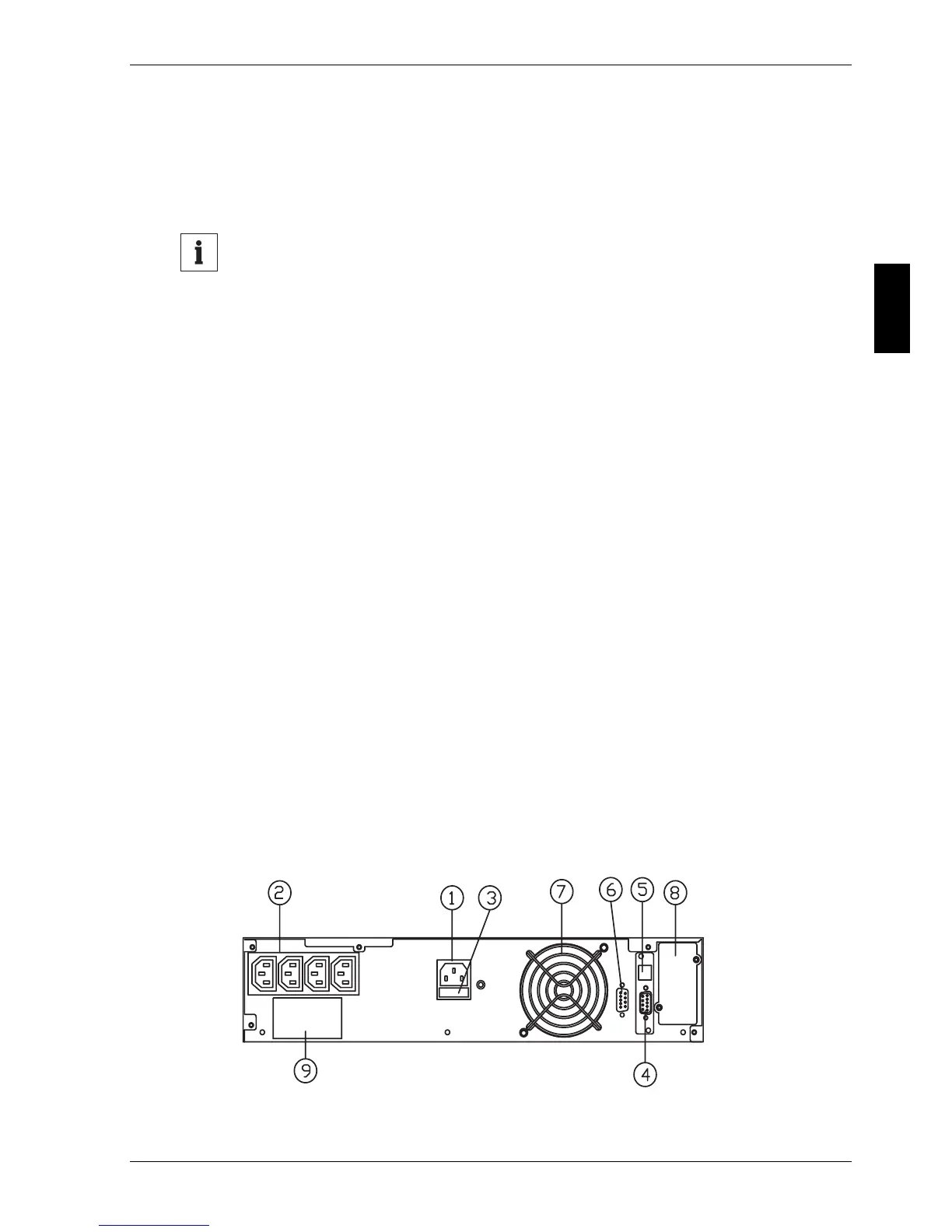

Fig. 7: Rear side ACTIVE 700-19
ACTIVE 700-19
