Installation and commissioning CHLORIDE ACTIVE
GB - 20 V02OCT/01 945040.066
Mechanical fixing:
Notice
The devices must be fixed in the cubicle on both sides. Moreover, the
front plate of the device must be screwed to the cubicle. The device
must only be installed in horizontal position.
Secure both sides of the device in the cubicle.
If necessary, use the included installation rails. When used, these allow the device to
be easily inserted into and pulled out of a 2 HU installation slot.

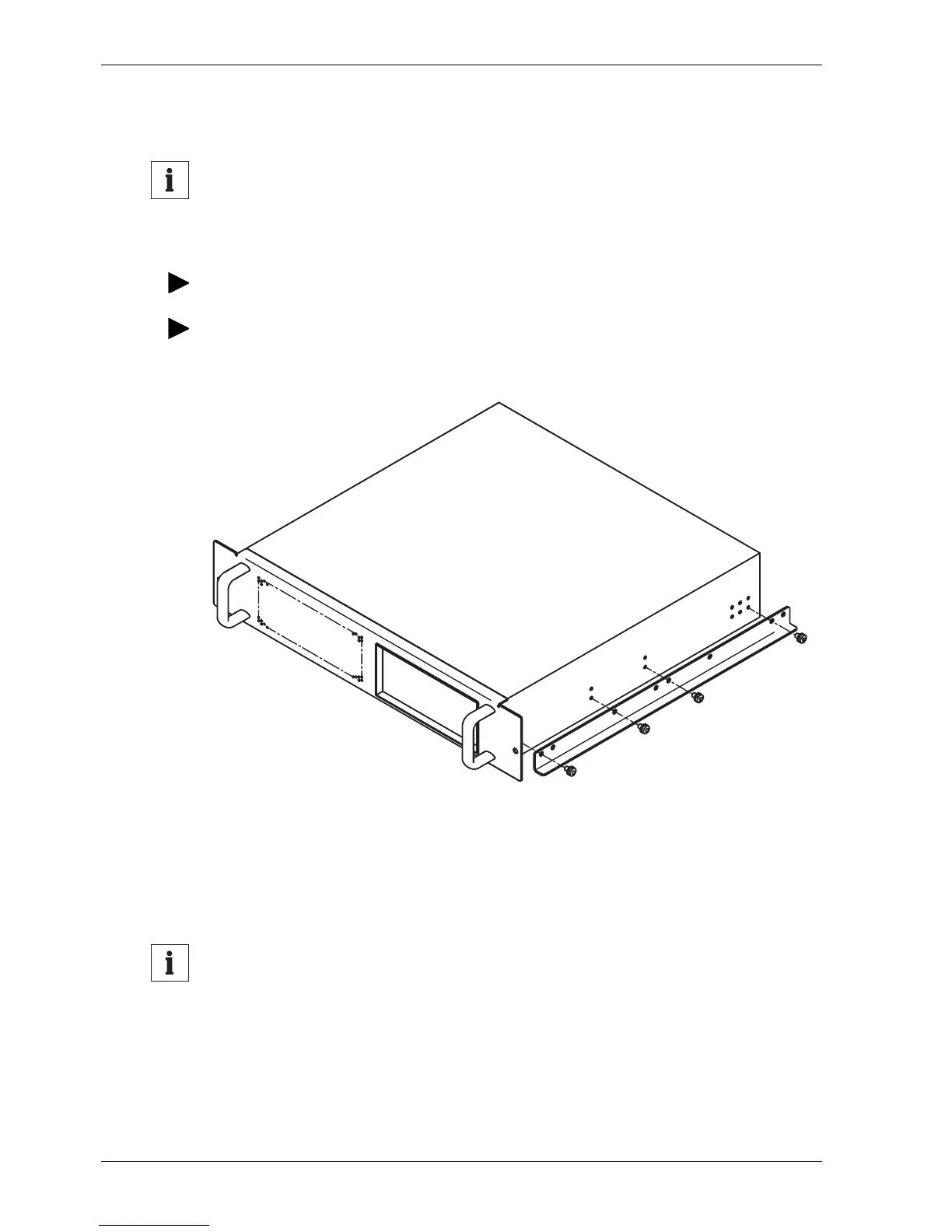

Fig. 11: Installing the slide rails on the UPS or battery extension
Slide rails for the installation in cubicles are available as accessories for var-
ious cubicle systems. To fix the device in the horizontal position, the front
plate has to be fixed to the 19-inch cubicle at the indicated points on both
sides of the device.
Notice
It is not permissible to fix the device only at the front plate. This may
damage the device and/or other mounted devices.
