TROUBLESHOOTING WELDSKILL
200AC/DC INVERTER
Manual 0-5206 6-9 Troubleshooting

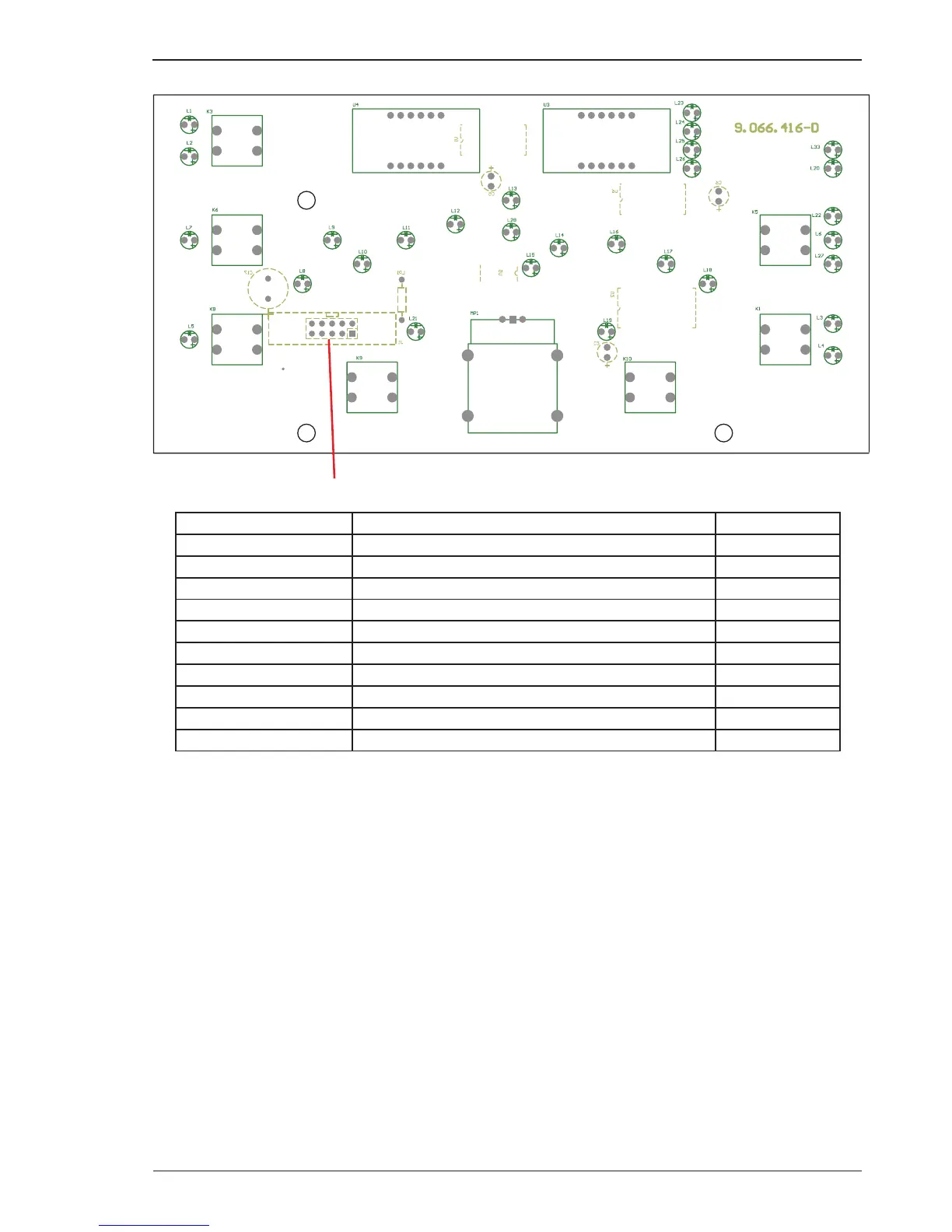

6 Display PCB
J1 (10 pin)
A-11426
J1 Header Pin Pin function signal
1 +5 VDC 5 VDC
2 Serial interface
3 Serial interface
4 Serial interface
5 Serial interface
6 Serial interface
7 Serial interface
8 Serial interface
9 Serial interface
10 0 VDC 0 VDC
Table 6-20: J1 Header pin function (connects to J2(JB) header on main control PCB)
