ASSEMBLY PROCEDURE WELDSKILL 200AC/DC INVERTER
Manual 0-5206 8-1
Assembly Procedures

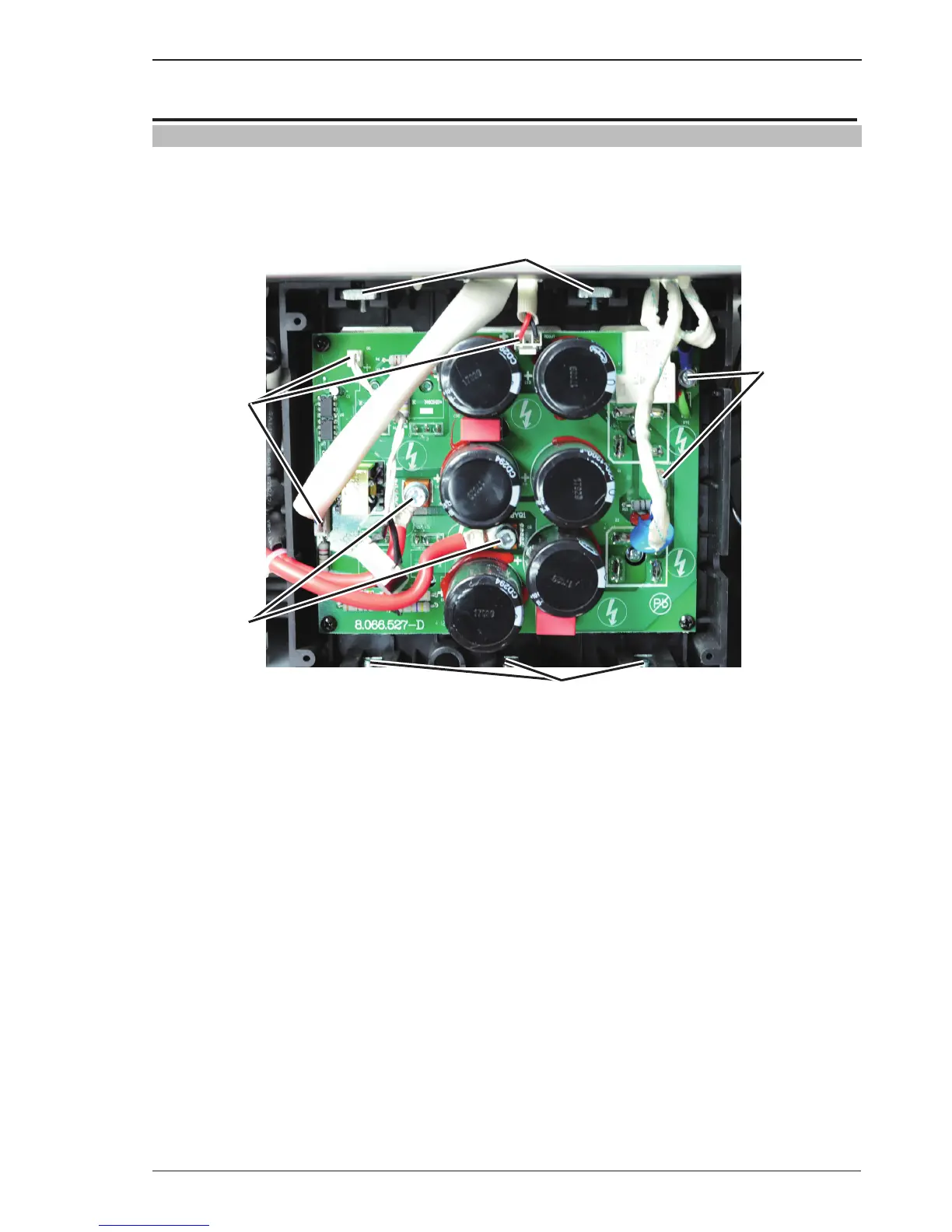

8.01 Installing Main Power PCB1
1. Install main PCB1 assembly screws
2. Install wire screws.
3. Plug harness into connectors.
1
2
2
3
1
A-11440
SECTION 8:
ASSEMBLY PROCEDURES
