CIGWELD WeldSkill 200AC/DC - Main Power PCB2 Removal

WELDSKILL 200AC/DC INVERTER DISASSEMBLY PROCEDURE
Disassembly Procedure 7-10 Manual 0-5206
7.12 Main Power PCB2 Removal
!
Read and follow safety information in Section 6.02 before proceeding with disassembly

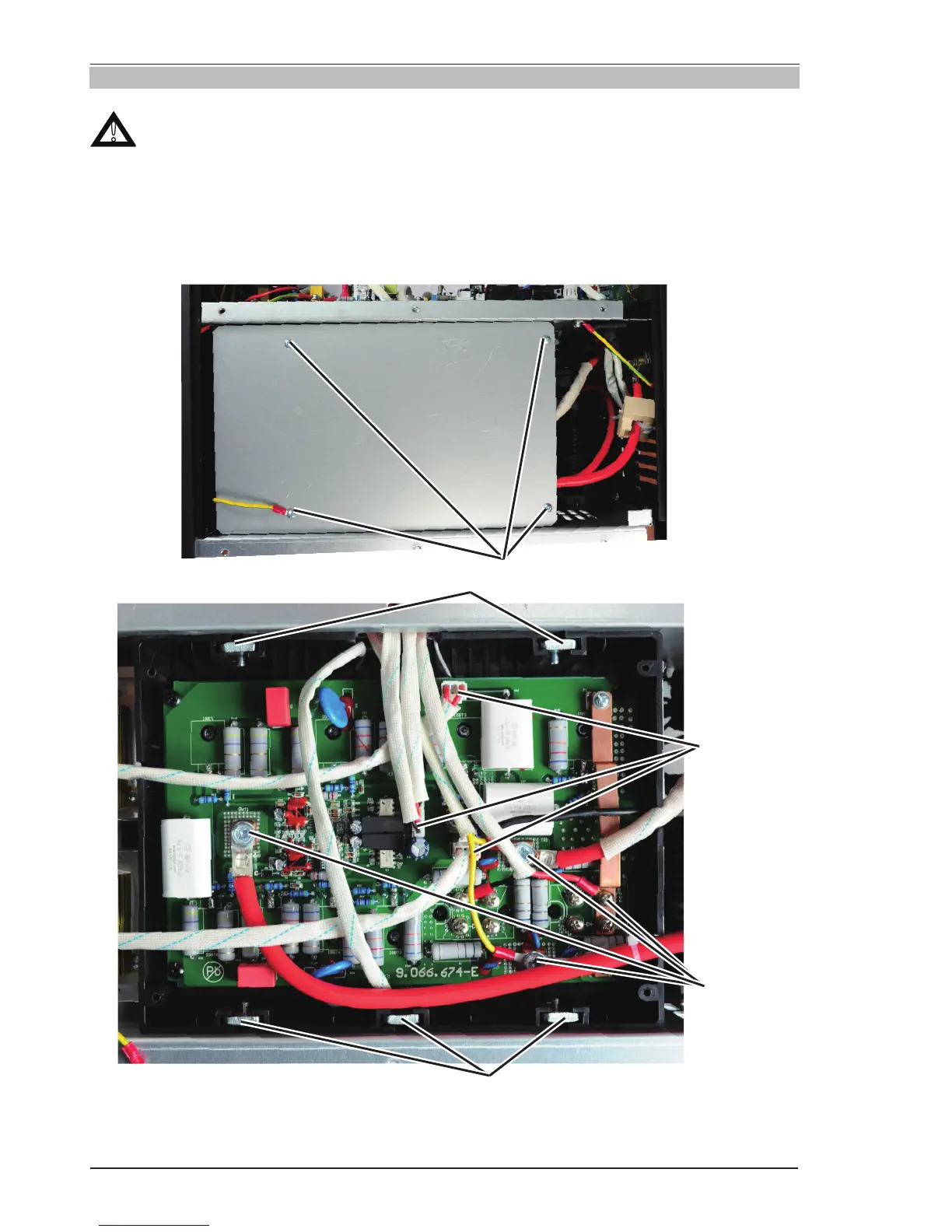

1. Remove 4 screws.
2. Remove 5 screws.
3. Remove wire screws
4. Disconnect harness from connectors.
1
3
4
2
2
2
