CIGWELD WeldSkill 200AC/DC - Auxiliary Power Supply PCB2 Removal

Manual 0-5206 7-3 Disassembly Procedure
DISASSEMBLY PROCEDURE WELDSKILL 200AC/DC INVERTER
7.04 Auxiliary Power Supply PCB2 Removal
!
Read and follow safety information in Section 6.02 before proceeding with disassembly

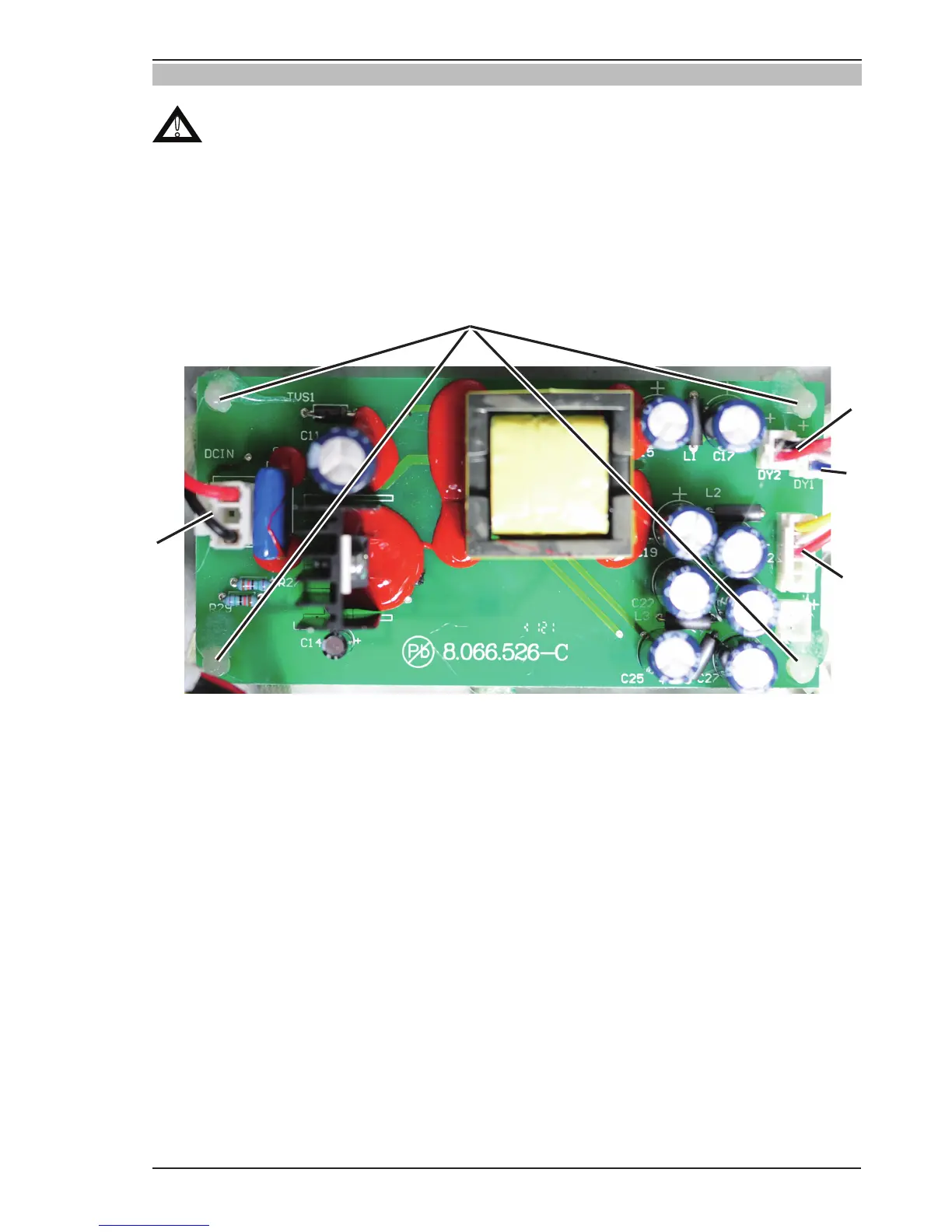

1. Disconnect DCIN harness from DCIN Connector.
2 Disconnect DY2 harness from DY2 connector.
3. Disconnect DY1 harness from DY1 connector
4. Disconnect SOURCE/FJ harness from SOURCE/FJ connector.
5. Remove glue then pull out board.
5
2
3
4
1
A-11433
