Assembly Procedures
8-2 Manual -5206
WELDSKILL 200AC/DC INVERTER ASSEMBLY PROCEDURES
8.02 Installing Main Power PCB2

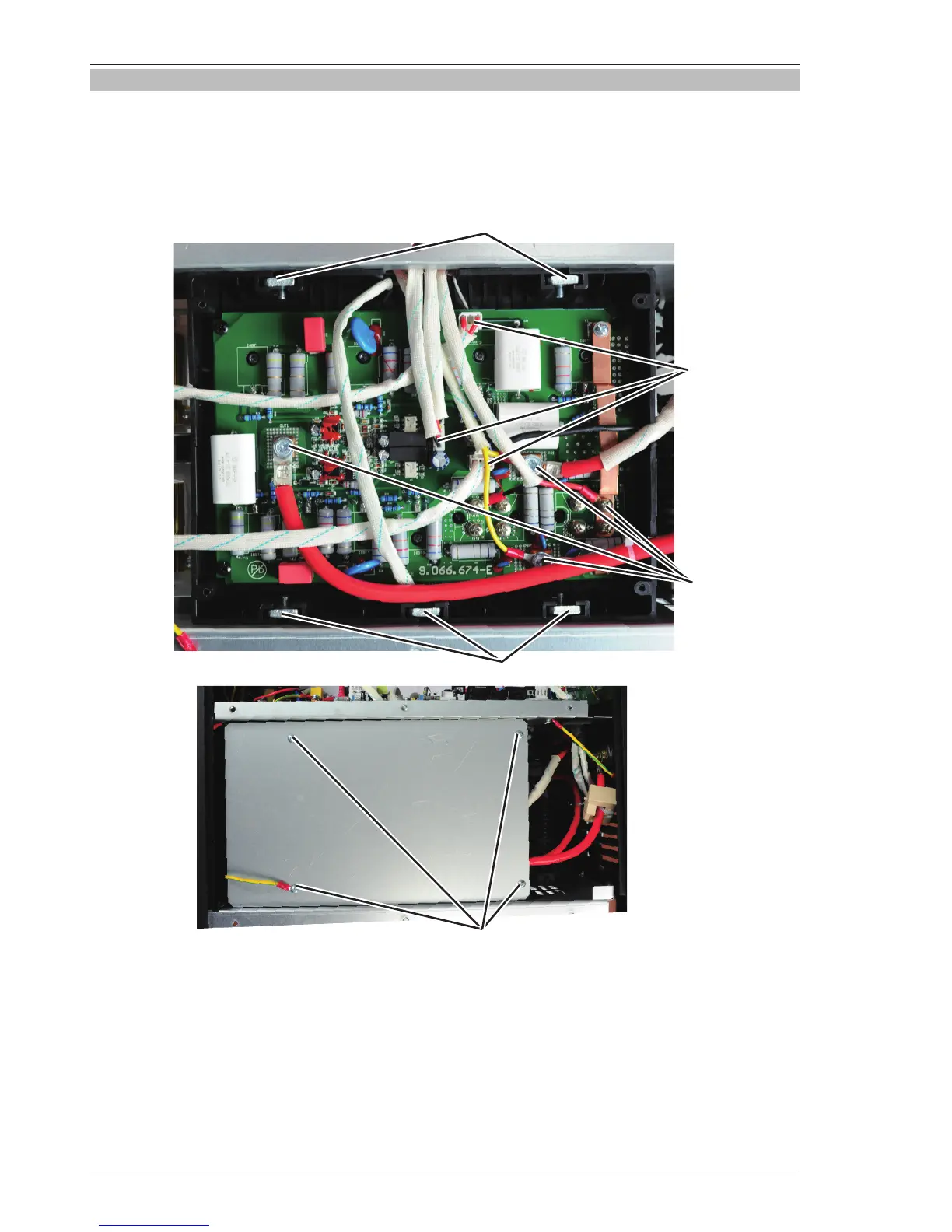

1. Install 5 screws.
2. Install wire screws.
3. Plug harness into connectors.
4. Install base plate.
1
3
4
2
2
1
