CIGWELD WeldSkill 200AC/DC - Installing PCB3; Installing Auxiliary Power Supply PCB2

Assembly Procedures 8-6 Manual -5206
WELDSKILL 200AC/DC INVERTER ASSEMBLY PROCEDURES

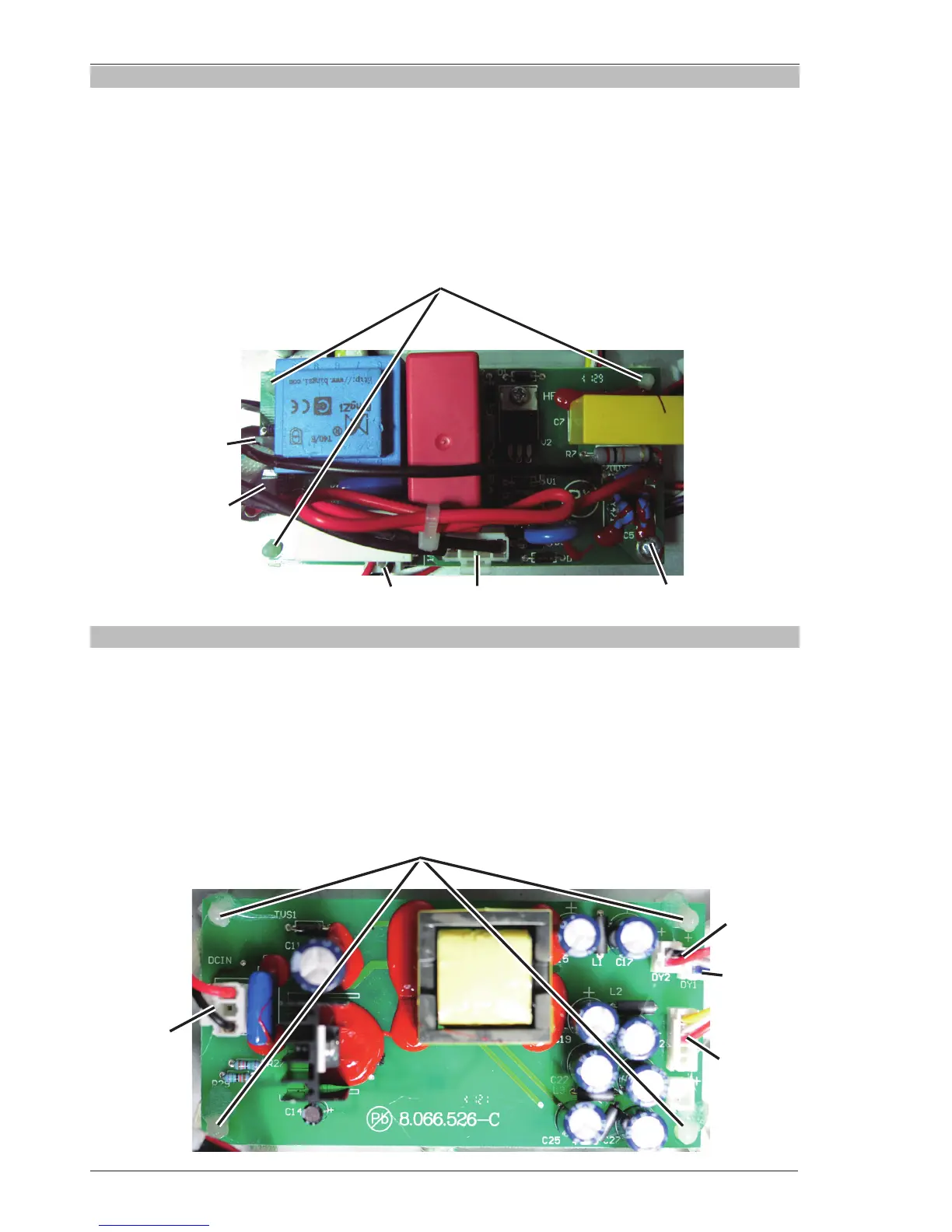

8.07 Installing PCB3
1. Insert plastic stud onto PCB3 board.
2. install screw.
3. Plug harness into HF connector.
4. Plug harness into SOU connector.
5. Plug harness into INPUT connector.
6. Plug harness into OUTPUT connector.
6
3
2
1
5
4
8.08 Installing Auxiliary Power Supply PCB2
1. Install four studs to PCB2.
2. Plug harness into the DY2 connector.
3. Plug harness into the DY1 connector.
4. Plug harness into the Power/FJ connector.
5. Plug harness into the DCIN connector.
6. Put glue on four Stud.
5
2
3
4
1
