CIGWELD WeldSkill 200AC/DC - PCB4 Removal; PCB5 Removal

Manual 0-5206 7-5 Disassembly Procedure
DISASSEMBLY PROCEDURE WELDSKILL 200AC/DC INVERTER
7.06 PCB4 Removal
!
Read and follow safety information in Section 6.02 before proceeding with disassembly

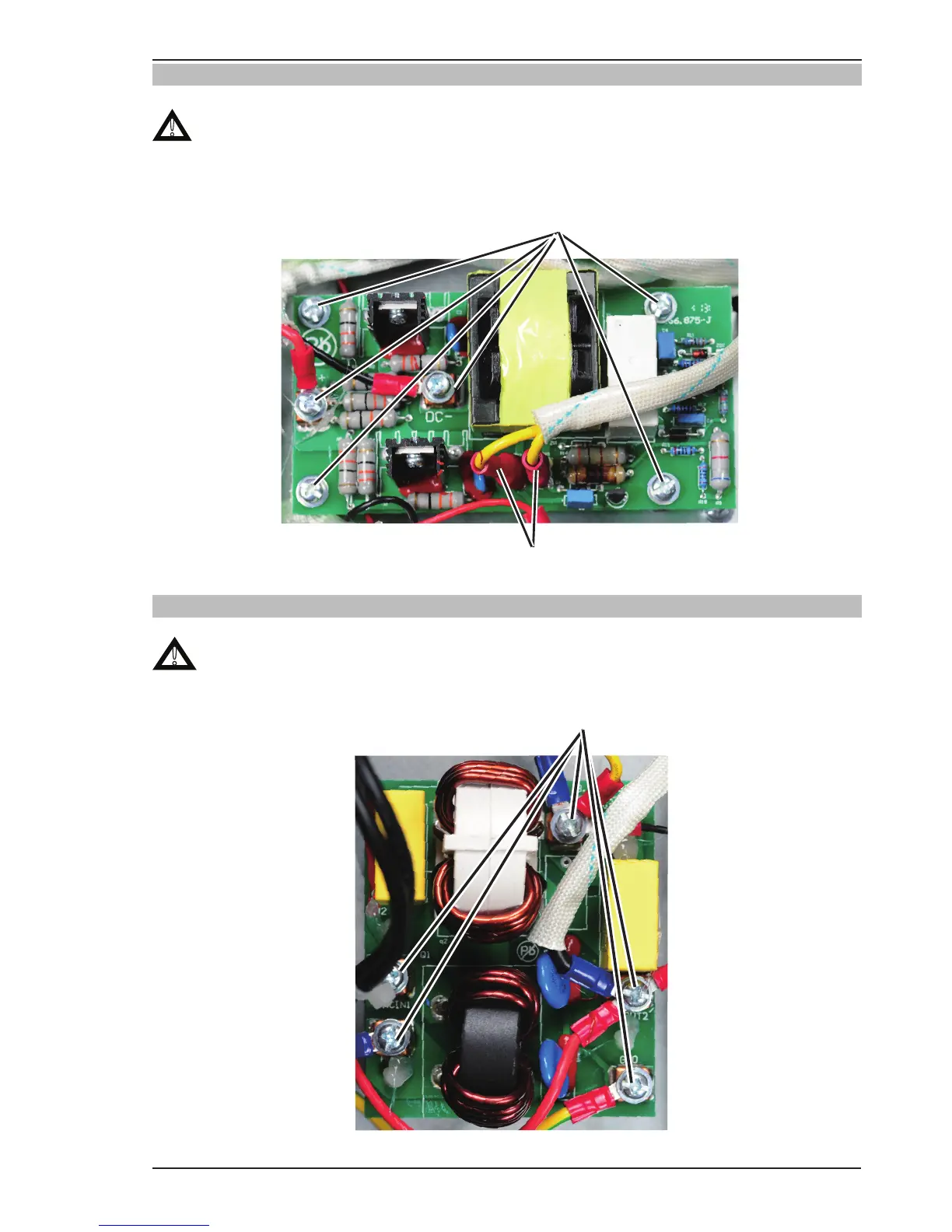

1. Remove 6 screws.
2. Disconnect wire from terminals.
1
2
A-11435
7.07 PCB5 Removal
!
Read and follow safety information in Section 6.02 before proceeding with disassembly
1. Remove 5 screws.
1
A-11436
