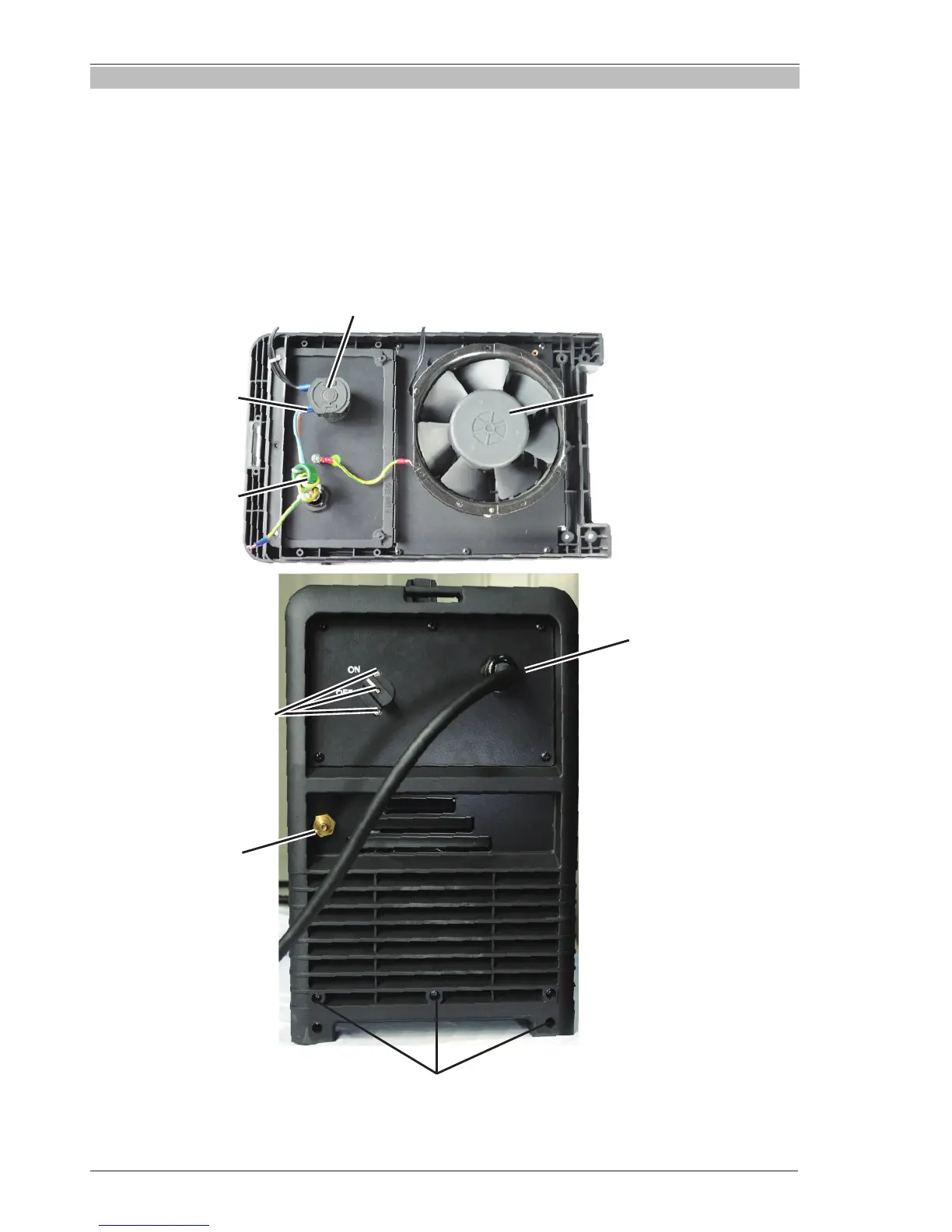

8.04 Installing Rear Panel
1. Reinstall ON/OFF Switch. install 3 screws.
2 Plug power supply cable to swtich connector.
3. Reinstall ferrite core into ground wire.
4. Reinstall fan.
5. Reinstall power cord and screw.
6. Reinstall gas inlet.
7. Reinstall screws.
1
3
4
2
7
5
1
6
A-11445
