CIGWELD WeldSkill 200AC/DC - Back Panel Removal

WELDSKILL 200AC/DC INVERTER DISASSEMBLY PROCEDURE
Disassembly Procedure 7-8 Manual 0-5206
7.10 Back Panel Removal
!
Read and follow safety information in Section 6.02 before proceeding with disassembly

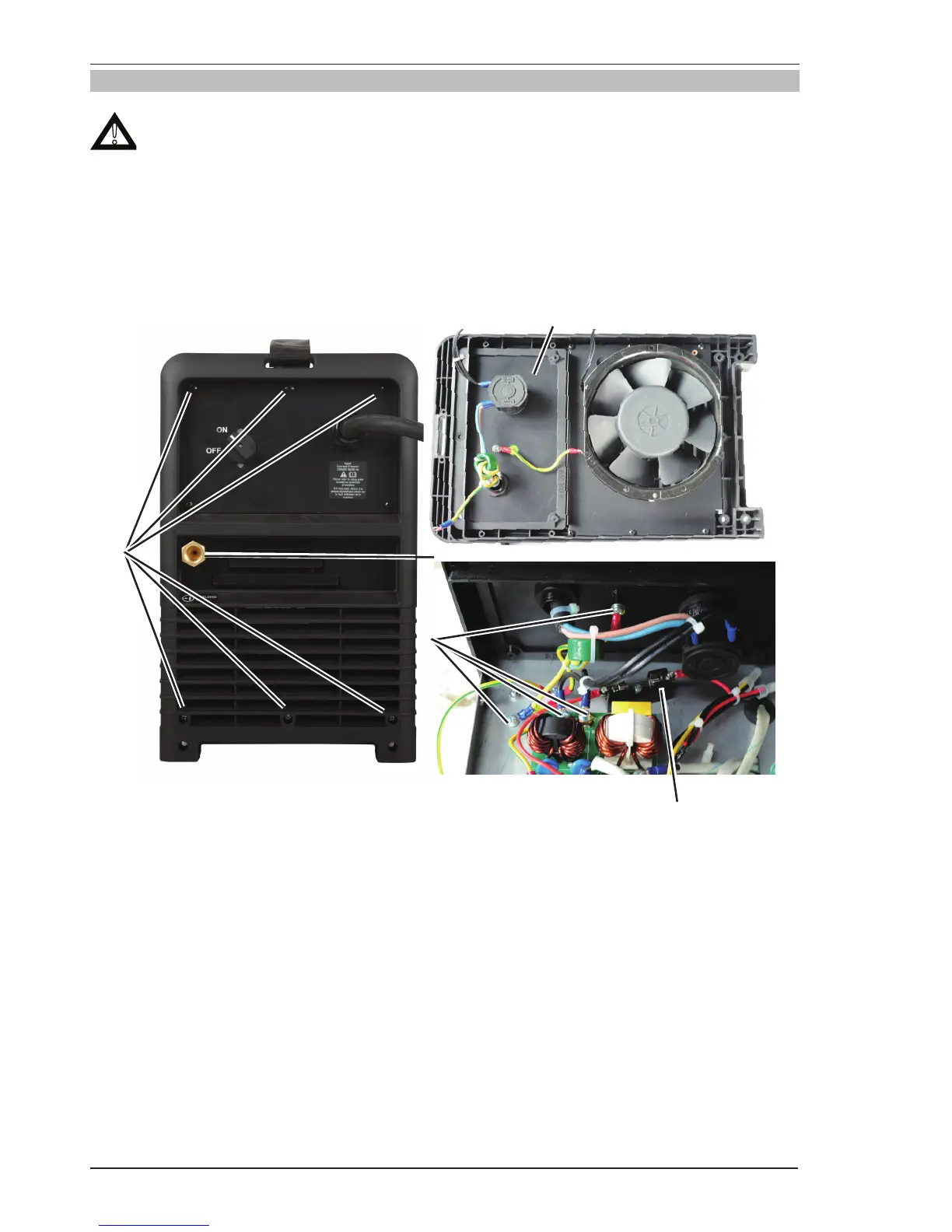

1. Remove 6 screws on rear panel.
2. Remove ground screw and input wire screw.
3. Remove gas inlet.
4. Back of rear panel.
5. Note that fuse may not be fitted in all units.
1
3
2
4
A-11439_AC
5
