3-2012
Plus 42 - 45 - 50 - 55
19

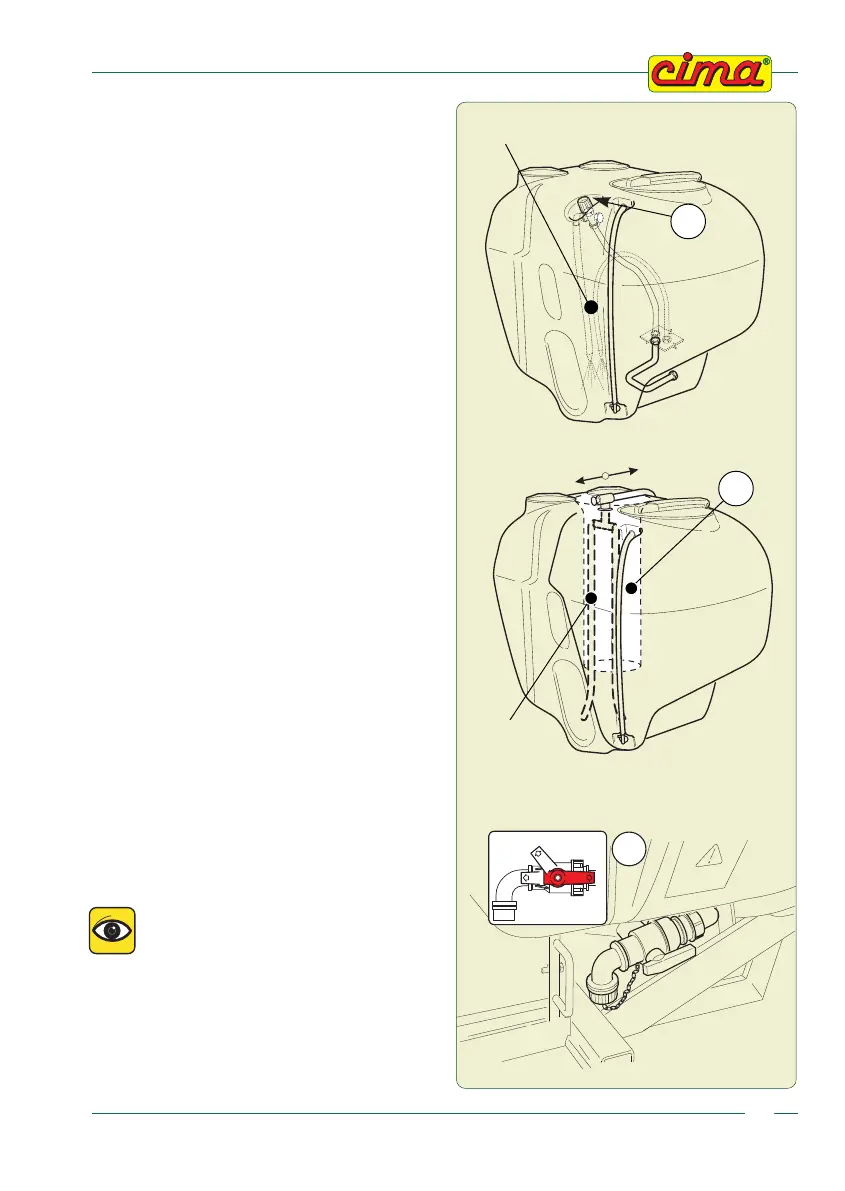

P1. TANK
Tanks utilised:
polyethylene tanks of 300, 400 and 600 litre
capacity.
Each tank is made up of:
— tank main filler spout of 355 mm diameter, with
collapsible lid, breather and labyrinth seal, for
the filling with spraying products. Plastic cup-
like filter: 302 mm external diameter, height
254 mm with powder mixing device (for
versions in which this envisaged);
— supplementary tank filler with 250 mm diam-
eter screw-type lid, for filling with clear
water and plastic cup-like filter: external
diameter 204 mm, height 240 mm;
— transparent level indicator external pipe with
graduated scale;
— hydraulic agitation system connected to the
regulator (P5) and to the pump (P4).
— pneumatic agitation, connected to the piston
tap found above the tank and connected
through piping to the air intake located on the
fan casing.
A = OPEN
C = CLOSED
P2 - 3-WAY LEVER TAP A WITH
DISCHARGE FITTING
Fixed to tank (P1) and connected to the suction
piping (T1).
With the machine in operation the
tap’s lever must face towards the
suction piping (position “a”).
By positioning the lever towards
the drain plug (position “c”), total
draining of the tank is obtained.
In order to carry out the complete
discharge of any liquid remaining in
the pump and pipes, set the tap to
position “b”.
P22. HAND WASHING TANK
Incorporated polyethylene 17 litre capacity hand
wash tank, with external service tap; opening
though a 255 mm diameter screw lid.
HYDRAULIC
AGITATION
HAND WASHING
TANK
PNEUMATIC
AGITATION
00075
00188
00019
P22
P5
