Remove the filler cap before shifting the drain cock lever. When the draining has
taken place, return the lever to the working position (position “a”) and screw the
cap back on. These operations must be carried out with the machine stopped.

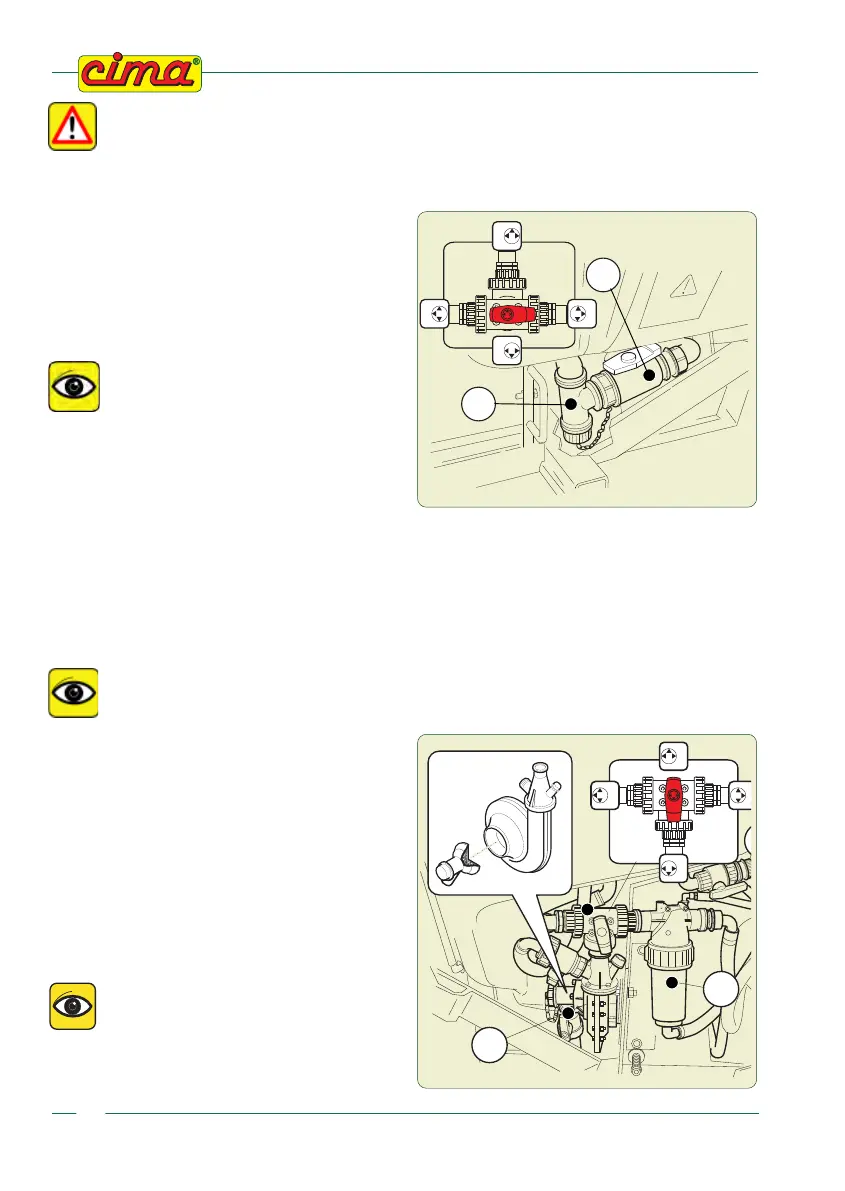

P16 - DISCHARGE CONNECTION WITH PLUG (Versions with rinsing tank)
Connected to the spray-line rinsing tank trough
suction piping (T7) and fixed to rinsing tap (P15).
- By positioning the lever in position “c”, drai-
ning of the tank is obtained.:
- In order to carry out the complete discharge
of any liquid remaining in the pump and pipes,
set the tap (P15) to position “d”.
Remove the filler cap before shifting
the drain cock lever. When the
draining has taken place, return the
lever to the working position
(position “a”) and screw the cap
back on. These operations must be
carried out with the machine
stopped.
P4 - CENTRIFUGAL PUMP
Fixed to the left-hand side of the machine, it is connected to the tank through the pipeline (T1), to the
three-way faucet (P6) and to the hydraulic agitation system for the mixture. The pump is provided by
the suction side of a filter to prevent the accidental entry of foreign bodies in the pump body, such a
possibility does not constitute a hazard and can only cause damage to the impeller shown by a drop
in pressure reported by gauge.
THE PUMP MUST NEVER RUN DRY
P6 - 3-WAY LEVER TAP
It is mounted on the centrifugal pump (P4) and is
connected to the body of the filter (P8).
When the tap’s lever is set in position:
a. WORK (Vertically, downwards)
The mixture is sent both to the filter (P7) and the
tank (P6) through the pipelines (T2) and (T9), for
the hydraulic agitation of the mixture. In this
position, by opening the distributor (P9) (or E9),
the mixture is sent to the sprayhead.
TREATMENTS MUST BE CARRIED OUT
ONLY WITH THE TAP IN THIS POSITION.
