E8. TRANSDUCER OF THE DELIVERY PRESSURE
( E.P.A. versions)
In the E.P.A. versions, the pressure transducer is connected to the delivery control computer. (see the
specific manual).
P12. POWDER MIXER LEVER TAP (For versions in which his envisaged)
Positioned on the pipe (T6), between the filter (P7) and the mixer (P13) in corrispondenza dell’ingresso
della tubazione nel serbatoio principale (P1); it can assume the following positions:

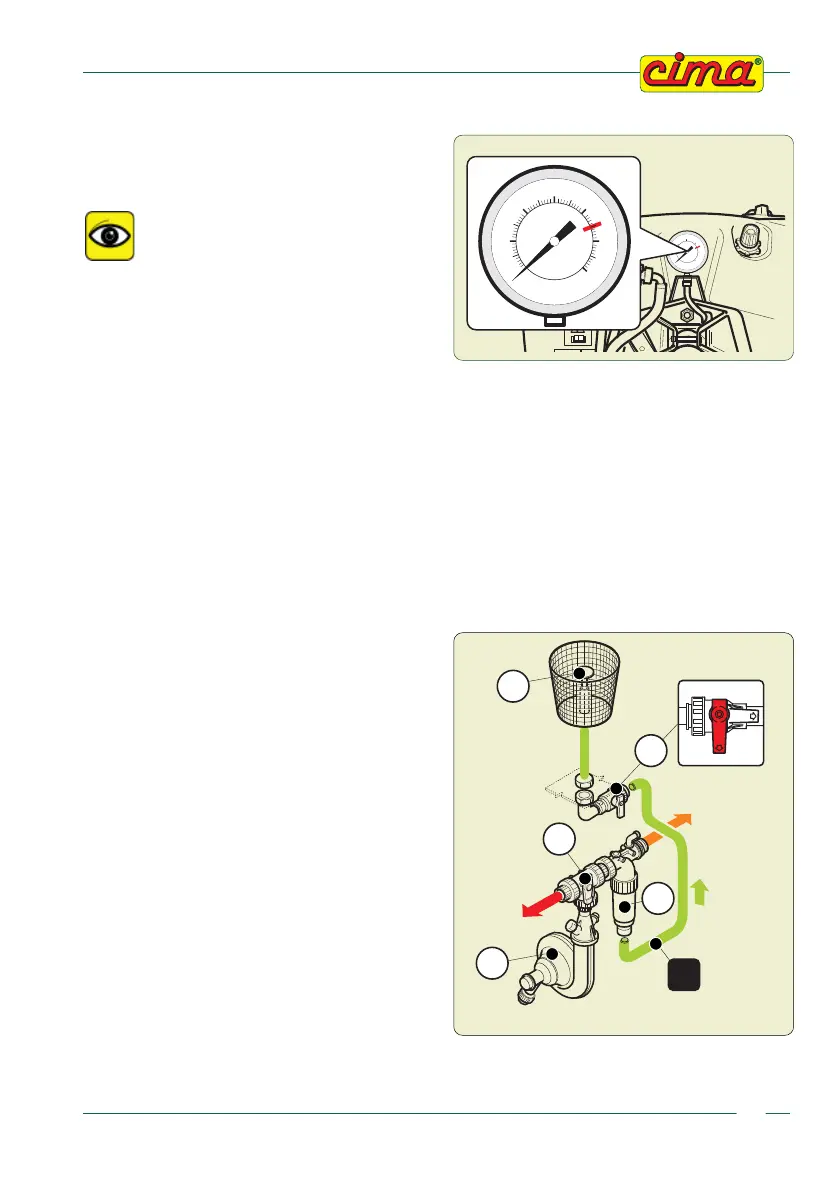

P8. GAUGE
Glycerine-dipped, with dial from 0 to 6 Kg/cm
2
(atmosphere) – adjustments scale of 1/10 of
atmosphere, 100 mm diameter, class 1,6%.
Set the working pressure, by acting on
the regulator hand grip (P8), keeping
the (P9) or (E9) opened.
50 Pl
0
1
2
3
4
6
5
kg/cm
2
kg/cm
2
0
1
2
3
4
6
5
kg/cm
2
kg/cm
2
00968
P6
P4
P7
T6
P13
a
c
P12
a - Open
From the centrifugal pump (P4), the liquid is sent
to the mixer (P13) positioned on the bottom of the
cup-like filter of the main filler (BP).
c - Closed
P13. POWDER MIXER
It makes the mixing of the powdery products
during the filling of the tank. It is mounted on the
basket filter of the main filler (BP) and it is
connected to the pump (P4) by the pipe (T6).
That device consists of a fine mesh-nylon basket,
which is placed inside the tank main filler (BP).
The basket is equipped with a mushroom outlet,
through which the filling water coming from the
pump (P4) streams out. Thanks to that system,
the powder products contained inside the basket
get more gradually dissolved, and the building of
crumbs and thickenings can be avoided.
