Plus 42 - 45 - 50 - 55
3-2012
24

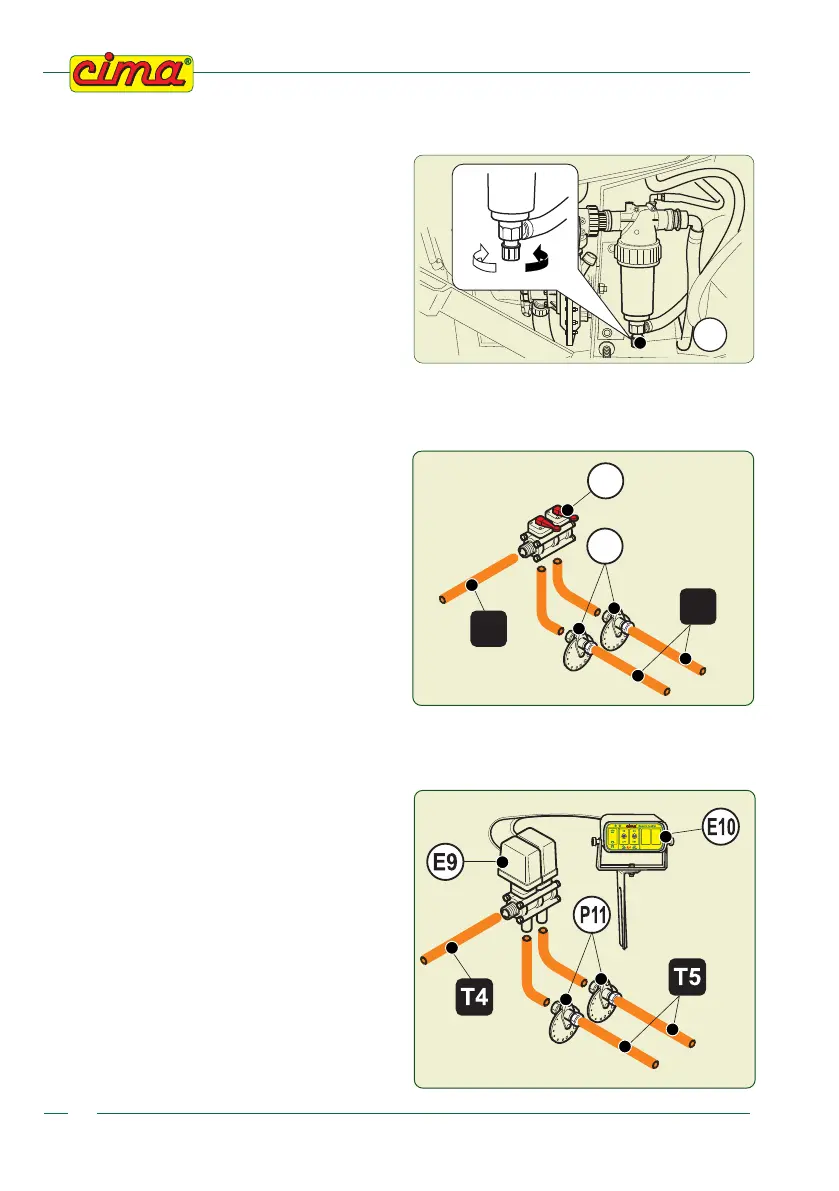

P25. SELF-CLEANING FILTER FAUCET (for the version where foreseen)
It is placed in the lower part of the filter body (P7)
and connects it, through the pipeline (T6), to the
tank.
a - Open, filter cleaning
The mixture coming from the pump (P4) passes
through the filter (P7) removing residual product
that can cause the obstruction of the filter.
c - Closed, treatment
00215
00970
P9. MANUAL DISTRIBUTOR WITH 2 LEVER-OPERATED TAPS
It connects the feeding pipe (T4) to the distribu-
tion piping (T5). It remote-controls the closing and
opening of the pulverising. The mount bracket,
supplied with the machine, must be secured to
the tractor within the driver’s reach. When the
machine is not hitched to the tractor, it must be
placed on the forward part of the sprayer’s frame.
Each tap permits the spraying from a single side
of the head: to the right and to the left respectively.
They are open when the levers are set in the
vertical position.
They are closed when the levers are horizontal.
00216
E9. ELECTRICAL DISTRIBUTOR WITH TWO SOLENOID VALVES
(for the version where foreseen)
It is connected with the feeding pipe (T4), the
distribution pipes (T5) and the electrical unit (E10),
which is fastened on the tractor. The solenoid
valves open and close themselves, according
with the action carried out on the electrical control
unit switches.
In the E.P.A. versions, the controls of the cross
section solenoid valves are situated on the electro-
nic control unit (see specific manual).
