CipherLab 1504 User Manual
4
of 1
of 1 rating
217 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
88
Enter Setup
1504 Barcode Scanne
r
User Guide

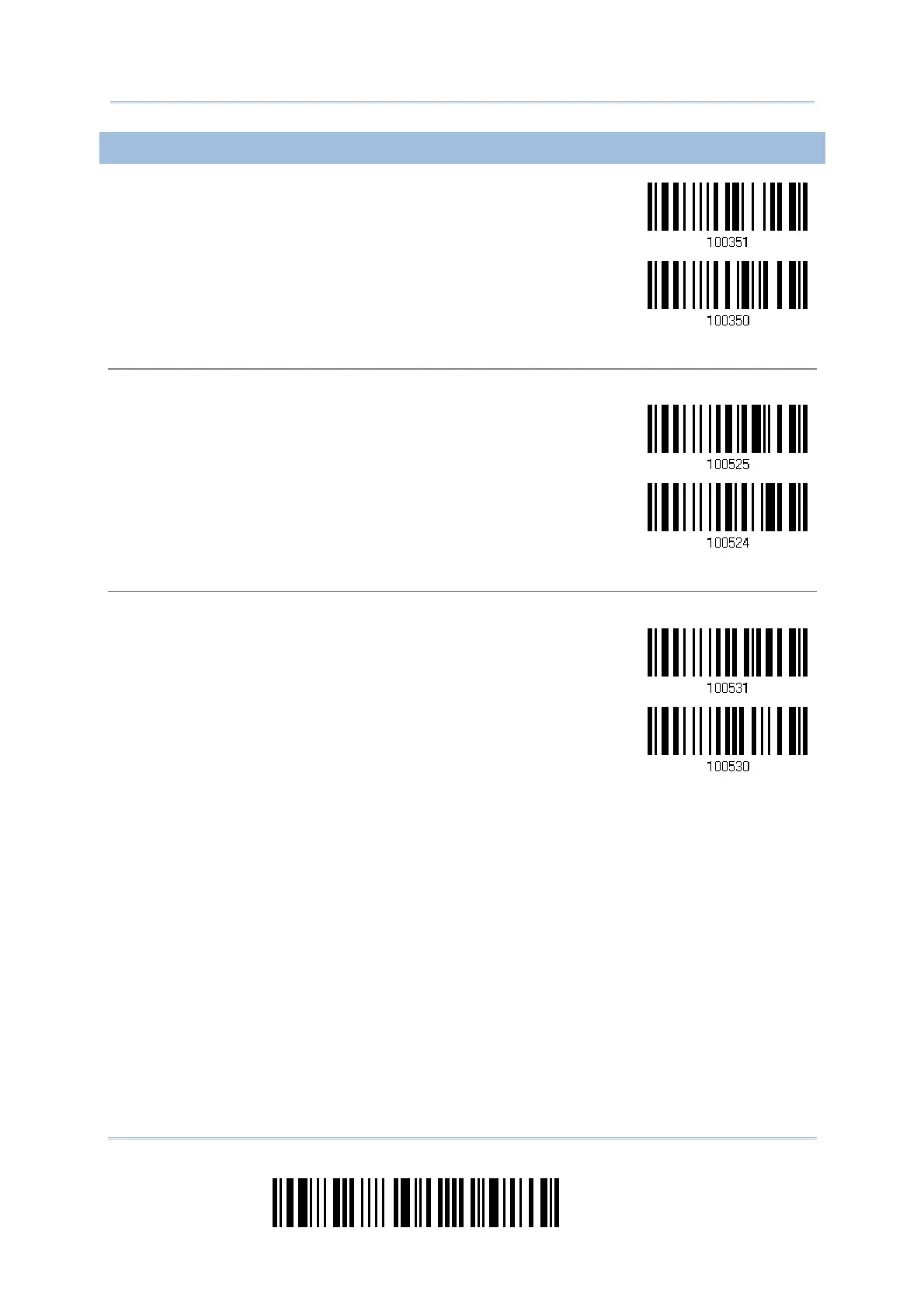

3.13.4 GS1 DATABAR LIMITED (RSS LIMITED)
Enable RSS Limited
(Group III)
*Disable
Transmit Code ID
Decide whether to include the Code ID
in the data being transmitted.
*
Transmit
RSS Limited Code ID
Do Not Transmit
Transmit Application ID
Decide whether to include the Appl
ication ID ("
01
") in the data being transmitted.
*
Transmit
RSS Limited
Application ID
Do Not Transmit
99
101
